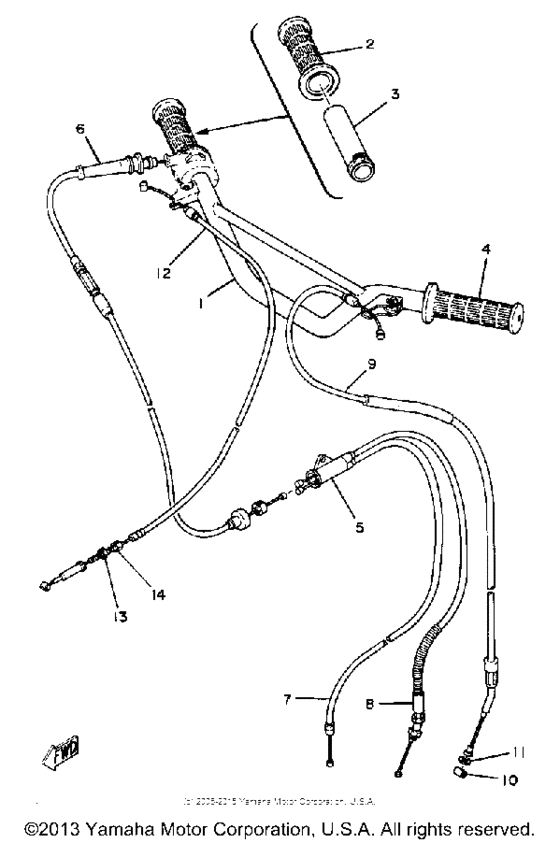

Handlebar-cable Diagram Yamaha MX
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 80
- Model
- MX80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
367-26111-03-00
Handlebar
|
367-26111-03-00 |
— | ||
|
2
|
2
462-26242-00-00
Grip (R.h.)
|
462-26242-00-00 |
— | ||
|
3
|
3
434-26243-00-00 Tube, Throttle Guide |
434-26243-00-00 |
from US $8.93 |
||
|
4
|
4
462-26241-00-00
Grip (L.h.)
|
462-26241-00-00 |
— | ||
|
5
|
5
4U1-26261-00-00 Connector, Cable |
4U1-26261-00-00 |
from US $7.08 |
||
|
6
|
6
367-26311-02-00 Cable, Throttle 1 |
367-26311-02-00 |
from US $45.04 |
||
|
7
|
7
367-26312-01-00
Cable, Throttle 2
|
367-26312-01-00 |
— | ||
| replacements | |||||
|
7
|
7
336-26312-00-00
Cable, Throttle 2
|
336-26312-00-00 |
— | ||
|
7
|
7
3T2-26312-00-00
Cable, Throttle 2
|
3T2-26312-00-00 |
— | ||
|
8
|
8
367-26321-02-00
Cable, Pump
|
367-26321-02-00 |
— | ||
|
9
|
9
367-26335-02-00 Cable, clutch |
367-26335-02-00 |
from US $64.42 |
||
|
10
|
10
164-26363-00-00 End, Cable |
164-26363-00-00 |
from US $3.54 |
||
|
11
|
11
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
11
|
11
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
11
|
11
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
12
|
12
367-26341-01-00 Cable, Brake |
367-26341-01-00 |
from US $47.33 |
||
|
13
|
13
90179-06143-00 Nut, Spec''l Shape |
90179-06143-00 |
from US $3.26 |
||
|
14
|
14
90123-06011-00 BoltBolt (109-26345-00) |
90123-06011-00 |
from US $8.08 |
||
