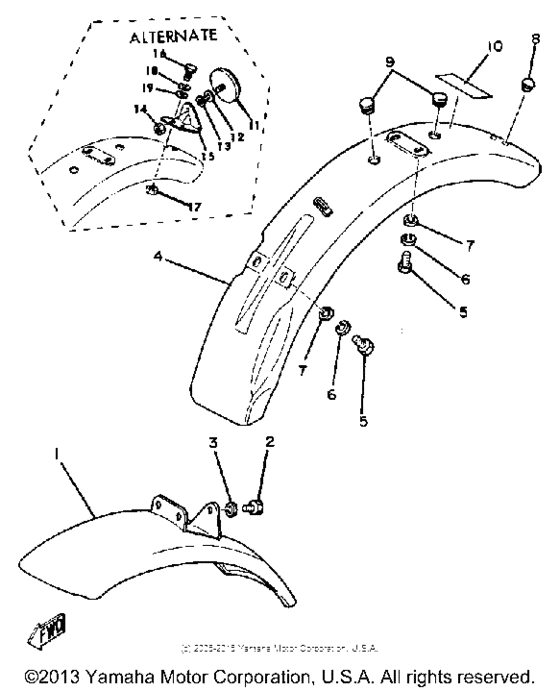

Front fender - rear fender Diagram Yamaha MX
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 80
- Model
- MX80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
288-21510-01-36 Fender, Front |
288-21510-01-36 |
from US $71.91 |
||
|
2
|
2
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
2
|
2
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
|
3
|
3
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
3
|
3
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
3
|
3
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
3
|
3
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
4
|
4
367-21610-01-36
Fender, Rear
|
367-21610-01-36 |
— | ||
|
5
|
5
97301-06014-00 Bolt, Hexagon |
97301-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
5
|
5
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
7
|
7
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
7
|
7
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
7
|
7
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
8
|
8
90338-07043-00 Plug |
90338-07043-00 |
from US $1.71 |
||
|
9
|
9
214-84154-60-00
Grommet
|
214-84154-60-00 |
— | ||
|
10
|
10
288-21659-00-00
Label, Safety
|
288-21659-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
449-85131-02-00 Reflector, Rear 1ALTERNATE PRTS |
449-85131-02-00 |
from US $12.46 |
||
|
12
|
12
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
13
|
13
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
14
|
14
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
15
|
15
367-85132-00-00
Bracket, Reflect 1
ALTERNATE PRTS |
367-85132-00-00 |
— | ||
|
16
|
16
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
16
|
16
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
17
|
17
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
19
|
19
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
