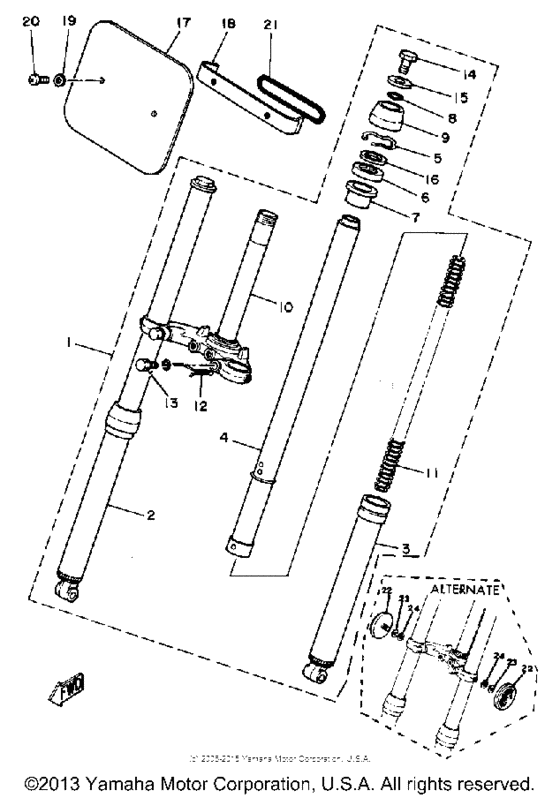

Front fork Diagram Yamaha MX
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 80
- Model
- MX80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
367-23101-62-00
Front Fork Assembly
|
367-23101-62-00 |
— | ||
|
2
|
2
367-23136-62-35
Tube, Outer 2
SILVER |
367-23136-62-35 |
— | ||
|
3
|
3
367-23126-62-35
Tube, Outer 1
SILVER |
367-23126-62-35 |
— | ||
|
4
|
4
367-23134-62-00
Tube, Inner 2
|
367-23134-62-00 |
— | ||
|
5
|
5
1T8-23156-00-00 Ring, Snap |
1T8-23156-00-00 |
from US $4.82 |
||
|
6
|
6
3VR-23145-00-00 Oil Seal |
3VR-23145-00-00 |
from US $16.43 |
||
|
7
|
7
367-23125-60-00 Metal, Slide 1 |
367-23125-60-00 |
from US $24.51 |
||
|
8
|
8
307-23114-00-00 Gasket |
307-23114-00-00 |
from US $5.81 |
||
|
9
|
9
367-23144-60-00 Seal, Dust |
367-23144-60-00 |
US $19.39 |
||
|
10
|
10
367-23340-60-33
Under Bracket
|
367-23340-60-33 |
— | ||
|
11
|
11
367-23141-62-00
Spring, Front Fork
|
367-23141-62-00 |
— | ||
|
12
|
12
2A3-23319-00-00
Holder, Cable 2
|
2A3-23319-00-00 |
— | ||
|
13
|
13
5J0-23346-00-00
Bolt 1
|
5J0-23346-00-00 |
— | ||
| replacement | |||||
|
13
|
13
122-23346-02-00 Bolt 1 |
122-23346-02-00 |
from US $6.66 |
||
|
14
|
14
395-23111-00-00 Bolt, Cap |
395-23111-00-00 |
US $20.71 |
||
|
15
|
15
207-23112-00-00 Washer, Cap |
207-23112-00-00 |
from US $14.45 |
||
|
16
|
16
367-23146-60-00 Washer, Oil Seal |
367-23146-60-00 |
US $12.33 |
||
|
17
|
17
288-23485-00-00
Plate, Number
|
288-23485-00-00 |
— | ||
|
18
|
18
288-23486-00-00
Stay, Plate
|
288-23486-00-00 |
— | ||
|
19
|
19
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
19
|
19
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
19
|
19
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
20
|
20
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
21
|
21
288-23489-00-00
Band
|
288-23489-00-00 |
— | ||
|
22
|
22
355-85111-01-00 Reflector, Front 1ALTERNATE PRTS |
355-85111-01-00 |
from US $11.62 |
||
|
23
|
23
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
24
|
24
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.36 |
||
