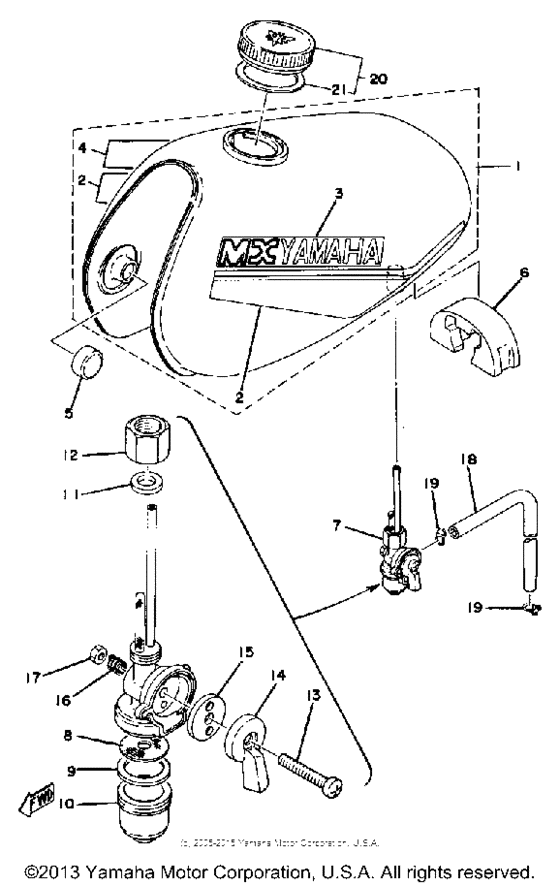

Fuel tank Diagram Yamaha MX
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 80
- Model
- MX80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
367-24110-Y0-W4
Fuel Tank
|
367-24110-Y0-W4 |
— | ||
|
2
|
2
367-24240-50-00
Graphic Set
|
367-24240-50-00 |
— | ||
|
3
|
3
367-24246-40-00
Graphic, Fuel Tnk 3
|
367-24246-40-00 |
— | ||
|
4
|
4
367-24247-40-00
Graphic, Fuel Tnk 4
|
367-24247-40-00 |
— | ||
|
5
|
5
122-24181-00-00 Damper, Locating 1 |
122-24181-00-00 |
from US $3.51 |
||
|
6
|
6
353-24182-00-00 Damper, Locating 2 |
353-24182-00-00 |
from US $14.31 |
||
|
7
|
7
367-24500-04-00 Fuel Cock Assembly 1 |
367-24500-04-00 |
from US $122.26 |
||
|
8
|
8
355-24515-00-00
Net, Filter 2
|
355-24515-00-00 |
— | ||
|
9
|
9
102-24522-01-00 Gasket |
102-24522-01-00 |
from US $5.24 |
||
| replacement | |||||
|
9
|
9
102-24522-02-00 Gasket |
102-24522-02-00 |
US $7.88 |
||
|
10
|
10
122-24521-00-00
Cup, Filter
|
122-24521-00-00 |
— | ||
|
11
|
11
122-24532-00-00 Gasket |
122-24532-00-00 |
from US $5.67 |
||
|
12
|
12
603-24531-01-00
Nut
|
603-24531-01-00 |
— | ||
|
13
|
13
985-01050-30-00
Screw, Pan Head
|
985-01050-30-00 |
— | ||
| replacements | |||||
|
13
|
13
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
13
|
13
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
14
|
14
355-24524-01-00
Lever, Cock
|
355-24524-01-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
355-24523-00-00 Valve |
355-24523-00-00 |
from US $12.33 |
||
|
16
|
16
355-24518-00-00
Washer, Wave
|
355-24518-00-00 |
— | ||
|
17
|
17
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
18
|
18
90445-09066-00 Hose (L420) |
90445-09066-00 |
from US $6.52 |
||
| replacement | |||||
|
18
|
18
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
19
|
19
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
20
|
20
122-24610-01-00 Cap Assembly |
122-24610-01-00 |
from US $22.53 |
||
|
21
|
21
122-24612-01-00 Packing, Cap |
122-24612-01-00 |
from US $8.64 |
||
