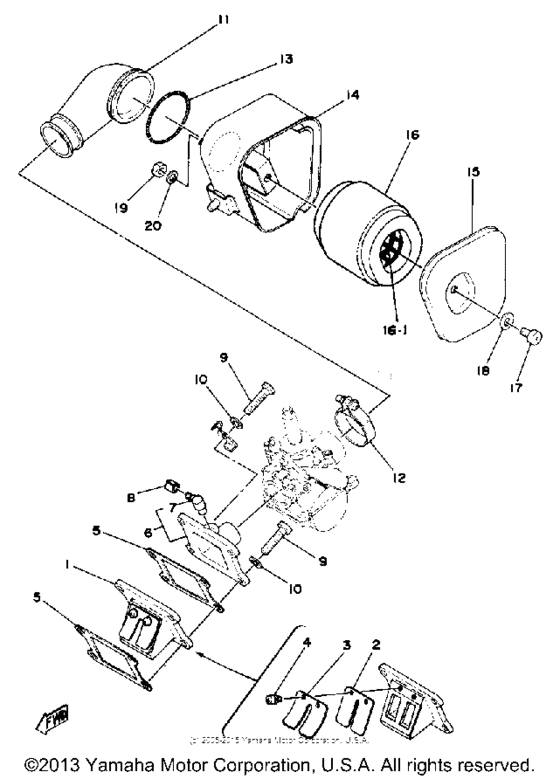

Intake Diagram Yamaha MX
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 80
- Model
- MX80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
367-14451-09-00 Element, Air Clnr |
367-14451-09-00 |
from US $29.74 |
||
| replacement | |||||
|
1
|
1
367-14451-08-00 |
367-14451-08-00 |
US $17.42 |
||
|
1
|
1
353-13610-01-00
Reed Valve Assembly
|
353-13610-01-00 |
— | ||
|
2
|
2
314-13613-01-00 Reed, Valve |
314-13613-01-00 |
from US $23.66 |
||
|
3
|
3
314-13616-01-00
Stopper, Reed Valve
|
314-13616-01-00 |
— | ||
| replacement | |||||
|
3
|
3
10X-13616-00-00
Stopper, Reed Valve
|
10X-13616-00-00 |
— | ||
|
4
|
4
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
5
|
5
3MT-13621-00-00 Gasket, Valve Seat |
3MT-13621-00-00 |
from US $6.94 |
||
|
6
|
6
374-13565-00-00
Joint, Carburetor (367-13565-00
367-13565-00 SILVER |
374-13565-00-00 |
— | ||
|
7
|
7
278-13552-02-00
Nozzle
|
278-13552-02-00 |
— | ||
| replacement | |||||
|
7
|
7
3XV-13741-00-00
Nozzle
|
3XV-13741-00-00 |
— | ||
|
8
|
8
90468-02033-00 Clip |
90468-02033-00 |
from US $1.35 |
||
|
9
|
9
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
9
|
9
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
367-14453-02-00 Joint, Air Clnr 1 |
367-14453-02-00 |
from US $35.37 |
||
|
12
|
12
90460-33087-00 Clamp, Hose |
90460-33087-00 |
from US $6.28 |
||
|
13
|
13
90506-06075-00 Spring, Tension |
90506-06075-00 |
from US $4.68 |
||
|
14
|
14
367-14411-00-00
Case, Air Cleaner 1
|
367-14411-00-00 |
— | ||
|
15
|
15
2A3-14412-00-00
Cap, Cleaner Case 1
|
2A3-14412-00-00 |
— | ||
|
16
|
16
367-14451-09-00 Element, Air Clnr |
367-14451-09-00 |
from US $29.74 |
||
| replacement | |||||
|
16
|
16
367-14451-08-00 |
367-14451-08-00 |
US $17.42 |
||
|
17
|
17
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
18
|
18
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
19
|
19
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
