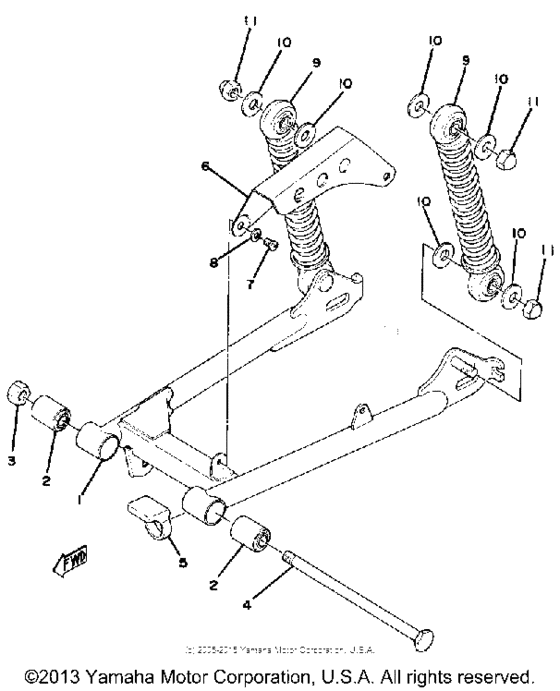

Rear arm - suspension Diagram Yamaha MX
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 80
- Model
- MX80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
367-22110-00-33
Rear Arm
|
367-22110-00-33 |
— | ||
|
2
|
2
102-22123-00-00 Bush 1 |
102-22123-00-00 |
from US $10.73 |
||
|
3
|
3
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
3
|
3
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
|
4
|
4
288-22141-00-00 Shaft, Pivot |
288-22141-00-00 |
from US $35.23 |
||
|
5
|
5
183-22151-00-00 Seal, Guard |
183-22151-00-00 |
from US $7.37 |
||
|
6
|
6
288-22311-00-33
Case, Chain
|
288-22311-00-33 |
— | ||
|
7
|
7
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
7
|
7
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
8
|
8
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
9
|
9
367-22210-21-00
Shk/abs Assembly, Rear
|
367-22210-21-00 |
— | ||
|
10
|
10
90201-10437-00 Washer, Plate |
90201-10437-00 |
from US $1.65 |
||
| replacement | |||||
|
10
|
10
90201-105R9-00 Washer, Plate |
90201-105R9-00 |
from US $1.70 |
||
|
11
|
11
90176-10013-00 Nut, Crown |
90176-10013-00 |
from US $1.70 |
||
| replacements | |||||
|
11
|
11
90176-10009-00 Nut, Cap (371) |
90176-10009-00 |
from US $1.66 |
||
|
11
|
11
901-76100-73-00
Nut, Crown
|
901-76100-73-00 |
— | ||
