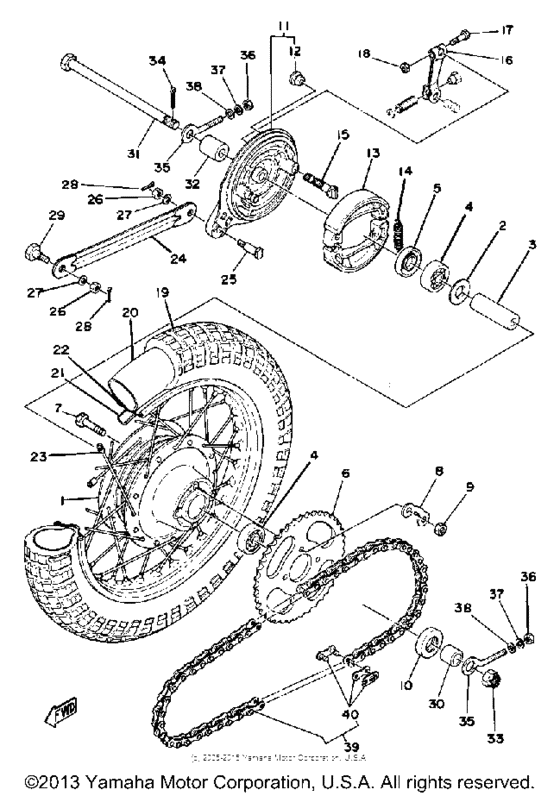

Rear wheel Diagram Yamaha MX
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 80
- Model
- MX80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
288-25311-01-Y8
Hub, Rear
|
288-25311-01-Y8 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
109-25315-00-00 Flange, Spacer |
109-25315-00-00 |
from US $2.55 |
||
|
3
|
3
90560-12170-00 Spacer |
90560-12170-00 |
from US $12.89 |
||
|
4
|
4
93306-30101-00 Bearing |
93306-30101-00 |
from US $9.57 |
||
|
5
|
5
93106-20033-00 Oil Seal(3Tu) |
93106-20033-00 |
from US $8.50 |
||
|
6
|
6
5J1-25441-20-00 Sprocket, Drvn 41T (288-25441-141T 288-25441-1 |
5J1-25441-20-00 |
from US $41.47 |
||
|
7
|
7
90109-08319-00 Bolt |
90109-08319-00 |
from US $7.93 |
||
|
8
|
8
2A3-25412-00-00 Washer |
2A3-25412-00-00 |
from US $6.32 |
||
| replacement | |||||
|
8
|
8
2AL-25412-00-00 Washer |
2AL-25412-00-00 |
from US $6.66 |
||
|
9
|
9
90170-08158-00 Nut, Hexagon (509) |
90170-08158-00 |
from US $2.08 |
||
|
10
|
10
93104-21016-00 Oil Seal, Sd-Type |
93104-21016-00 |
from US $9.35 |
||
|
11
|
11
355-25026-00-Y8
Brake Shoe Plt Assembly
|
355-25026-00-Y8 |
— | ||
| replacement | |||||
|
11
|
11
355-25026-00-35
Brake Shoe Plate Assy
|
355-25026-00-35 |
— | ||
|
12
|
12
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.81 |
||
|
13
|
13
296-W2536-00-00 Brake Shoe Kit |
296-W2536-00-00 |
from US $23.89 |
||
| replacement | |||||
|
13
|
13
4KN-W253E-11-00 Brake Shoe Kit |
4KN-W253E-11-00 |
from US $28.08 |
||
|
14
|
14
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
15
|
15
3Y6-25351-00-00 Camshaft |
3Y6-25351-00-00 |
from US $27.77 |
||
| replacement | |||||
|
15
|
15
4GL-25351-00-00 Camshaft |
4GL-25351-00-00 |
from US $27.77 |
||
|
16
|
16
538-25355-00-00 Lever, Camshaft |
538-25355-00-00 |
from US $8.42 |
||
|
17
|
17
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
18
|
18
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
19
|
19
941-27144-77-00
275-14 Irc Trials
|
941-27144-77-00 |
— | ||
|
20
|
20
942-27141-96-00 Tube |
942-27141-96-00 |
US $17.15 |
||
| replacement | |||||
|
20
|
20
94227-14102-00 Tube (2.75-14) |
94227-14102-00 |
US $23.53 |
||
|
21
|
21
94327-14076-00 Band, Rim (1.60-14)1.60-14 |
94327-14076-00 |
from US $4.53 |
||
|
22
|
22
944-14140-77-00
Rim 1.40X14
1.40X14 |
944-14140-77-00 |
— | ||
|
23
|
23
367-25304-00-00
Spoke Set, Rear
|
367-25304-00-00 |
— | ||
|
24
|
24
353-25371-00-00
Bar, Tension
|
353-25371-00-00 |
— | ||
|
25
|
25
90109-08183-00 Bolt |
90109-08183-00 |
from US $5.67 |
||
| replacement | |||||
|
25
|
25
90109-08816-00 Bolt |
90109-08816-00 |
US $2.55 |
||
|
26
|
26
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
26
|
26
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
27
|
27
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
28
|
28
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
28
|
28
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
29
|
29
90109-08368-00 Bolt |
90109-08368-00 |
from US $5.67 |
||
|
30
|
30
90387-120F9-00 Collar |
90387-120F9-00 |
from US $5.13 |
||
|
31
|
31
367-25381-00-00 Axle, Wheel |
367-25381-00-00 |
from US $49.34 |
||
| replacement | |||||
|
31
|
31
367-25381-01-00 Axle, Wheel |
367-25381-01-00 |
from US $57.96 |
||
|
32
|
32
90387-12412-00 Collar |
90387-12412-00 |
from US $6.09 |
||
|
33
|
33
90171-12005-00 Nut, Castle |
90171-12005-00 |
from US $3.83 |
||
| replacement | |||||
|
33
|
33
90171-12039-00 Nut, Castle(36R) |
90171-12039-00 |
from US $2.27 |
||
|
34
|
34
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
34
|
34
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
35
|
35
102-25389-00-00 Puller, Chain |
102-25389-00-00 |
from US $10.58 |
||
| replacements | |||||
|
35
|
35
3AC-2538G-10-00 Puller, Chain |
3AC-2538G-10-00 |
from US $10.63 |
||
|
35
|
35
4GL-2538G-10-00 Puller, Chain |
4GL-2538G-10-00 |
from US $10.34 |
||
|
36
|
36
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
37
|
37
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
38
|
38
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
38
|
38
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
38
|
38
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
38
|
38
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
39
|
39
94580-52096-00 Chain (Did420M 96L) |
94580-52096-00 |
from US $20.97 |
||
| replacement | |||||
|
39
|
39
9Y5-80520-95-00 Chain, Drive |
9Y5-80520-95-00 |
from US $21.73 |
||
|
40
|
40
94680-52001-00 Joint, Chain(Did 420M)420M |
94680-52001-00 |
from US $2.98 |
||
