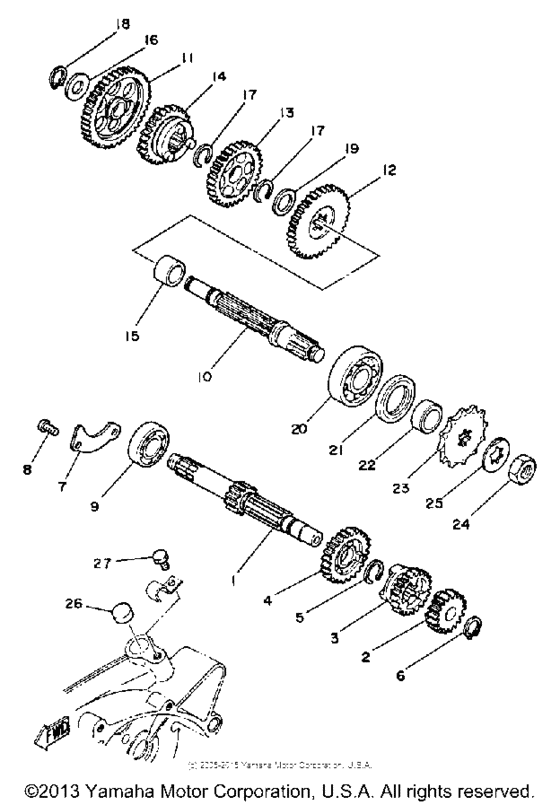

Transmission Diagram Yamaha MX
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 80
- Model
- MX80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
353-17411-10-00
Axle, Main
|
353-17411-10-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
353-17121-11-00 Gear, 2Nd Pinion2ND PINION |
353-17121-11-00 |
US $79.45 |
||
|
3
|
3
353-17131-10-00 Gear, 3Rd Pinion3RD PINION U.R. |
353-17131-10-00 |
US $97.67 |
||
|
4
|
4
353-17141-12-00 Gear, 4Th Pinion4TH PINION |
353-17141-12-00 |
US $93.62 |
||
|
5
|
5
93440-16089-00 Circlip (4V0) |
93440-16089-00 |
from US $2.13 |
||
|
6
|
6
99009-13400-00 Circlip |
99009-13400-00 |
from US $2.41 |
||
|
7
|
7
353-17471-00-00
Plate, Cover
|
353-17471-00-00 |
— | ||
|
8
|
8
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
8
|
8
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
9
|
9
93306-20333-00 Bearing(39K) |
93306-20333-00 |
from US $15.30 |
||
| replacement | |||||
|
9
|
9
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.68 |
||
|
10
|
10
598-17421-00-00
Axle, Drive
|
598-17421-00-00 |
— | ||
|
11
|
11
353-17211-01-00
Gear, 1St Wheel
1ST WHEEL |
353-17211-01-00 |
— | ||
|
12
|
12
367-17221-00-00
Gear, 2Nd Wheel (34T)
2ND WHEEL |
367-17221-00-00 |
— | ||
| replacement | |||||
|
12
|
12
353-17221-00-00
Gear, 2Nd Wheel
2ND WHEEL |
353-17221-00-00 |
— | ||
|
13
|
13
353-17231-00-00
Gear, 3Rd Wheel
3RD WHEEL |
353-17231-00-00 |
— | ||
|
14
|
14
353-17241-00-00
Gear, 4Th Wheel (27T)
4TH WHEEL |
353-17241-00-00 |
— | ||
|
15
|
15
90387-16126-00 Collar |
90387-16126-00 |
US $6.43 |
||
|
16
|
16
257-17219-00-00 Shim |
257-17219-00-00 |
from US $2.70 |
||
|
17
|
17
93440-16089-00 Circlip (4V0) |
93440-16089-00 |
from US $2.13 |
||
|
18
|
18
99009-13400-00 Circlip |
99009-13400-00 |
from US $2.41 |
||
|
19
|
19
52G-17968-00-10
Shim, (1.0T)
1.0T |
52G-17968-00-10 |
— | ||
|
20
|
20
93306-30302-00 Brg,r-B 6303 47Mm 115G Nk |
93306-30302-00 |
from US $19.55 |
||
|
21
|
21
93102-25017-00 Oil Seal |
93102-25017-00 |
from US $3.72 |
||
|
22
|
22
90387-17137-00
Collar
|
90387-17137-00 |
— | ||
|
23
|
23
93811-13020-00 Sprocket, Drive (257-17461-31)Sprocket, drive (2571746131) 257-17461-31 U.R. |
93811-13020-00 |
US $15.53 |
||
| replacement | |||||
|
23
|
23
938-11130-19-00 Sprocket,drive 13T(12N1746131)257-17461-31 U.R. |
938-11130-19-00 |
US $15.08 |
||
|
23
|
23
93811-14033-00 Sprocket, DriveSprocket, drive |
93811-14033-00 |
from US $18.56 |
||
|
23
|
23
938-11150-60-00 Sprocket, Drive (257-17461-51)257-17461-51 U.R. |
938-11150-60-00 |
US $17.64 |
||
| replacement | |||||
|
23
|
23
938-11150-61-00 Sprocket,drive 15T(5G11746150)257-17461-51 U.R. |
938-11150-61-00 |
US $16.16 |
||
|
24
|
24
90179-12181-00 Nut, Spec''l Shape |
90179-12181-00 |
from US $10.15 |
||
|
25
|
25
90215-13019-00 Washer,lock |
90215-13019-00 |
from US $4.39 |
||
| replacement | |||||
|
25
|
25
902-15130-26-00 Washer Lock 283174640000 |
902-15130-26-00 |
from US $3.24 |
||
|
26
|
26
903-38160-15-00 Plug |
903-38160-15-00 |
from US $4.25 |
||
| replacement | |||||
|
26
|
26
90338-16029-00 Plug |
90338-16029-00 |
from US $4.25 |
||
|
27
|
27
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
27
|
27
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
