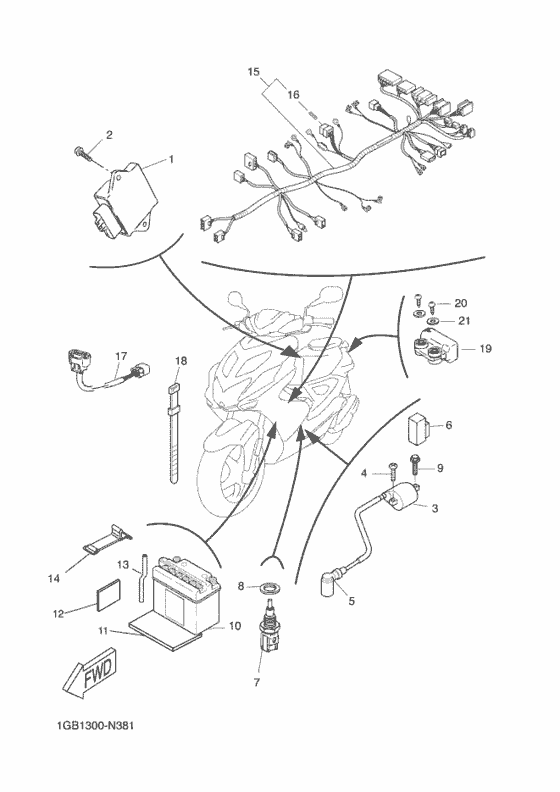

Electrical 2 Diagram Yamaha NS50 Aerox 4
- Year
- 2016
- Colour
- Mat Gray Metallic 3
- Model code
- 1GB3
- Sales region
- Europe (060)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- Aerox 4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1GB-H591A-00-00
Engine Control Unit Assy
|
1GB-H591A-00-00 |
— | ||
|
2
|
2
958-07060-14-00
Bolt, Flange
|
958-07060-14-00 |
— | ||
| replacement | |||||
|
2
|
2
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.18 |
||
|
3
|
3
1C0-82310-00-00 Ignition Coil Assy |
1C0-82310-00-00 |
from US $48.49 |
||
|
4
|
4
90105-06X00-00 Bolt, FlangeBolt, flange |
90105-06X00-00 |
from US $1.07 |
||
|
5
|
5
4CW-H2370-01-00 Plug Cap Assy |
4CW-H2370-01-00 |
US $24.65 |
||
|
6
|
6
5TN-H1940-00-00 Starter Relay Assy |
5TN-H1940-00-00 |
US $33.58 |
||
|
7
|
7
5YP-85790-00-00 Thermosensor Assy |
5YP-85790-00-00 |
from US $30.18 |
||
|
8
|
8
904-3012X-01-00 Gasket |
904-3012X-01-00 |
US $6.09 |
||
|
9
|
9
90153-06034-00 Screw, Hexagon |
90153-06034-00 |
from US $1.70 |
||
|
10
|
10
5C3-H2110-10-00
Battery Assy (Gs Cb5L-B)
|
5C3-H2110-10-00 |
— | ||
| replacement | |||||
|
10
|
10
907-9R242-85-00
Battery (Yb5L-B)
|
907-9R242-85-00 |
— | ||
|
11
|
11
1PH-F1778-00-00
Damper, Locating 1
|
1PH-F1778-00-00 |
— | ||
|
12
|
12
4SB-F174X-50-00 Damper |
4SB-F174X-50-00 |
US $18.99 |
||
|
13
|
13
1PH-H2112-00-00
Pipe, Breather
|
1PH-H2112-00-00 |
— | ||
|
14
|
14
1TK-H2131-00-00
Band, Battery
|
1TK-H2131-00-00 |
— | ||
|
15
|
15
1GB-H2590-00-00
Wire Harness Assy
|
1GB-H2590-00-00 |
— | ||
|
16
|
16
5ML-H2151-10-00 Fuse (15A) |
5ML-H2151-10-00 |
from US $1.19 |
||
|
17
|
17
5C3-H2509-00-00
Wire, Sub Lead
|
5C3-H2509-00-00 |
— | ||
|
18
|
18
4KH-H3936-01-00 Band Switch Cord (249X4.8)(249X4.80) |
4KH-H3936-01-00 |
from US $3.68 |
||
|
19
|
19
5PS-82576-01-00
Sensor, Lean Angle
|
5PS-82576-01-00 |
— | ||
| replacement | |||||
|
19
|
19
5PS-82576-02-00 Sensor, Lean Angle |
5PS-82576-02-00 |
from US $93.26 |
||
|
20
|
20
97707-40130-00
Screw, Tapping
|
97707-40130-00 |
— | ||
|
21
|
21
90201-047A2-00 Washer, Plate |
90201-047A2-00 |
from US $1.70 |
||
