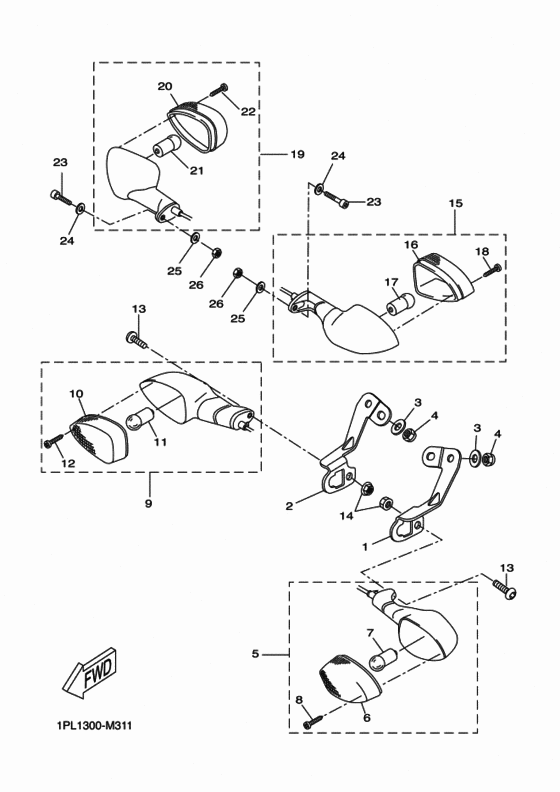

Flasher light Diagram Yamaha NS50 Aerox Naked
- Year
- 2013
- Colour
- Mat Black 2
- Model code
- 1PL1
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- Aerox Naked
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1PL-H3318-00-00
Stay, Flasher 1
|
1PL-H3318-00-00 |
— | ||
|
2
|
2
1PL-H3328-00-00
Stay, Flasher 2
|
1PL-H3328-00-00 |
— | ||
|
3
|
3
90201-06X01-00 Washer, Plain |
90201-06X01-00 |
from US $3.83 |
||
|
4
|
4
5JH-F6294-00-00 Nut 1 |
5JH-F6294-00-00 |
US $8.22 |
||
|
5
|
5
1PL-H3310-00-00
Front Flasher Light Assy 1
|
1PL-H3310-00-00 |
— | ||
|
6
|
6
1PL-H3312-00-00
Lens, Flasher
|
1PL-H3312-00-00 |
— | ||
|
7
|
7
5VK-H3311-00-00 Bulb, Flasher (12V/10W)Bulb, flasher (12v/10w) |
5VK-H3311-00-00 |
US $22.95 |
||
|
8
|
8
5D7-H3333-00-00 Screw, Lens Fitting |
5D7-H3333-00-00 |
US $9.21 |
||
|
9
|
9
1PL-H3320-00-00
Front Flasher Light Assy 2
|
1PL-H3320-00-00 |
— | ||
|
10
|
10
1PL-H3322-00-00
Lens, Flasher 2
|
1PL-H3322-00-00 |
— | ||
|
11
|
11
5VK-H3311-00-00 Bulb, Flasher (12V/10W)Bulb, flasher (12v/10w) |
5VK-H3311-00-00 |
US $22.95 |
||
|
12
|
12
5D7-H3333-00-00 Screw, Lens Fitting |
5D7-H3333-00-00 |
US $9.21 |
||
|
13
|
13
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.39 |
||
|
14
|
14
90179-06028-00 Nut |
90179-06028-00 |
from US $1.70 |
||
|
15
|
15
1PH-H3330-00-00
Rear Flasher Light Assy 1
|
1PH-H3330-00-00 |
— | ||
|
16
|
16
1PL-H3322-00-00
Lens, Flasher 2
|
1PL-H3322-00-00 |
— | ||
|
17
|
17
5VK-H3311-00-00 Bulb, Flasher (12V/10W)Bulb, flasher (12v/10w) |
5VK-H3311-00-00 |
US $22.95 |
||
|
18
|
18
5D7-H3333-00-00 Screw, Lens Fitting |
5D7-H3333-00-00 |
US $9.21 |
||
|
19
|
19
1PH-H3340-00-00
Rear Flasher Light Assy 2
|
1PH-H3340-00-00 |
— | ||
|
20
|
20
1PL-H3312-00-00
Lens, Flasher
|
1PL-H3312-00-00 |
— | ||
|
21
|
21
5VK-H3311-00-00 Bulb, Flasher (12V/10W)Bulb, flasher (12v/10w) |
5VK-H3311-00-00 |
US $22.95 |
||
|
22
|
22
5D7-H3333-00-00 Screw, Lens Fitting |
5D7-H3333-00-00 |
US $9.21 |
||
|
23
|
23
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
24
|
24
22B-H333F-00-00 Washer, Special |
22B-H333F-00-00 |
US $7.93 |
||
|
25
|
25
90201-06X06-00
Washer, Plate
|
90201-06X06-00 |
— | ||
|
26
|
26
95602-06200-00 Nut, U Flange |
95602-06200-00 |
from US $1.52 |
||
| replacement | |||||
|
26
|
26
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.52 |
||
