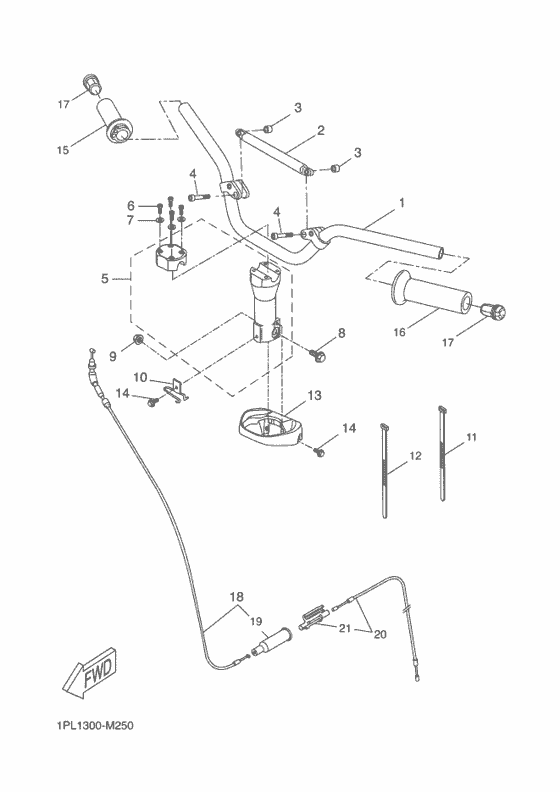

Steering handle & cable Diagram Yamaha NS50 Aerox Naked
- Year
- 2013
- Colour
- Mat Black 2
- Model code
- 1PL1
- Sales region
- Europe (020)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- Aerox Naked
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1PL-F6110-10-00
Handle Comp
ANTRACITE |
1PL-F6110-10-00 |
— | ||
|
2
|
2
1PL-F6238-10-00
Bar, Handle
(TITANIUM) |
1PL-F6238-10-00 |
— | ||
|
3
|
3
5JH-F612F-00-00
Boss
|
5JH-F612F-00-00 |
— | ||
|
4
|
4
1PL-F6225-00-00
Bolt, Handle
|
1PL-F6225-00-00 |
— | ||
|
5
|
5
1PL-F6126-00-00
Stem, Handle
MATT BLACK |
1PL-F6126-00-00 |
— | ||
|
6
|
6
90110-06X63-00
Bolt, Hexagon Socket Head
|
90110-06X63-00 |
— | ||
|
7
|
7
90201-06X01-00 Washer, Plain |
90201-06X01-00 |
from US $3.83 |
||
|
8
|
8
90105-10036-00 Bolt, Flange |
90105-10036-00 |
from US $4.25 |
||
|
9
|
9
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
10
|
10
1PL-F6131-00-00
Guide, Cable 1
|
1PL-F6131-00-00 |
— | ||
|
11
|
11
4VU-H3936-01-00 Band, Switch Cord (95.7X2.5)(95.7X2.50) |
4VU-H3936-01-00 |
from US $1.35 |
||
| replacement | |||||
|
11
|
11
4KH-H3936-01-00 Band Switch Cord (249X4.8)(95.7X2.50) |
4KH-H3936-01-00 |
from US $3.68 |
||
|
12
|
12
4VU-H3936-01-00 Band, Switch Cord (95.7X2.5)(95.7X2.50) |
4VU-H3936-01-00 |
from US $1.35 |
||
| replacement | |||||
|
12
|
12
4KH-H3936-01-00 Band Switch Cord (249X4.8)(95.7X2.50) |
4KH-H3936-01-00 |
from US $3.68 |
||
|
13
|
13
1PL-F612S-00-00
Cover, Handle Stem
|
1PL-F612S-00-00 |
— | ||
|
14
|
14
90111-06X16-00 Bolt,hex. Socket Button |
90111-06X16-00 |
US $1.56 |
||
|
15
|
15
1PH-F6240-00-00
Grip Assy
|
1PH-F6240-00-00 |
— | ||
|
16
|
16
1PH-F6241-00-00
Grip
|
1PH-F6241-00-00 |
— | ||
|
17
|
17
1PH-F628J-00-00
Cap, Grip
|
1PH-F628J-00-00 |
— | ||
|
18
|
18
1PH-F6311-00-00
Cable, Throttle 1
|
1PH-F6311-00-00 |
— | ||
|
19
|
19
3WG-F6329-00-00 Cap, Rubber |
3WG-F6329-00-00 |
from US $9.67 |
||
|
20
|
20
1PH-F6312-00-00
Cable, Throttle 2
|
1PH-F6312-00-00 |
— | ||
|
21
|
21
3VL-F6261-20-00
Connector, Cable
|
3VL-F6261-20-00 |
— | ||
