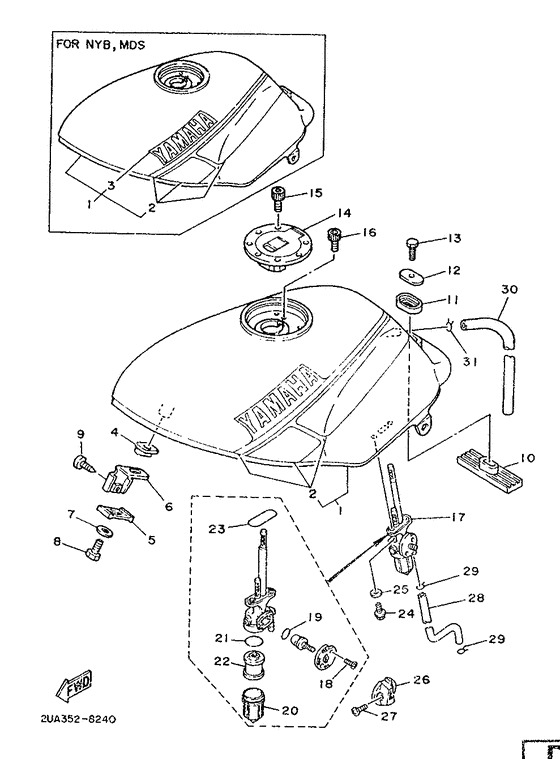

Fuel tank Diagram Yamaha RD
- Year
- 1988
- Colour
- Silky White (SW; 00GE)
- Model code
- 2UA
- Sales region
- Italy (999)
- Engine Capacity
- 350
- Model
- RD350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1YH-F4110-00-6G
Fuel Tank Comp
Ur new yamaha black/midnight s |
1YH-F4110-00-6G |
— | ||
|
01
|
01
1YH-F4110-00-GE
Fuel Tank Comp
Ur sliky white/stormy white ma |
1YH-F4110-00-GE |
— | ||
|
02
|
02
1WT-24241-00-00
Indicator 1
Ur para sw/smr |
1WT-24241-00-00 |
— | ||
|
02
|
02
2UA-24240-00-00
Graphic Set
Ur para nyb/mds |
2UA-24240-00-00 |
— | ||
|
03
|
03
99216-00045-00
Emblm, Yamaha
|
99216-00045-00 |
— | ||
| replacement | |||||
|
03
|
03
99226-00180-00
Emblem, Yamaha(3Tj)
|
99226-00180-00 |
— | ||
|
04
|
04
1A0-24181-00-00 Damper, Locating 1 |
1A0-24181-00-00 |
from US $9.34 |
||
|
05
|
05
1A0-24186-00-00 Washer, Special |
1A0-24186-00-00 |
from US $7.45 |
||
|
06
|
06
1UA-24191-00-00
Bracket, Fuel Tank 1
|
1UA-24191-00-00 |
— | ||
|
07
|
07
90209-06186-00
Washer
|
90209-06186-00 |
— | ||
|
08
|
08
98006-60008-00
Bolt
|
98006-60008-00 |
— | ||
|
09
|
09
90157-06046-00
Screw, Pan Head
|
90157-06046-00 |
— | ||
| replacement | |||||
|
09
|
09
92017-06010-00 Bolt, Button Head |
92017-06010-00 |
from US $1.56 |
||
|
10
|
10
29L-24182-00-00 Damper, Locating 2 |
29L-24182-00-00 |
from US $6.66 |
||
| replacement | |||||
|
10
|
10
2GH-24184-00-00 Damper, Locating 4 |
2GH-24184-00-00 |
from US $6.66 |
||
|
11
|
11
3Y6-24183-00-00 Damper, Locating 3 |
3Y6-24183-00-00 |
from US $7.51 |
||
|
12
|
12
12R-24186-00-00 Washer, Special |
12R-24186-00-00 |
from US $5.67 |
||
|
13
|
13
98002-08030-00 Bolt |
98002-08030-00 |
US $1.70 |
||
| replacement | |||||
|
13
|
13
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
14
|
14
1JK-24610-01-00
Cap Assy
|
1JK-24610-01-00 |
— | ||
|
15
|
15
90110-05112-00 Bolt, Hexagon Socket Head |
90110-05112-00 |
from US $1.81 |
||
|
16
|
16
91311-05010-00 Bolt, Hexagon Socket Head |
91311-05010-00 |
US $1.84 |
||
| replacement | |||||
|
16
|
16
91314-05010-00 Bolt, Hexagon Socket Head |
91314-05010-00 |
from US $1.84 |
||
|
17
|
17
1YH-24500-00-00
Fuel Cock Assy 1
|
1YH-24500-00-00 |
— | ||
| replacement | |||||
|
17
|
17
1YH-24500-10-00
Fuel Cock Assy 1
|
1YH-24500-10-00 |
— | ||
|
18
|
18
978-01030-08-00
Screw, Pan Head
|
978-01030-08-00 |
— | ||
| replacement | |||||
|
18
|
18
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
19
|
19
4X8-24534-00-00 Seal, Cock |
4X8-24534-00-00 |
from US $7.37 |
||
|
20
|
20
55K-24521-00-00
Cup, Filter
|
55K-24521-00-00 |
— | ||
|
21
|
21
55K-24565-00-00
O-Ring
|
55K-24565-00-00 |
— | ||
|
22
|
22
55K-24515-00-00
Net, Filter 2
|
55K-24515-00-00 |
— | ||
| replacement | |||||
|
22
|
22
55K-24515-01-00
Net, Filter 2
|
55K-24515-01-00 |
— | ||
|
23
|
23
4X8-24512-00-00 O-Ring |
4X8-24512-00-00 |
from US $2.08 |
||
|
24
|
24
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
25
|
25
902-02060-10-00
Washer Plate 178147660000
|
902-02060-10-00 |
— | ||
| replacement | |||||
|
25
|
25
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
26
|
26
46X-24524-00-00
Lever, Cock
|
46X-24524-00-00 |
— | ||
| replacements | |||||
|
26
|
26
4FD-24524-00-00
Lever, Cock
|
4FD-24524-00-00 |
— | ||
|
26
|
26
1YH-F4524-00-00
Lever, Cock
|
1YH-F4524-00-00 |
— | ||
|
27
|
27
985-06030-08-00
Screw, Pan Head
|
985-06030-08-00 |
— | ||
| replacement | |||||
|
27
|
27
98517-03008-00 Screw, Pan Head |
98517-03008-00 |
from US $2.27 |
||
|
28
|
28
29L-2416A-00-00
Hose
|
29L-2416A-00-00 |
— | ||
|
29
|
29
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
29
|
29
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.39 |
||
|
29
|
29
90467-11106-00 Clip |
90467-11106-00 |
from US $1.39 |
||
|
30
|
30
1JK-24315-00-00
Pipe 5
|
1JK-24315-00-00 |
— | ||
|
31
|
31
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
31
|
31
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.66 |
||
