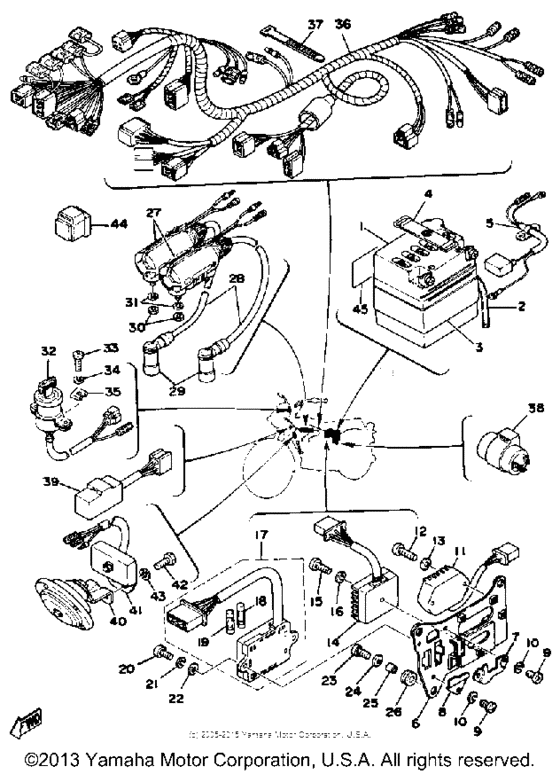

Electrical Diagram Yamaha RD
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
118-82110-79-00
12N5.5A3B Yuasa Bat
|
118-82110-79-00 |
— | ||
| replacement | |||||
|
1
|
1
12N-55A3B-Y0-00
CB3L-A GS-T BATTERY
|
12N-55A3B-Y0-00 |
— | ||
|
2
|
2
90445-08047-00 Hose (L1500) |
90445-08047-00 |
from US $10.91 |
||
| replacement | |||||
|
2
|
2
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
3
|
3
235-82124-00-00
Band, Battery
|
235-82124-00-00 |
— | ||
| replacement | |||||
|
3
|
3
1UA-82124-00-00
Band, Battery
|
1UA-82124-00-00 |
— | ||
|
4
|
4
122-82131-00-00 Band, Battery |
122-82131-00-00 |
from US $9.73 |
||
| replacement | |||||
|
4
|
4
26L-82131-00-00 Band, Battery |
26L-82131-00-00 |
from US $9.78 |
||
|
5
|
5
1A0-82117-00-00
Wire, Lead
|
1A0-82117-00-00 |
— | ||
|
6
|
6
1A0-21543-01-00
Plate 1
|
1A0-21543-01-00 |
— | ||
|
7
|
7
1A0-21544-00-00
Collar 1
|
1A0-21544-00-00 |
— | ||
|
8
|
8
1A0-21545-00-00
Plate 3
|
1A0-21545-00-00 |
— | ||
|
9
|
9
92503-06010-00 Screw, Pan Head92503-06010-00 |
92503-06010-00 |
from US $1.43 |
||
| replacement | |||||
|
9
|
9
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
10
|
10
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
1A0-81910-20-00
Voltage Reg Assembly
|
1A0-81910-20-00 |
— | ||
|
12
|
12
92501-06030-00 Screw, Pan Head |
92501-06030-00 |
from US $1.35 |
||
| replacement | |||||
|
12
|
12
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
13
|
13
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
14
|
14
1A0-81970-60-00
Rectifier Assembly (1A0-81970-2
|
1A0-81970-60-00 |
— | ||
| replacements | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
1L9-81970-60-00
Rectifier Assembly (1A0-81970-2
|
1L9-81970-60-00 |
— | ||
|
15
|
15
925-03060-20-00 Screw, Pan Head |
925-03060-20-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
16
|
16
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
1A0-82170-00-00
Fuse Box Assembly
|
1A0-82170-00-00 |
— | ||
| replacement | |||||
|
17
|
17
1J7-82170-40-00
Fuse Box Assembly
|
1J7-82170-40-00 |
— | ||
|
18
|
18
1A0-82151-00-00 Fuse (12V-10A)12V-10A |
1A0-82151-00-00 |
from US $4.96 |
||
|
19
|
19
1A0-82161-00-00 Fuse (12V-20A)12V-20A |
1A0-82161-00-00 |
from US $11.96 |
||
|
20
|
20
985-01050-16-00
Screw, Pan Head
|
985-01050-16-00 |
— | ||
| replacements | |||||
|
20
|
20
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
20
|
20
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
21
|
21
92903-05100-00 Washer, Spring |
92903-05100-00 |
US $1.21 |
||
| replacement | |||||
|
21
|
21
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
22
|
22
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
22
|
22
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
22
|
22
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
23
|
23
92503-06015-00 Screw, Pan Head |
92503-06015-00 |
from US $1.07 |
||
| replacement | |||||
|
23
|
23
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
24
|
24
90201-06053-00 Washer, Plate |
90201-06053-00 |
from US $0.97 |
||
| replacement | |||||
|
24
|
24
90201-062A8-00 Washer, Plate |
90201-062A8-00 |
from US $1.84 |
||
|
25
|
25
90387-07389-00 Collar |
90387-07389-00 |
from US $1.42 |
||
| replacement | |||||
|
25
|
25
90387-062N2-00 Collar |
90387-062N2-00 |
from US $1.42 |
||
|
26
|
26
90480-13018-00 Grommet |
90480-13018-00 |
from US $1.50 |
||
|
27
|
27
1A0-82310-10-00
Ignition Coil Assembly
|
1A0-82310-10-00 |
— | ||
|
28
|
28
183-82341-00-00 Cord, Hight Tension 1 |
183-82341-00-00 |
US $19.13 |
||
| replacement | |||||
|
28
|
28
137-82341-01-00 Cord, Hight Tension 1 |
137-82341-01-00 |
US $47.50 |
||
|
29
|
29
166-82370-20-00 Plug Cap Assy |
166-82370-20-00 |
from US $20.94 |
||
|
30
|
30
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
30
|
30
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
31
|
31
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
31
|
31
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
32
|
32
1A0-82508-50-00
Main Switch Assembly
|
1A0-82508-50-00 |
— | ||
|
33
|
33
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
33
|
33
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
33
|
33
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $2.27 |
||
|
34
|
34
92903-05100-00 Washer, Spring |
92903-05100-00 |
US $1.21 |
||
| replacement | |||||
|
34
|
34
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
35
|
35
533-82517-00-00
Washer, Special
|
533-82517-00-00 |
— | ||
| replacement | |||||
|
35
|
35
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
36
|
36
1A0-82590-51-00
Wire Harness Ass''y
|
1A0-82590-51-00 |
— | ||
|
37
|
37
803-82591-00-00 Band, Switch Cord |
803-82591-00-00 |
from US $1.56 |
||
| replacement | |||||
|
37
|
37
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
38
|
38
1A0-83350-70-00
Flasher Relay Assemblyassembly
|
1A0-83350-70-00 |
— | ||
| replacement | |||||
|
38
|
38
2NV-83350-00-00
Flasher Relay Assy
|
2NV-83350-00-00 |
— | ||
|
39
|
39
1A0-83395-03-00
Flasher Cancel Unit
|
1A0-83395-03-00 |
— | ||
| replacement | |||||
|
39
|
39
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
40
|
40
1A0-83371-21-00
Horn
|
1A0-83371-21-00 |
— | ||
|
41
|
41
1A0-85370-10-00
Resistor Assembly
|
1A0-85370-10-00 |
— | ||
|
42
|
42
97321-06016-00 Bolt |
97321-06016-00 |
from US $1.28 |
||
| replacements | |||||
|
42
|
42
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
42
|
42
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
42
|
42
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
43
|
43
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
43
|
43
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
44
|
44
360-81950-10-00
Relay Assembly
|
360-81950-10-00 |
— | ||
|
45
|
45
LIT-82141-09-00
Label, Battery
|
LIT-82141-09-00 |
— | ||
| replacements | |||||
|
45
|
45
40A-82141-G0-00
Label, Battery
|
40A-82141-G0-00 |
— | ||
|
45
|
45
118-82141-09-00
Label, Battery
|
118-82141-09-00 |
— | ||
|
45
|
45
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
