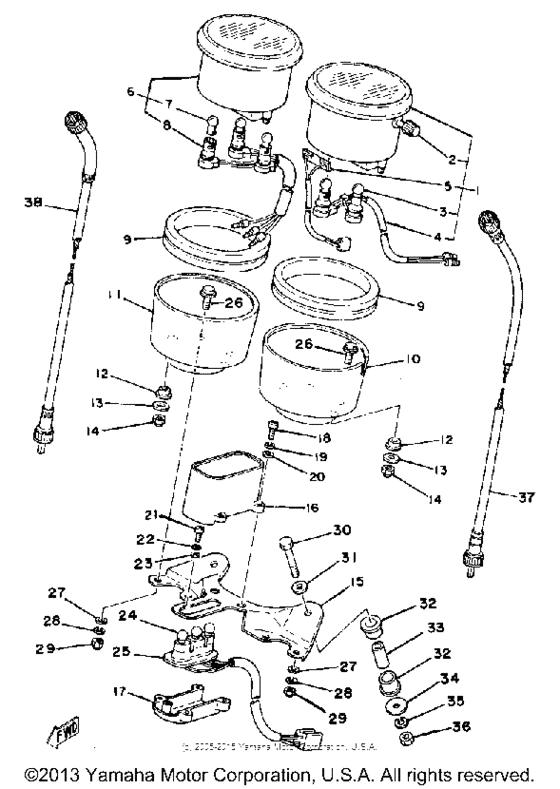

Speedometer & tachometer Diagram Yamaha RD
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2J2-83570-A0-00
Speedometer Assembly
|
2J2-83570-A0-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
584-83578-71-00 Knob, Trip Meter |
584-83578-71-00 |
from US $14.17 |
||
| replacement | |||||
|
2
|
2
4SV-83578-00-00 Knob, Trip Meter |
4SV-83578-00-00 |
from US $14.17 |
||
|
3
|
3
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
3
|
3
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
4
|
4
584-83536-01-00
Socket, Meter
|
584-83536-01-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
2J2-83556-00-00
Sender
|
2J2-83556-00-00 |
— | ||
|
6
|
6
2G6-83540-F0-00
Tachometer Assembly
|
2G6-83540-F0-00 |
— | ||
|
7
|
7
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
7
|
7
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
8
|
8
1J3-83520-01-00
Socket Cord Assembly
|
1J3-83520-01-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
3H3-83513-00-00 Damper |
3H3-83513-00-00 |
from US $21.39 |
||
|
10
|
10
584-83507-00-00
Case Comp, Under
|
584-83507-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
584-83508-00-00
Cover, Tachometer
|
584-83508-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
584-83523-00-00 Damper |
584-83523-00-00 |
from US $8.36 |
||
| replacement | |||||
|
12
|
12
21L-H3523-10-00
Damper
|
21L-H3523-10-00 |
— | ||
|
13
|
13
90201-05031-00 Washer, Plate |
90201-05031-00 |
from US $1.70 |
||
| replacements | |||||
|
13
|
13
90201-05725-00 Washer, Plate |
90201-05725-00 |
from US $1.70 |
||
|
13
|
13
90201-05043-00 Washer, Plate |
90201-05043-00 |
from US $1.70 |
||
|
14
|
14
95303-05800-00 Nut (Crown) |
95303-05800-00 |
US $1.56 |
||
| replacement | |||||
|
14
|
14
953-04058-00-00 Nut |
953-04058-00-00 |
from US $1.56 |
||
|
15
|
15
2M0-83519-00-00
Bracket, Meter
|
2M0-83519-00-00 |
— | ||
|
16
|
16
2L0-83568-A0-00
Pilot Box, Upper
|
2L0-83568-A0-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
2G2-83569-A0-00
Pilot Box, Lower
|
2G2-83569-A0-00 |
— | ||
|
18
|
18
98506-04012-00 Screw, Pan Head |
98506-04012-00 |
from US $1.07 |
||
| replacement | |||||
|
18
|
18
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
19
|
19
92906-04100-00 Washer, Spring |
92906-04100-00 |
from US $1.21 |
||
| replacements | |||||
|
19
|
19
92907-04100-00 Washer, Spring |
92907-04100-00 |
from US $1.21 |
||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
92906-04600-00 Washer |
92906-04600-00 |
from US $1.07 |
||
| replacement | |||||
|
20
|
20
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
21
|
21
925-03040-08-00
Screw, Pan Head
|
925-03040-08-00 |
— | ||
|
22
|
22
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
22
|
22
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
23
|
23
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
23
|
23
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
24
|
24
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
24
|
24
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
25
|
25
2L0-83509-A0-00
Socket Cord Assembly
|
2L0-83509-A0-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
584-83546-00-00 Bolt |
584-83546-00-00 |
from US $2.98 |
||
|
27
|
27
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
28
|
28
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
29
|
29
95303-06800-00 Nut |
95303-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
29
|
29
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.18 |
||
|
30
|
30
97006-06040-00 Bolt(2Gu) |
97006-06040-00 |
from US $2.69 |
||
| replacement | |||||
|
30
|
30
97017-06040-00 Bolt(8Bc) |
97017-06040-00 |
from US $2.69 |
||
|
31
|
31
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
31
|
31
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
32
|
32
584-83541-00-00 Damper |
584-83541-00-00 |
from US $11.03 |
||
|
33
|
33
90387-06249-00 Collar |
90387-06249-00 |
from US $1.28 |
||
|
34
|
34
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
34
|
34
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
35
|
35
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
36
|
36
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
37
|
37
2L0-83550-00-00
Sdmtr Cable
|
2L0-83550-00-00 |
— | ||
| replacement | |||||
|
37
|
37
3VP-83550-02-00 Speedometer Cable Assy |
3VP-83550-02-00 |
from US $30.46 |
||
|
38
|
38
2V0-83560-00-00
Tachometer Cable
|
2V0-83560-00-00 |
— | ||
