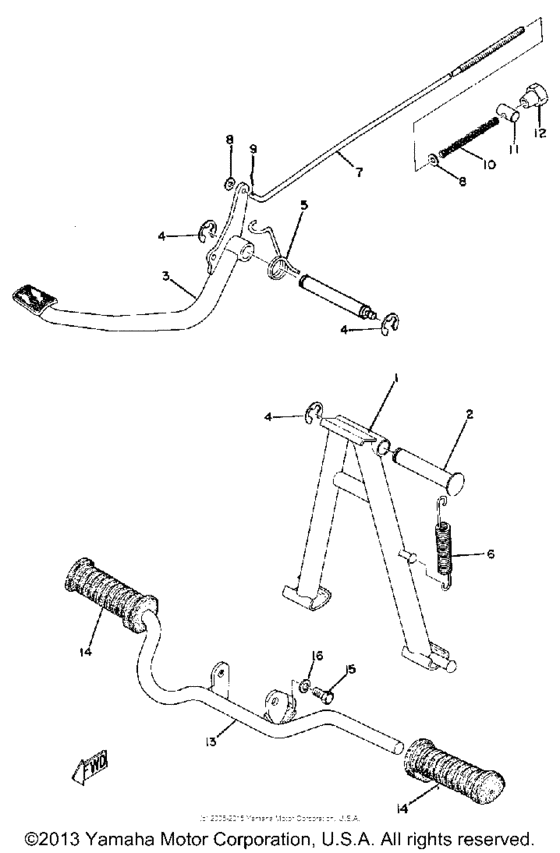

Stand - footrest - brake pedal Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 600
- Model
- RD60
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
353-27111-01-00
Stand, Main
491~RD60A |
353-27111-01-00 |
— | ||
|
2
|
2
353-27112-00-00
Shaft, Main Stand
|
353-27112-00-00 |
— | ||
|
3
|
3
353-27211-00-93
Pedal, Brake
|
353-27211-00-93 |
— | ||
|
3
|
3
353-27211-10-93
Pedal, Brake
491~RD60A |
353-27211-10-93 |
— | ||
|
4
|
4
93430-12008-00 Circlip |
93430-12008-00 |
from US $1.84 |
||
|
5
|
5
90508-32056-00 Spring, Torsion |
90508-32056-00 |
from US $6.66 |
||
|
6
|
6
90506-26270-00 Spring, Tension (1L9) |
90506-26270-00 |
from US $8.22 |
||
|
7
|
7
180-27231-01-00 Rod, Brake |
180-27231-01-00 |
from US $19.01 |
||
|
8
|
8
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
9
|
9
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
9
|
9
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
10
|
10
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.81 |
||
|
11
|
11
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
12
|
12
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
13
|
13
353-27411-10-33
Footrest 1
|
353-27411-10-33 |
— | ||
|
14
|
14
122-27413-00-00 Cover, Footrest |
122-27413-00-00 |
from US $13.32 |
||
|
15
|
15
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
15
|
15
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
16
|
16
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
17
|
17
353-27212-00-00
Shaft, Brake Pedal
491~RD60A |
353-27212-00-00 |
— | ||
