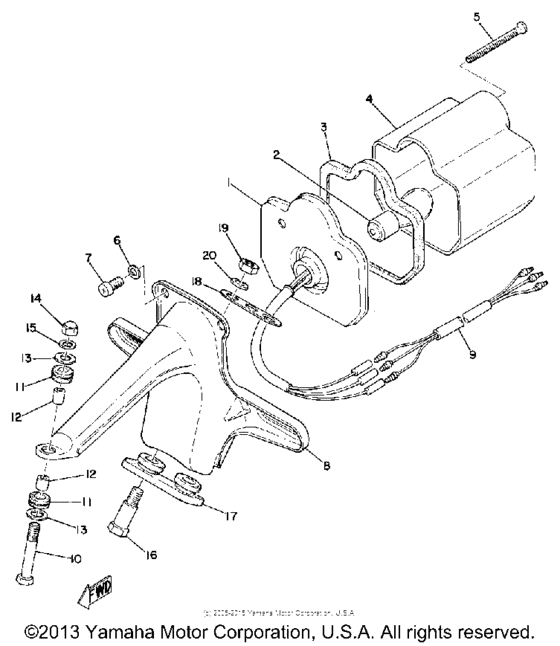

Tail lamp Diagram Yamaha RT1/ RT2/ RT3
- Year
- 1970
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- RT1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
214-84510-61-00
Taillight Unit Assembly
|
214-84510-61-00 |
— | ||
|
1
|
1
214-84511-61-00
Base, Taillight
|
214-84511-61-00 |
— | ||
|
2
|
2
122-84514-30-00 Bulb 6V21Cp(1154)6V21CP1154 |
122-84514-30-00 |
US $4.11 |
||
| replacement | |||||
|
2
|
2
122-84514-30-XX
BULB 6V21CP(1154)
6V21CP1154 |
122-84514-30-XX |
— | ||
|
3
|
3
168-84712-60-00
Seat, Base
|
168-84712-60-00 |
— | ||
|
4
|
4
168-84721-60-00
Lens, Taillight
|
168-84721-60-00 |
— | ||
|
5
|
5
3AA-84331-00-00
Screw, Rim Adjusting
|
3AA-84331-00-00 |
— | ||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010- |
985-80060-10-00 |
from US $1.42 |
||
|
8
|
8
214-84551-61-35
Bracket, Licence
|
214-84551-61-35 |
— | ||
|
9
|
9
214-84517-00-00
Cord, Taillight
|
214-84517-00-00 |
— | ||
|
10
|
10
970-13060-35-00 Bolt, Hexagon |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
10
|
10
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
11
|
11
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
12
|
12
90387-065L7-00 Collar |
90387-065L7-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
90387-06026-00 Collar |
90387-06026-00 |
from US $1.66 |
||
|
13
|
13
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
13
|
13
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
14
|
14
95303-06800-00 Nut |
95303-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.18 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
16
|
16
90109-06017-00 Bolt |
90109-06017-00 |
from US $4.11 |
||
|
17
|
17
214-84553-01-00 Damper |
214-84553-01-00 |
from US $10.06 |
||
|
18
|
18
902-09101-14-00
Washer, Spec''l Shap
|
902-09101-14-00 |
— | ||
|
19
|
19
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
20
|
20
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
