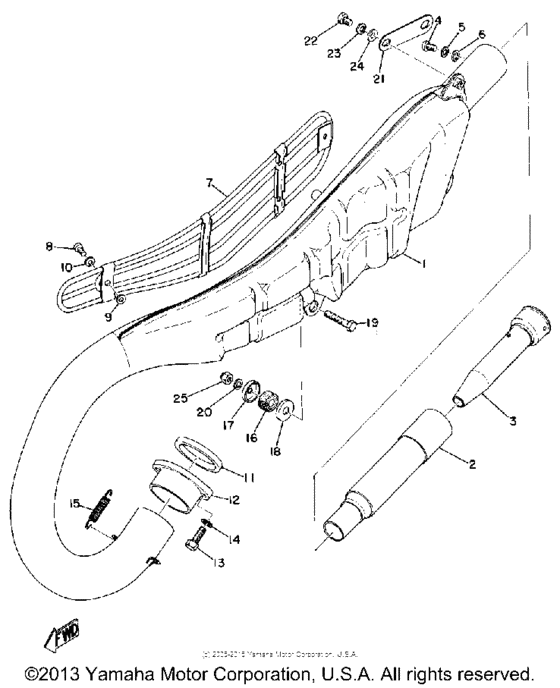

Exhaust Diagram Yamaha RT1/ RT2/ RT3
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- RT1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
291-14610-30-00
Exhaust Pipe Assembly L
|
291-14610-30-00 |
— | ||
|
2
|
2
275-14753-30-00
Silencer, Exhaust
|
275-14753-30-00 |
— | ||
|
3
|
3
275-14752-30-00
Pipe, Outlet
|
275-14752-30-00 |
— | ||
|
3
|
3
291-14752-30-00
Pipe, Outlet
|
291-14752-30-00 |
— | ||
|
4
|
4
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010- |
985-80060-10-00 |
from US $1.42 |
||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
6
|
6
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
7
|
7
214-14718-00-00
Protector, Muff 1
|
214-14718-00-00 |
— | ||
|
8
|
8
98903-06012-00 Screw, Bind |
98903-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
|
9
|
9
90202-05005-00 Washer, Plate |
90202-05005-00 |
from US $1.70 |
||
| replacement | |||||
|
9
|
9
902-02051-88-00 Washer, Plate |
902-02051-88-00 |
from US $1.70 |
||
|
10
|
10
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
11
|
11
214-14613-00-00 Gasket, Exhaust Pipe |
214-14613-00-00 |
from US $17.57 |
||
| replacement | |||||
|
11
|
11
214-14613-09-00 SPRING,TENSION |
214-14613-09-00 |
from US $15.12 |
||
|
12
|
12
214-14612-00-00
Nut, Ring
|
214-14612-00-00 |
— | ||
|
13
|
13
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
13
|
13
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
15
|
15
90506-12029-00 Spring, Tension |
90506-12029-00 |
from US $5.38 |
||
|
16
|
16
90480-14329-00 Grommet |
90480-14329-00 |
from US $1.94 |
||
|
17
|
17
214-14793-01-00
Plate, Muffler
|
214-14793-01-00 |
— | ||
|
18
|
18
214-14794-00-00
Plate, Muffler
|
214-14794-00-00 |
— | ||
|
19
|
19
970-13060-35-00 Bolt, Hexagon |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
19
|
19
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
21
|
21
214-14771-00-00
Stay, Muffler 1
|
214-14771-00-00 |
— | ||
|
22
|
22
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
22
|
22
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
22
|
22
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
22
|
22
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
23
|
23
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
24
|
24
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
25
|
25
214-21635-00-00
Nut, Rear Fender
|
214-21635-00-00 |
— | ||
