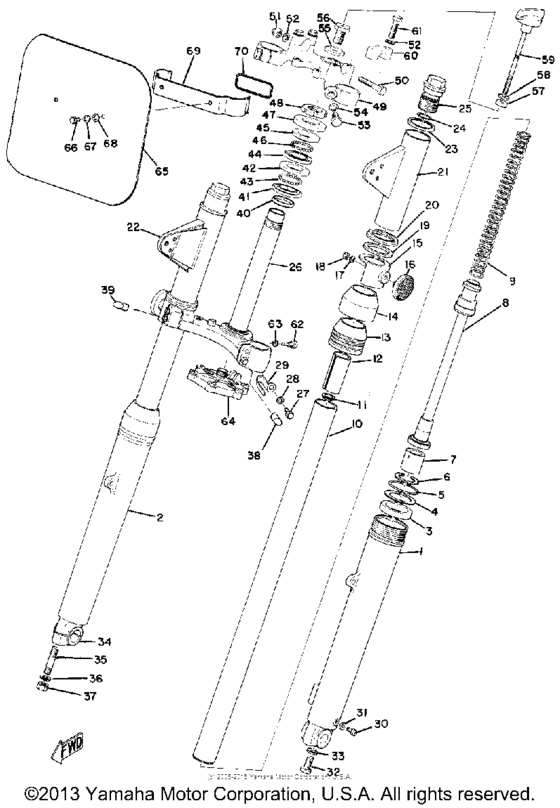

Front fork Diagram Yamaha RT1/ RT2/ RT3
- Year
- 1970
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- RT1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
291-23100-60-33
Front Fork Assembly
|
291-23100-60-33 |
— | ||
|
1
|
1
291-23126-60-00
Tube, Outer 1
|
291-23126-60-00 |
— | ||
|
2
|
2
291-23136-60-00
Tube, Outer 2
|
291-23136-60-00 |
— | ||
|
3
|
3
278-23145-51-00
Oil Seal
|
278-23145-51-00 |
— | ||
| replacement | |||||
|
3
|
3
584-23145-50-00 Oil Seal |
584-23145-50-00 |
from US $24.65 |
||
|
4
|
4
214-23146-00-00
Washer, Oil Seal
|
214-23146-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
214-23156-00-00
Clip, Oil Seal
|
214-23156-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
934-50300-33-00
Circlip, Inner
|
934-50300-33-00 |
— | ||
|
7
|
7
278-23171-50-00
Piston, Front Fork
|
278-23171-50-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
291-23170-60-00
Cylinder, Frtfrk
|
291-23170-60-00 |
— | ||
|
9
|
9
214-23141-00-00
Spring, Front Fork
|
214-23141-00-00 |
— | ||
|
10
|
10
291-23124-60-00
Tube, Inner 1
|
291-23124-60-00 |
— | ||
|
11
|
11
278-23142-50-00
Seat, Spring Upper
|
278-23142-50-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
291-23118-60-00
Spacer
|
291-23118-60-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
278-23144-50-00 Seal, Dust |
278-23144-50-00 |
from US $39.65 |
||
|
13
|
13
292-23144-00-00
Seal, Dust
|
292-23144-00-00 |
— | ||
|
14
|
14
278-23148-50-00
Cover, Dust Seal
|
278-23148-50-00 |
— | ||
|
15
|
15
275-23122-60-00
Cover, Outer 1
|
275-23122-60-00 |
— | ||
|
16
|
16
341-85111-00-00
Reflector, Front 1
|
341-85111-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
18
|
18
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
19
|
19
291-23163-61-00
Gasket (Lamp Stay)
|
291-23163-61-00 |
— | ||
|
20
|
20
447-23116-52-00
Guide, Cover Lower
|
447-23116-52-00 |
— | ||
|
21
|
21
291-23121-60-33
Cover, Upper 1
YAMAHA BLACK |
291-23121-60-33 |
— | ||
|
22
|
22
291-23131-60-33
Cover, Upper 2
YAMAHA BLACK |
291-23131-60-33 |
— | ||
|
23
|
23
168-23115-00-00
Guide, Cover Upper
|
168-23115-00-00 |
— | ||
|
24
|
24
214-23114-00-00
Gasket
|
214-23114-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
291-23111-60-00
Bolt, Cap
|
291-23111-60-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
291-23340-30-33
Under Bracket
|
291-23340-30-33 |
— | ||
|
27
|
27
18G-23128-00-00 Bolt, With Washer |
18G-23128-00-00 |
from US $7.37 |
||
|
28
|
28
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
29
|
29
256-23318-60-00
Holder, Cable 1
|
256-23318-60-00 |
— | ||
|
30
|
30
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
31
|
31
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
32
|
32
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
32
|
32
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
33
|
33
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
34
|
34
291-23167-61-00
Holder, Axle (291-23167-60)
291-23167-60 |
291-23167-61-00 |
— | ||
| replacement | |||||
|
34
|
34
999-99999-99-00
Not Available
291-23167-60 |
999-99999-99-00 |
— | ||
|
35
|
35
90116-08261-00 Bolt, Stud |
90116-08261-00 |
from US $1.33 |
||
|
36
|
36
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
37
|
37
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
37
|
37
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
38
|
38
263-21581-00-00
Stay, Plate Ftng 1
|
263-21581-00-00 |
— | ||
|
39
|
39
263-21591-00-00
Stay, Plate Ftng 2
|
263-21591-00-00 |
— | ||
|
40
|
40
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.72 |
||
|
41
|
41
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
41
|
41
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
42
|
42
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
42
|
42
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
43
|
43
93501-04011-00 Ball |
93501-04011-00 |
from US $1.36 |
||
|
44
|
44
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
44
|
44
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
45
|
45
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
45
|
45
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
46
|
46
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
46
|
46
93503-16003-00 Ball |
93503-16003-00 |
from US $1.36 |
||
|
47
|
47
122-23416-00-00 Cover, Ball Race 2 |
122-23416-00-00 |
from US $2.69 |
||
|
48
|
48
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
48
|
48
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
48
|
48
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
49
|
49
275-23435-02-33
Crown, Handle
|
275-23435-02-33 |
— | ||
|
50
|
50
97313-08045-00 Bolt, Hexagon |
97313-08045-00 |
from US $4.11 |
||
| replacement | |||||
|
50
|
50
97013-08045-00 Bolt |
97013-08045-00 |
from US $4.11 |
||
|
51
|
51
95303-08800-00 Nut (Crown) (93501-08800-00)93501-08800-00 |
95303-08800-00 |
from US $3.12 |
||
|
52
|
52
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
53
|
53
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
53
|
53
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
53
|
53
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
53
|
53
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
53
|
53
97013-10030-00 Bolt (8J7)8J7 97303-10030-00 |
97013-10030-00 |
from US $10.06 |
||
|
54
|
54
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.36 |
||
|
55
|
55
902-09140-22-00
Washer, Spec''l Shap (214-23443
214-23443 |
902-09140-22-00 |
— | ||
|
56
|
56
901-01141-13-00
Bolt (214-23451-10)
214-23451-10 |
901-01141-13-00 |
— | ||
|
57
|
57
90202-06008-00 Washer, Plate |
90202-06008-00 |
from US $2.69 |
||
|
58
|
58
90201-06061-00 Washer, Plate |
90201-06061-00 |
from US $1.35 |
||
|
59
|
59
214-23419-01-00
Shaft, Damper
|
214-23419-01-00 |
— | ||
|
60
|
60
315-23441-00-93
Holder, Handle Upr
|
315-23441-00-93 |
— | ||
|
61
|
61
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
61
|
61
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
61
|
61
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
61
|
61
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
62
|
62
214-23492-00-00
Bolt
|
214-23492-00-00 |
— | ||
|
63
|
63
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
64
|
64
5G2-23490-00-00
Hdlbr Smy Dmpr Assembly
|
5G2-23490-00-00 |
— | ||
|
65
|
65
263-23485-00-00
Plate, Number
|
263-23485-00-00 |
— | ||
|
66
|
66
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
66
|
66
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
66
|
66
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
66
|
66
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
67
|
67
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
68
|
68
902-01060-73-00
Washer, Plate
|
902-01060-73-00 |
— | ||
| replacement | |||||
|
68
|
68
90201-06086-00 Washer, Plate |
90201-06086-00 |
from US $1.98 |
||
|
69
|
69
263-23487-00-00
Stay, Plate
|
263-23487-00-00 |
— | ||
|
70
|
70
932-10670-57-00
O-Ring
|
932-10670-57-00 |
— | ||
