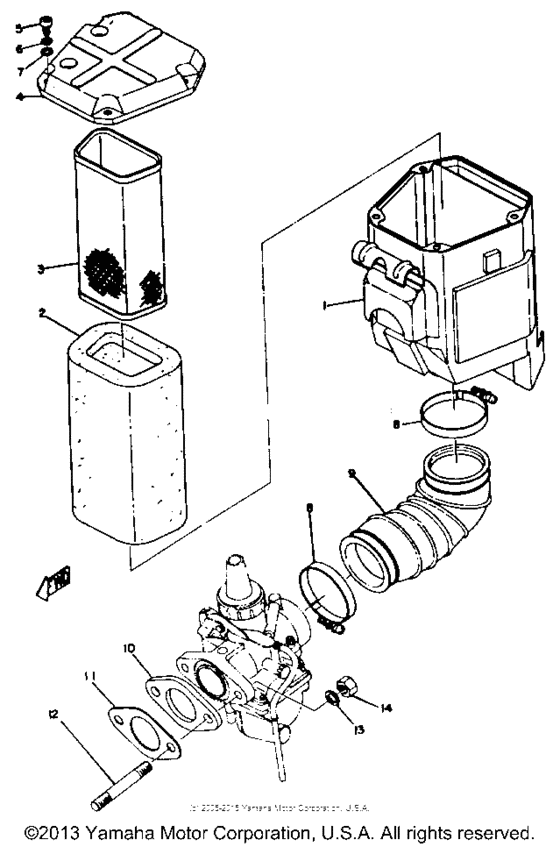

Air cleaner Diagram Yamaha RT1/ RT2/ RT3
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 200
- Model
- RT2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
308-14411-00-00
Case, Air Cleaner 1
|
308-14411-00-00 |
— | ||
|
2
|
2
308-14451-09-00 Element, Air Clnr |
308-14451-09-00 |
from US $40.12 |
||
| replacement | |||||
|
2
|
2
308-14451-08-00 |
308-14451-08-00 |
US $19.76 |
||
|
3
|
3
308-14458-00-00
Guide, Element
|
308-14458-00-00 |
— | ||
|
4
|
4
308-14412-00-00
Cap, Cleaner Case 1
|
308-14412-00-00 |
— | ||
|
5
|
5
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
8
|
8
904-60540-62-00
Band
|
904-60540-62-00 |
— | ||
|
9
|
9
311-14453-00-00
Joint, Air Clnr 1
|
311-14453-00-00 |
— | ||
|
9
|
9
308-14453-00-00
Joint, Air Clnr 1
|
308-14453-00-00 |
— | ||
|
10
|
10
311-13555-00-00
Manifold, Intake
|
311-13555-00-00 |
— | ||
|
11
|
11
275-13556-00-00
Gasket, Man
|
275-13556-00-00 |
— | ||
| replacement | |||||
|
11
|
11
275-13556-09-00
element
|
275-13556-09-00 |
— | ||
|
12
|
12
90116-08166-00 Bolt, Stud |
90116-08166-00 |
from US $10.20 |
||
| replacement | |||||
|
12
|
12
90116-08408-00 Bolt, Stud |
90116-08408-00 |
from US $10.20 |
||
|
13
|
13
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
14
|
14
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
14
|
14
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
