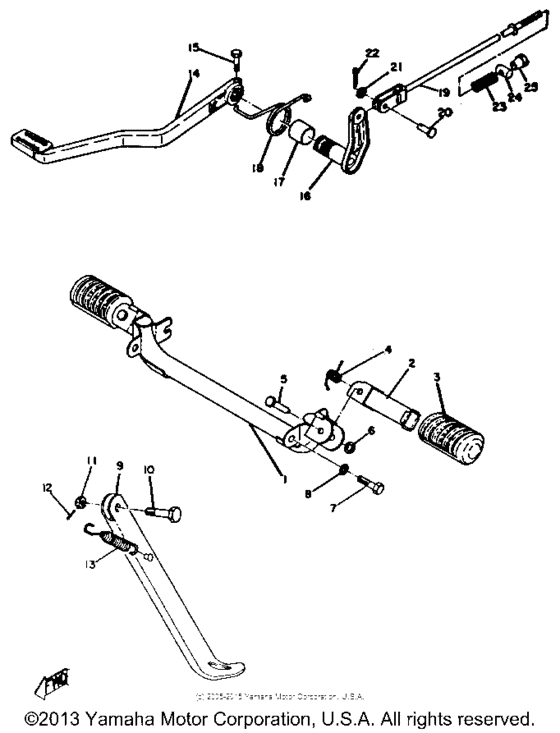

Stand foot rest brake pedal Diagram Yamaha RT1/ RT2/ RT3
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 200
- Model
- RT2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
214-27411-00-00
Footrest 1
|
214-27411-00-00 |
— | ||
|
2
|
2
214-27421-00-00 Footrest 2 |
214-27421-00-00 |
from US $8.08 |
||
|
3
|
3
214-27413-00-00 Cover, Footrest |
214-27413-00-00 |
from US $15.30 |
||
|
4
|
4
90508-20023-00 Spring, Torsion |
90508-20023-00 |
from US $1.70 |
||
|
5
|
5
90243-08006-00 Pin |
90243-08006-00 |
from US $4.68 |
||
|
6
|
6
90201-06042-00 Washer, Plate |
90201-06042-00 |
from US $1.70 |
||
|
7
|
7
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
7
|
7
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
7
|
7
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
8
|
8
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
9
|
9
214-27311-01-00
Stand, Side
|
214-27311-01-00 |
— | ||
|
10
|
10
90102-10006-00 Bolt, With Hole (278-27317-00) |
90102-10006-00 |
from US $8.64 |
||
|
11
|
11
953-03109-00-00 Nut, Castle |
953-03109-00-00 |
from US $5.29 |
||
| replacement | |||||
|
11
|
11
953-07109-00-00 Nut, Castle |
953-07109-00-00 |
from US $4.11 |
||
|
12
|
12
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
13
|
13
905-07290-04-00 Spring, Tension (214-27316-00)214-27316-00 |
905-07290-04-00 |
US $8.22 |
||
| replacement | |||||
|
13
|
13
90506-26270-00 Spring, Tension (1L9)214-27316-00 |
90506-26270-00 |
from US $8.22 |
||
|
14
|
14
214-27211-00-33
Pedal, Brake
|
214-27211-00-33 |
— | ||
|
15
|
15
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
15
|
15
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
16
|
16
214-27212-00-00
Shaft, Brake Pedal
|
214-27212-00-00 |
— | ||
|
17
|
17
903-87201-77-00
Collar
|
903-87201-77-00 |
— | ||
|
18
|
18
905-08400-77-00
Spring, Torsion (214-27216-00)
214-27216-00 |
905-08400-77-00 |
— | ||
|
19
|
19
275-27231-00-00
Rod, Brake
|
275-27231-00-00 |
— | ||
|
20
|
20
90240-06006-00 Pin, Clevis |
90240-06006-00 |
from US $3.68 |
||
|
21
|
21
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
22
|
22
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
22
|
22
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
23
|
23
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.81 |
||
|
24
|
24
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
25
|
25
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
