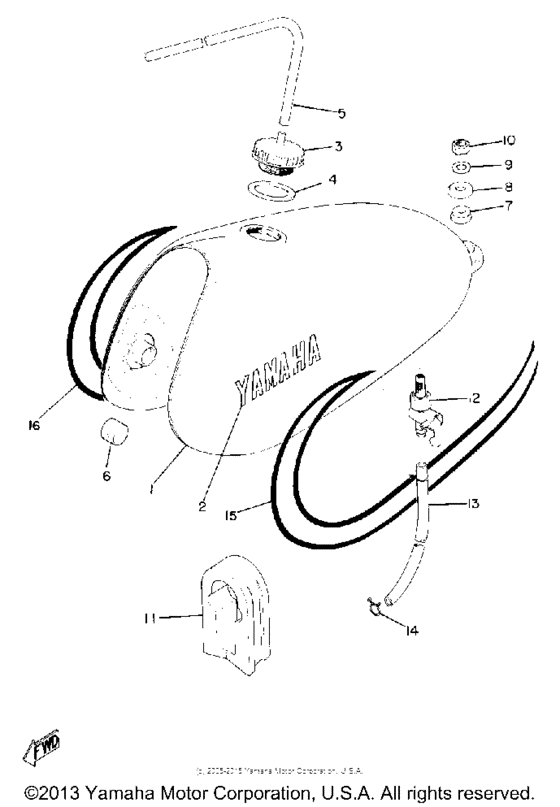

Fuel tank Diagram Yamaha RT1/ RT2/ RT3
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 200
- Model
- RT2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
322-24110-00-01
Fuel Tank
|
322-24110-00-01 |
— | ||
|
1
|
1
322-24110-00-02
Fuel Tank
|
322-24110-00-02 |
— | ||
|
2
|
2
322-24161-00-00
Emblem, Yamaha
|
322-24161-00-00 |
— | ||
| replacements | |||||
|
2
|
2
99221-00140-00 Emblem, Yamaha |
99221-00140-00 |
from US $5.80 |
||
|
2
|
2
992-41001-40-00 Emblem, Yamaha |
992-41001-40-00 |
from US $15.73 |
||
|
3
|
3
322-24611-02-00 Body, Cap |
322-24611-02-00 |
from US $48.08 |
||
|
4
|
4
904-30370-52-00 Gasket (322-24612-00)322-24612-00 |
904-30370-52-00 |
from US $4.82 |
||
|
5
|
5
90445-09111-00 Hose (L675) |
90445-09111-00 |
from US $19.84 |
||
| replacement | |||||
|
5
|
5
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
6
|
6
278-24181-00-00
Damper, Locating 1
|
278-24181-00-00 |
— | ||
| replacement | |||||
|
6
|
6
3TB-24181-00-00 Damper, Locating 1 |
3TB-24181-00-00 |
from US $4.96 |
||
|
7
|
7
90480-25189-00 Grommet |
90480-25189-00 |
from US $2.70 |
||
|
8
|
8
902-09101-01-00
Washer, Spec''l Shap
|
902-09101-01-00 |
— | ||
|
9
|
9
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
10
|
10
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
10
|
10
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
11
|
11
322-24183-00-00
Damper, Locating 3
|
322-24183-00-00 |
— | ||
|
12
|
12
322-24500-02-00 Fuel Cock Assembly 1 (322-24500322-24500 |
322-24500-02-00 |
from US $97.13 |
||
|
13
|
13
904-45111-49-00 Hose |
904-45111-49-00 |
US $8.36 |
||
|
14
|
14
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
14
|
14
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.39 |
||
|
14
|
14
90467-11106-00 Clip |
90467-11106-00 |
from US $1.39 |
||
|
15
|
15
322-24150-00-00
Stripe, Fuel Tank
|
322-24150-00-00 |
— | ||
|
15
|
15
324-24150-00-00
Stripe, Fuel Tank
|
324-24150-00-00 |
— | ||
|
16
|
16
322-24160-00-00
Emblem Assembly
|
322-24160-00-00 |
— | ||
|
16
|
16
324-24160-00-00
Emblem Assembly
|
324-24160-00-00 |
— | ||
