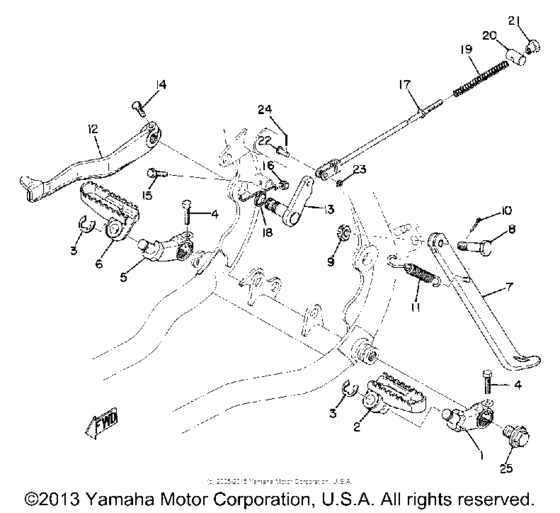

Stand - footrest - brake pedal Diagram Yamaha RT1/ RT2/ RT3
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 200
- Model
- RT2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
322-27412-00-00
Bracket, Footrest 1
|
322-27412-00-00 |
— | ||
|
2
|
2
363-27411-00-00
Footrest 1
|
363-27411-00-00 |
— | ||
|
3
|
3
93430-10015-00 Circlip |
93430-10015-00 |
from US $2.41 |
||
|
4
|
4
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
5
|
5
322-27422-00-00
Bracket, Footrest 2
|
322-27422-00-00 |
— | ||
|
6
|
6
363-27421-00-00
Footrest 2
|
363-27421-00-00 |
— | ||
|
7
|
7
214-27311-01-00
Stand, Side
|
214-27311-01-00 |
— | ||
|
8
|
8
90102-10006-00 Bolt, With Hole (278-27317-00)278-27317-00 |
90102-10006-00 |
from US $8.64 |
||
|
9
|
9
953-03109-00-00 Nut, Castle |
953-03109-00-00 |
from US $5.29 |
||
| replacement | |||||
|
9
|
9
953-07109-00-00 Nut, Castle |
953-07109-00-00 |
from US $4.11 |
||
|
10
|
10
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
11
|
11
905-07290-04-00 Spring, Tension (214-27316-00)214-27316-00 |
905-07290-04-00 |
US $8.22 |
||
| replacement | |||||
|
11
|
11
90506-26270-00 Spring, Tension (1L9)214-27316-00 |
90506-26270-00 |
from US $8.22 |
||
|
12
|
12
322-27211-01-33
Pedal, Brake
|
322-27211-01-33 |
— | ||
|
13
|
13
322-27212-00-00
Shaft, Brake Pedal
|
322-27212-00-00 |
— | ||
|
14
|
14
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
14
|
14
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
15
|
15
901-09063-39-00
Bolt
|
901-09063-39-00 |
— | ||
|
16
|
16
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
16
|
16
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
17
|
17
322-27231-00-00
Rod, Brake
|
322-27231-00-00 |
— | ||
|
18
|
18
905-08290-48-00
Spring, Torsion
|
905-08290-48-00 |
— | ||
|
19
|
19
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.81 |
||
|
20
|
20
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
21
|
21
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
22
|
22
90240-06006-00 Pin, Clevis |
90240-06006-00 |
from US $3.68 |
||
|
23
|
23
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
24
|
24
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
24
|
24
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
25
|
25
901-09123-35-00
Bolt
|
901-09123-35-00 |
— | ||
|
26
|
26
905-08260-39-00
Spring, Torsion
|
905-08260-39-00 |
— | ||
|
27
|
27
905-08261-12-00
Spring, Torsion
|
905-08261-12-00 |
— | ||
