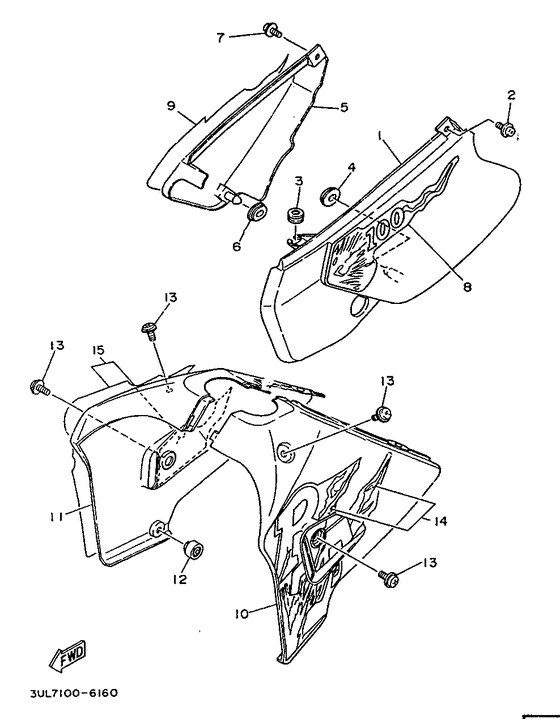

Side cover Diagram Yamaha RT100
- Year
- 1996
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3UL7
- Sales region
- Canada (999)
- Engine Capacity
- 100
- Model
- RT100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3UL-21711-10-98
Cover, Side 1
Low gloss black |
3UL-21711-10-98 |
— | ||
|
02
|
02
90159-06059-00 Screw, With Washer |
90159-06059-00 |
from US $3.68 |
||
| replacement | |||||
|
02
|
02
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
03
|
03
90480-12325-00 Grommet |
90480-12325-00 |
from US $3.12 |
||
|
04
|
04
90480-01401-00 Grommet (41Y) |
90480-01401-00 |
from US $3.05 |
||
|
05
|
05
3UL-21721-10-00
Cover, Side 2
|
3UL-21721-10-00 |
— | ||
|
06
|
06
90480-01401-00 Grommet (41Y) |
90480-01401-00 |
from US $3.05 |
||
|
07
|
07
90159-06059-00 Screw, With Washer |
90159-06059-00 |
from US $3.68 |
||
| replacement | |||||
|
07
|
07
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
08
|
08
3UL-2173E-60-00
Graphic 1
|
3UL-2173E-60-00 |
— | ||
|
09
|
09
3UL-2173F-60-00
Graphic 2
|
3UL-2173F-60-00 |
— | ||
|
10
|
10
3UL-2137W-30-00
Scoop, Air 1
|
3UL-2137W-30-00 |
— | ||
|
11
|
11
3UL-2137X-30-00
Scoop, Air 2
|
3UL-2137X-30-00 |
— | ||
|
12
|
12
3JD-24181-00-00
Damper, Locating 1
|
3JD-24181-00-00 |
— | ||
|
13
|
13
90159-06160-00 Screw, With Washer |
90159-06160-00 |
from US $1.70 |
||
|
14
|
14
3UL-2173L-30-00
Graphic Set 1
|
3UL-2173L-30-00 |
— | ||
|
15
|
15
3UL-2174L-30-00
Graphic Set 2
|
3UL-2174L-30-00 |
— | ||
