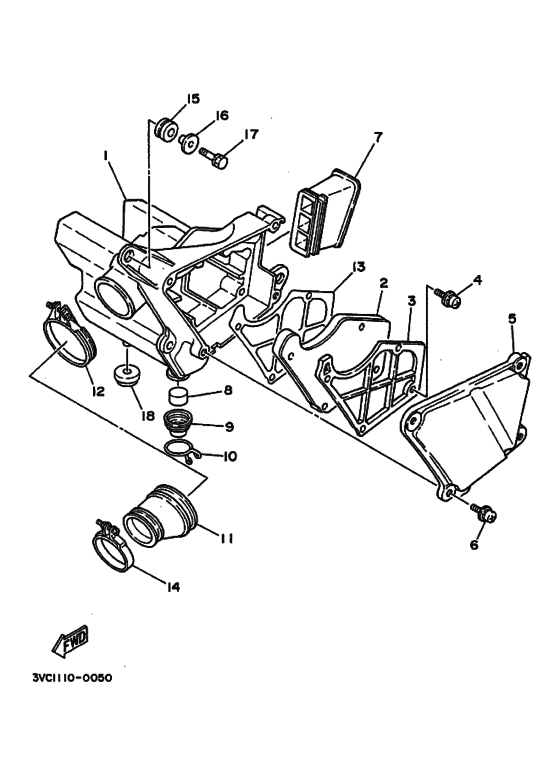

Air cleaner Diagram Yamaha RT180
- Year
- 1991
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4BN1
- Sales region
- Europe (010)
- Engine Capacity
- 180
- Color Variant
- A
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58W-E4401-00-00
Air Cleaner Case Assembly
|
58W-E4401-00-00 |
— | ||
|
2
|
2
3VC-14451-00-00 Element, Air Cleaner |
3VC-14451-00-00 |
US $12.58 |
||
| replacement | |||||
|
2
|
2
3VC-14451-10-00
Element, Air Cleaner (3Vc-1445
|
3VC-14451-10-00 |
— | ||
|
3
|
3
58W-E4468-00-00 Plate, Element Fitting |
58W-E4468-00-00 |
US $7.14 |
||
|
4
|
4
976-02053-20-09
Screw,pan Hd.w/wsh
|
976-02053-20-09 |
— | ||
| replacement | |||||
|
4
|
4
976-02053-20-00
Screw, Pan Head
|
976-02053-20-00 |
— | ||
|
5
|
5
3VC-E4402-00-00
Cap Assembly, Air Cleaner
|
3VC-E4402-00-00 |
— | ||
| replacement | |||||
|
5
|
5
5L9-E4412-00-00
Filter Case Cap
|
5L9-E4412-00-00 |
— | ||
|
6
|
6
976-02053-20-09
Screw,pan Hd.w/wsh
|
976-02053-20-09 |
— | ||
| replacement | |||||
|
6
|
6
976-02053-20-00
Screw, Pan Head
|
976-02053-20-00 |
— | ||
|
7
|
7
5L9-E4437-00-00
Duct
|
5L9-E4437-00-00 |
— | ||
|
8
|
8
5L9-E4462-00-00
Seal
|
5L9-E4462-00-00 |
— | ||
|
9
|
9
5L9-E4417-00-00 Cover 1 |
5L9-E4417-00-00 |
US $5.89 |
||
| replacement | |||||
|
9
|
9
5L9-E4417-01-00 Cover 1 (5L9-E4417-00-00) |
5L9-E4417-01-00 |
US $5.89 |
||
|
10
|
10
904-67288-01-09
Clip, Scissor
|
904-67288-01-09 |
— | ||
| replacement | |||||
|
10
|
10
904-67288-01-00
Clip
|
904-67288-01-00 |
— | ||
|
11
|
11
5L9-E4453-00-00
Joint, Air Cleaner 1
|
5L9-E4453-00-00 |
— | ||
|
12
|
12
904-60611-33-09
Clamp, Hose
|
904-60611-33-09 |
— | ||
| replacement | |||||
|
12
|
12
904-60611-33-00
Clamp, Hose
|
904-60611-33-00 |
— | ||
|
13
|
13
3VC-14458-00-00
Guide
|
3VC-14458-00-00 |
— | ||
|
14
|
14
904-60431-72-09 Clamp, Hose |
904-60431-72-09 |
US $13.43 |
||
| replacement | |||||
|
14
|
14
90460-43179-00 Clamp, Hose |
90460-43179-00 |
from US $7.65 |
||
|
15
|
15
904-80141-02-09 Grommet |
904-80141-02-09 |
US $6.35 |
||
| replacement | |||||
|
15
|
15
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
16
|
16
903-87073-91-09 Collar |
903-87073-91-09 |
US $5.71 |
||
| replacement | |||||
|
16
|
16
903-87073-91-00 Collar |
903-87073-91-00 |
from US $2.08 |
||
|
17
|
17
975-02061-25-09 Bolt, W/washer |
975-02061-25-09 |
US $2.52 |
||
| replacement | |||||
|
17
|
17
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
18
|
18
904-80181-71-09 Grommet |
904-80181-71-09 |
US $5.62 |
||
| replacement | |||||
|
18
|
18
90480-18171-00 Grommet |
90480-18171-00 |
from US $1.70 |
||
