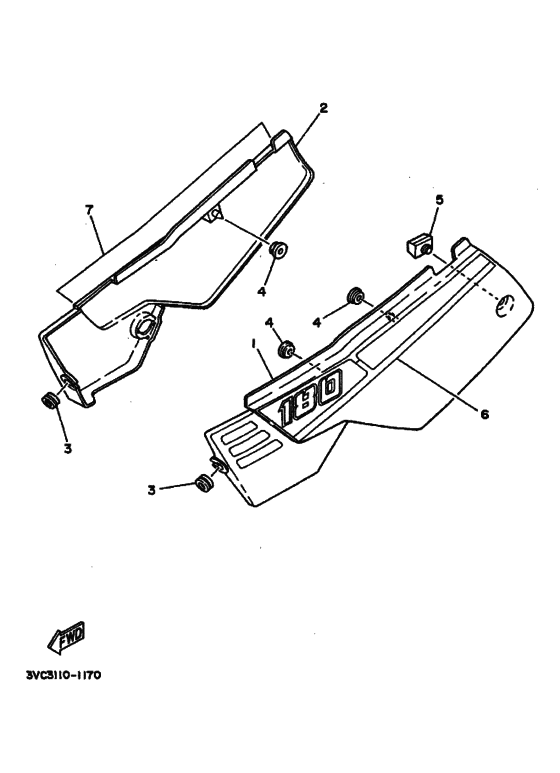

Side cover Diagram Yamaha RT180
- Year
- 1991
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4BN1
- Sales region
- Europe (010)
- Engine Capacity
- 180
- Color Variant
- A
- Model
- RT180
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3VC-F1711-20-00
Side Cover (Left), Black
|
3VC-F1711-20-00 |
— | ||
|
2
|
2
3VC-F1721-20-00
Side Cover 2
|
3VC-F1721-20-00 |
— | ||
|
3
|
3
904-80120-53-09 Grommet |
904-80120-53-09 |
US $6.35 |
||
| replacement | |||||
|
3
|
3
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.94 |
||
|
4
|
4
904-80131-97-09 Grommet |
904-80131-97-09 |
US $6.35 |
||
| replacement | |||||
|
4
|
4
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.36 |
||
|
5
|
5
502-29472-00-00
Pad, Seat
|
502-29472-00-00 |
— | ||
|
6
|
6
3VC-F1786-00-00
Emblem 6
UR WHITE/RED |
3VC-F1786-00-00 |
— | ||
|
6
|
6
3VC-F1786-10-00
Emblem 6
UR WHITE/BLUE |
3VC-F1786-10-00 |
— | ||
|
7
|
7
3VC-F1787-00-00 Emblem 7UR WHITE/RED |
3VC-F1787-00-00 |
US $77.45 |
||
|
7
|
7
3VC-F1787-10-00
Emblem 7
UR WHITE/BLUE |
3VC-F1787-10-00 |
— | ||
