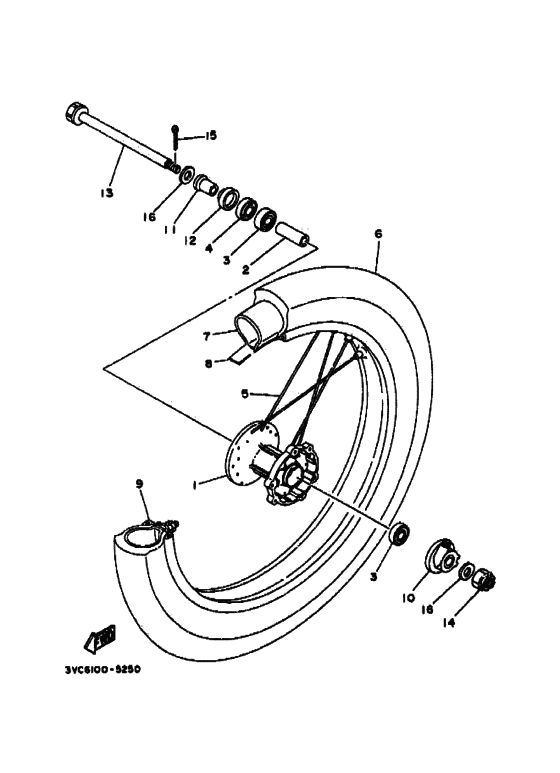

Front wheel Diagram Yamaha RT180
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4BN4
- Sales region
- Europe (010)
- Engine Capacity
- 180
- Color Variant
- A
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4AN-F5111-00-98
Hub, Front
LOW GLOSS BLACK |
4AN-F5111-00-98 |
— | ||
|
2
|
2
90560-15290-00 Spacer |
90560-15290-00 |
from US $7.37 |
||
|
3
|
3
933-06202-09-00
Bearing
|
933-06202-09-00 |
— | ||
| replacement | |||||
|
3
|
3
93306-20205-00 Bearing |
93306-20205-00 |
from US $8.05 |
||
|
4
|
4
931-02208-27-09 Oil Seal |
931-02208-27-09 |
US $9.16 |
||
| replacement | |||||
|
4
|
4
93102-20281-00 Oil Seal |
93102-20281-00 |
from US $3.89 |
||
|
5
|
5
4LR-F5104-00-00
Spoke Set, Front
|
4LR-F5104-00-00 |
— | ||
|
6
|
6
941-08218-F5-00
Tire (80/100-21 51P Mt21 Tt)
80/100-21 MT21 |
941-08218-F5-00 |
— | ||
|
7
|
7
942-27218-48-00
Tube (80/100-21 Tr4)
80/100-21 MT21 |
942-27218-48-00 |
— | ||
| replacement | |||||
|
7
|
7
942-2721W-51-00 Tube (80/100-21)80/100-21 MT21 |
942-2721W-51-00 |
US $64.64 |
||
|
8
|
8
94325-21117-00 Band, Rim (1.85-21)3.00-21 |
94325-21117-00 |
from US $4.39 |
||
| replacement | |||||
|
8
|
8
94330-21084-00 Band, Rim (1.60-21)3.00-21 |
94330-21084-00 |
from US $4.39 |
||
|
9
|
9
944-18218-84-09 Rim (1.85-21)1.85-21 |
944-18218-84-09 |
US $187.88 |
||
| replacement | |||||
|
9
|
9
944-18218-84-00 Rim (1.85-21)1.85-21 |
944-18218-84-00 |
US $193.07 |
||
|
10
|
10
4BN-F5190-00-98 Housing, GearLOW GLOSS BLACK |
4BN-F5190-00-98 |
US $54.67 |
||
|
11
|
11
903-87158-09-09
Collar
|
903-87158-09-09 |
— | ||
|
12
|
12
2TY-F5118-00-00 Cover, Hub Dust |
2TY-F5118-00-00 |
from US $10.63 |
||
| replacement | |||||
|
12
|
12
322-25118-00-00 Cover, Hub Dust |
322-25118-00-00 |
from US $10.63 |
||
|
13
|
13
34X-25181-00-00 Axle, Wheel |
34X-25181-00-00 |
from US $46.84 |
||
|
14
|
14
901-71140-06-09 Nut, Castle |
901-71140-06-09 |
US $8.66 |
||
| replacement | |||||
|
14
|
14
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $7.42 |
||
|
15
|
15
914-02300-28-09 Pin, Cotter |
914-02300-28-09 |
US $5.29 |
||
| replacement | |||||
|
15
|
15
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
16
|
16
902-0115W-32-09 Washer, Plate |
902-0115W-32-09 |
US $0.56 |
||
