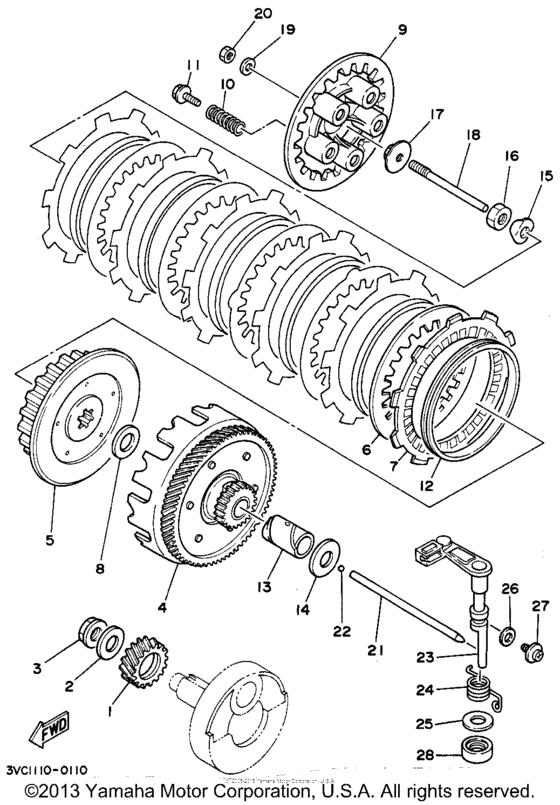

Clutch Diagram Yamaha RT180
- Year
- 1990
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5L9-16111-00-00 Gear, Primary Drive |
5L9-16111-00-00 |
US $24.10 |
||
| replacement | |||||
|
1
|
1
5L9-16111-01-00 Gear, Primary Drive |
5L9-16111-01-00 |
US $42.86 |
||
|
2
|
2
902-08128-00-09 Washer, Conical Spring |
902-08128-00-09 |
US $1.22 |
||
| replacement | |||||
|
2
|
2
902-08128-00-00 Washer, Conical Spring |
902-08128-00-00 |
US $1.04 |
||
|
3
|
3
901-79122-44-00
Nut
|
901-79122-44-00 |
— | ||
| replacement | |||||
|
3
|
3
90179-12659-00 Nut |
90179-12659-00 |
from US $1.81 |
||
|
4
|
4
1W1-16150-01-00
Primary Driven Gear Comp. (71
|
1W1-16150-01-00 |
— | ||
|
5
|
5
1G8-16371-00-00
Boss, Clutch
|
1G8-16371-00-00 |
— | ||
|
6
|
6
2A6-16324-00-00 Plate, Clutch 1 |
2A6-16324-00-00 |
from US $13.99 |
||
|
7
|
7
36X-16321-00-00 Plate, Friction |
36X-16321-00-00 |
from US $15.50 |
||
|
8
|
8
90201-174E1-00 Washer, Plate (4V2) |
90201-174E1-00 |
from US $9.45 |
||
|
9
|
9
1W1-16351-00-00
Plate, Pressure 1
|
1W1-16351-00-00 |
— | ||
|
10
|
10
90501-20474-00 Spring, Compression |
90501-20474-00 |
from US $4.11 |
||
|
11
|
11
90159-05011-00 Screw, With Washer |
90159-05011-00 |
from US $1.70 |
||
|
12
|
12
307-16367-00-00
Ring, Cushion
|
307-16367-00-00 |
— | ||
|
13
|
13
90560-17147-00 Spacer |
90560-17147-00 |
from US $18.42 |
||
|
14
|
14
90201-174E1-00 Washer, Plate (4V2) |
90201-174E1-00 |
from US $9.45 |
||
|
15
|
15
90215-14204-00 Washer, Lock (2K6) |
90215-14204-00 |
from US $3.04 |
||
|
16
|
16
90170-14171-00 Nut |
90170-14171-00 |
from US $2.70 |
||
|
17
|
17
5L9-E6358-00-00 Plate, Push |
5L9-E6358-00-00 |
US $6.50 |
||
| replacement | |||||
|
17
|
17
1W1-16358-01-00 Plate, Push |
1W1-16358-01-00 |
from US $12.06 |
||
|
18
|
18
5L9-E6356-00-00 Rod, Push 1 |
5L9-E6356-00-00 |
US $5.08 |
||
|
19
|
19
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
20
|
20
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
21
|
21
502-E6357-00-00 Rod, Push 2 |
502-E6357-00-00 |
US $6.66 |
||
|
22
|
22
935-03168-02-09 Ball |
935-03168-02-09 |
US $2.12 |
||
| replacement | |||||
|
22
|
22
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
23
|
23
5L9-E6380-01-00 Push Lever Assembly |
5L9-E6380-01-00 |
US $48.01 |
||
|
24
|
24
90508-20345-00 Spring, Torsion |
90508-20345-00 |
from US $5.81 |
||
|
25
|
25
90201-14217-00 Washer, Plate |
90201-14217-00 |
from US $1.70 |
||
|
26
|
26
904-30080-69-00
Gasket
|
904-30080-69-00 |
— | ||
| replacement | |||||
|
26
|
26
90430-08204-00 Gasket(3Aj) |
90430-08204-00 |
from US $1.70 |
||
|
27
|
27
90149-08108-00 Screw, Special Shape |
90149-08108-00 |
from US $7.79 |
||
|
28
|
28
931-04148-00-09 Oil Seal |
931-04148-00-09 |
US $11.16 |
||
| replacement | |||||
|
28
|
28
93104-14059-00 Oil Seal |
93104-14059-00 |
from US $4.72 |
||
