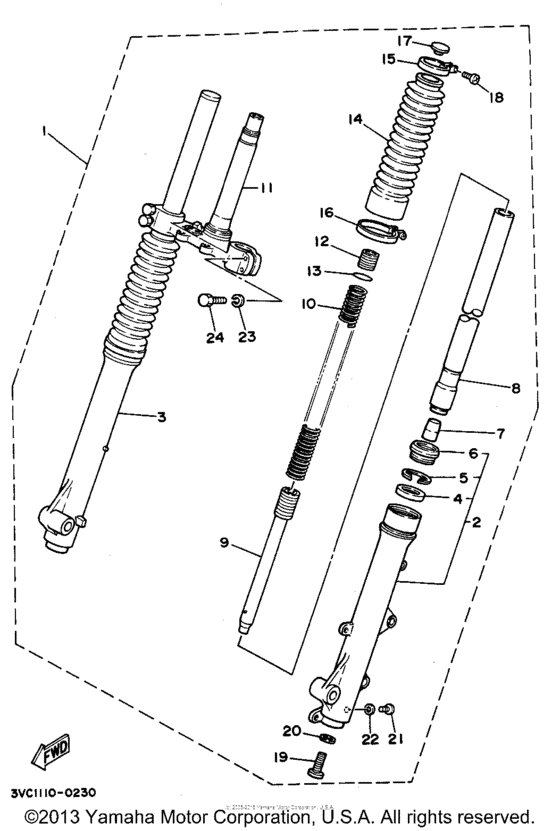

Front fork Diagram Yamaha RT180
- Year
- 1990
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3UY-84751-00-00
Bracket, I
|
3UY-84751-00-00 |
— | ||
|
2
|
2
2TW-F3106-00-00
Outer Tube Comp. (L.h)
|
2TW-F3106-00-00 |
— | ||
| replacement | |||||
|
2
|
2
2TW-F3102-00-00
Front Fork L Assy
|
2TW-F3102-00-00 |
— | ||
|
3
|
3
2TW-F3107-00-00 Outer Tube Comp. (R.h) |
2TW-F3107-00-00 |
US $865.03 |
||
|
4
|
4
58W-F3145-00-00
Oil Seal
|
58W-F3145-00-00 |
— | ||
|
5
|
5
934-20480-01-09 Oil Seal, Stopper |
934-20480-01-09 |
US $1.30 |
||
|
6
|
6
5L9-F3144-10-00 Seal, Dust |
5L9-F3144-10-00 |
US $70.40 |
||
|
7
|
7
5L9-F3173-10-00 Spindle, Taper |
5L9-F3173-10-00 |
US $13.34 |
||
|
8
|
8
016-F3110-00-00
Inner Tube Comp. 1
|
016-F3110-00-00 |
— | ||
| replacement | |||||
|
8
|
8
2TW-F3110-A0-00
Inner Tube Comp.1
|
2TW-F3110-A0-00 |
— | ||
|
9
|
9
016-F3170-01-00
Cylinder. Comp., Front Fork (
|
016-F3170-01-00 |
— | ||
|
10
|
10
58W-F3141-00-00
Spring, Front Fork
|
58W-F3141-00-00 |
— | ||
|
11
|
11
2TW-F3340-00-00
Under Bracket Comp
|
2TW-F3340-00-00 |
— | ||
| replacement | |||||
|
11
|
11
2TW-F3340-10-35
Under Bracket
|
2TW-F3340-10-35 |
— | ||
|
12
|
12
5L9-F3111-10-00 Bolt, Cap |
5L9-F3111-10-00 |
US $28.89 |
||
|
13
|
13
58W-F3114-00-00 Gasket |
58W-F3114-00-00 |
US $9.18 |
||
|
14
|
14
37N-23191-10-00
Boot
|
37N-23191-10-00 |
— | ||
|
15
|
15
5L9-F3192-10-00
Band
|
5L9-F3192-10-00 |
— | ||
|
16
|
16
8Y8-83550-00-00 Speedometer Cable Assy90460-58141-00 |
8Y8-83550-00-00 |
from US $21.23 |
||
|
17
|
17
5L9-F3168-10-00 Cap, Fornt Fork |
5L9-F3168-10-00 |
US $1.78 |
||
|
18
|
18
925-06040-15-09 Screw, Pan Head |
925-06040-15-09 |
US $5.29 |
||
| replacement | |||||
|
18
|
18
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
19
|
19
3V9-F3181-00-00 Bolt, Hexagon Socket Head |
3V9-F3181-00-00 |
US $7.45 |
||
| replacement | |||||
|
19
|
19
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
20
|
20
902-01108-01-09 Gasket |
902-01108-01-09 |
US $14.24 |
||
| replacement | |||||
|
20
|
20
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
21
|
21
925-01040-08-09 Screw, Pan Head (92503-04008-92503-04008- |
925-01040-08-09 |
US $5.29 |
||
| replacement | |||||
|
21
|
21
98580-04008-00 Screw, Pan Head (713)92503-04008- |
98580-04008-00 |
from US $1.39 |
||
|
22
|
22
5L9-F3129-00-00
Gasket, Drain Plug
|
5L9-F3129-00-00 |
— | ||
|
23
|
23
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
24
|
24
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
24
|
24
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
24
|
24
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
24
|
24
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
