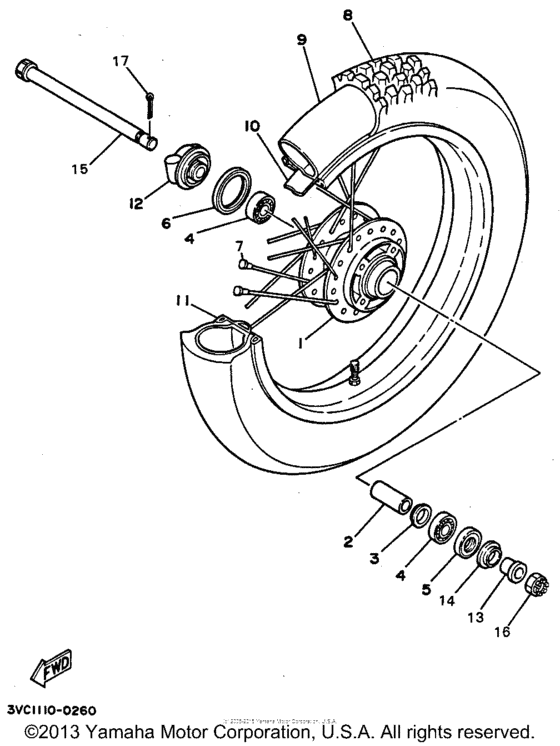

Front wheel Diagram Yamaha RT180
- Year
- 1990
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2TW-F5111-00-AC
Hub, Front
|
2TW-F5111-00-AC |
— | ||
| replacement | |||||
|
1
|
1
2TW-F5111-00-NW
Hub, Front
|
2TW-F5111-00-NW |
— | ||
|
2
|
2
3V9-F5117-00-00
Spacer, Bearing
|
3V9-F5117-00-00 |
— | ||
|
3
|
3
504-29531-00-00
Flange, Spacer
|
504-29531-00-00 |
— | ||
|
4
|
4
933-06202-09-00
Bearing
|
933-06202-09-00 |
— | ||
| replacement | |||||
|
4
|
4
93306-20205-00 Bearing |
93306-20205-00 |
from US $8.05 |
||
|
5
|
5
93106-22016-00 Oil Seal |
93106-22016-00 |
from US $7.08 |
||
|
6
|
6
93105-45017-00 Oil Seal |
93105-45017-00 |
from US $10.83 |
||
|
7
|
7
3VC-F5104-00-00
Complete Front Wheel Spoke Set
|
3VC-F5104-00-00 |
— | ||
|
8
|
8
94108-215H9-00
Tire
80/100-21-4PR BRIDGESTONE |
94108-215H9-00 |
— | ||
|
9
|
9
94209-21229-00 301 Tube80/100-21 M/C TR4 BRIDGESTONE |
94209-21229-00 |
US $40.70 |
||
|
10
|
10
94330-21084-00 Band, Rim (1.60-21)1.60-21 BRIDGESTONE |
94330-21084-00 |
from US $4.39 |
||
|
11
|
11
944-18218-53-09 Rim (1.85-21)1.85-21 |
944-18218-53-09 |
US $229.61 |
||
| replacement | |||||
|
11
|
11
944-18218-53-00 Rim (1.85-21)1.85-21 |
944-18218-53-00 |
US $229.61 |
||
|
12
|
12
3VC-F5191-00-00
Housing, Gear
|
3VC-F5191-00-00 |
— | ||
|
13
|
13
903-87158-05-09
Collar
|
903-87158-05-09 |
— | ||
| replacement | |||||
|
13
|
13
903-87158-05-00 Collar |
903-87158-05-00 |
US $14.31 |
||
|
14
|
14
3V9-F5118-00-00 Cover, Hub Dust |
3V9-F5118-00-00 |
US $6.70 |
||
| replacements | |||||
|
14
|
14
3M5-25118-00-00 GASKET 1 |
3M5-25118-00-00 |
US $10.96 |
||
|
14
|
14
5HH-F5118-10-00
Hub Dust Cover
|
5HH-F5118-10-00 |
— | ||
|
15
|
15
2TW-F5181-01-00
Axle,wheel
|
2TW-F5181-01-00 |
— | ||
| replacement | |||||
|
15
|
15
2TW-F5181-00-00
HOSE,BRAKE 1
|
2TW-F5181-00-00 |
— | ||
|
16
|
16
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
16
|
16
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $7.42 |
||
|
17
|
17
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
17
|
17
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
