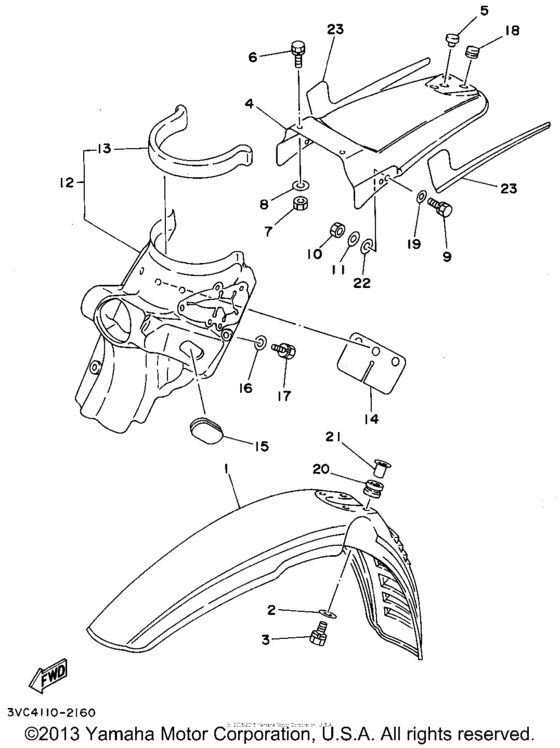

Fender Diagram Yamaha RT180
- Year
- 1992
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3VC-F1511-20-00
Fender, Front
UR WHT |
3VC-F1511-20-00 |
— | ||
| replacement | |||||
|
1
|
1
58W-F1511-30-00
Front Fender
UR WHT |
58W-F1511-30-00 |
— | ||
|
2
|
2
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
2
|
2
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
3
|
3
975-02061-25-09 Bolt, W/washer |
975-02061-25-09 |
US $2.52 |
||
| replacement | |||||
|
3
|
3
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.52 |
||
|
4
|
4
58W-F1611-30-00
Fender, Rear
UR WHT |
58W-F1611-30-00 |
— | ||
|
5
|
5
904-80168-00-09
Grommet
|
904-80168-00-09 |
— | ||
| replacement | |||||
|
5
|
5
904-80168-00-00
Grommet
|
904-80168-00-00 |
— | ||
|
6
|
6
975-02061-14-09 Bolt, With Washer |
975-02061-14-09 |
US $4.16 |
||
| replacement | |||||
|
6
|
6
975-0N064-14-00 Bolt, With Washer |
975-0N064-14-00 |
US $3.96 |
||
|
7
|
7
956-01062-00-00
Nut, U-Flange
|
956-01062-00-00 |
— | ||
| replacement | |||||
|
7
|
7
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.52 |
||
|
8
|
8
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
8
|
8
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
9
|
9
975-02083-16-09 Bolt, With Washer |
975-02083-16-09 |
US $2.72 |
||
| replacement | |||||
|
9
|
9
975-02086-16-09 Bolt, With Washer |
975-02086-16-09 |
US $2.72 |
||
|
10
|
10
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
10
|
10
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
11
|
11
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
12
|
12
23K-F1620-00-00
Mud Guard Comp. (2Tw-F1620-00-0
|
23K-F1620-00-00 |
— | ||
|
13
|
13
5L9-F1639-00-00 Damper 2 |
5L9-F1639-00-00 |
US $14.94 |
||
|
14
|
14
5L9-F1621-00-00 Flap |
5L9-F1621-00-00 |
US $2.92 |
||
| replacement | |||||
|
14
|
14
1M1-21621-00-00 Flap |
1M1-21621-00-00 |
from US $8.82 |
||
|
15
|
15
90480-01254-00
Grommet
|
90480-01254-00 |
— | ||
|
16
|
16
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
16
|
16
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
17
|
17
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
17
|
17
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
17
|
17
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
18
|
18
904-80168-00-09
Grommet
|
904-80168-00-09 |
— | ||
| replacement | |||||
|
18
|
18
904-80168-00-00
Grommet
|
904-80168-00-00 |
— | ||
|
19
|
19
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
20
|
20
90480-14198-00 Grommet |
90480-14198-00 |
from US $4.39 |
||
|
21
|
21
903-87063-88-00
Collar
|
903-87063-88-00 |
— | ||
| replacement | |||||
|
21
|
21
90387-06158-00 Collar |
90387-06158-00 |
from US $1.66 |
||
|
22
|
22
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
23
|
23
3VC-F1660-00-00
Graphic Set, Rear Fender
|
3VC-F1660-00-00 |
— | ||
