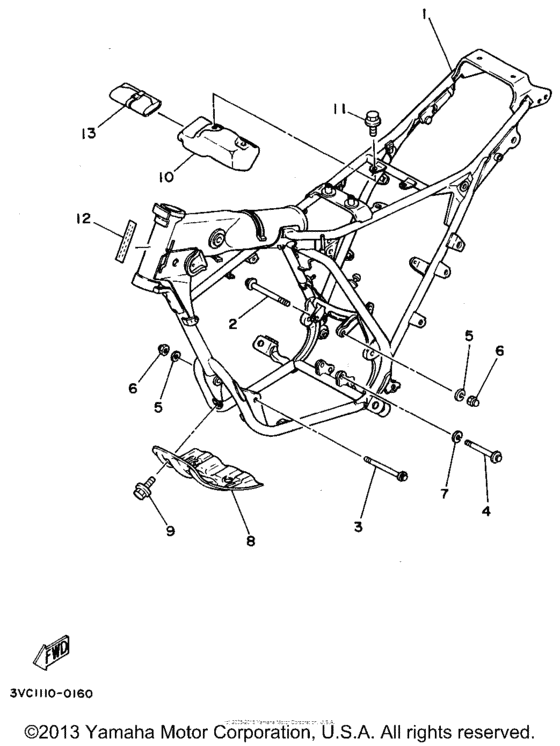

Frame Diagram Yamaha RT180
- Year
- 1992
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3VC-F1110-01-35
Frame Comp
|
3VC-F1110-01-35 |
— | ||
|
2
|
2
90105-08120-00 Bolt, Flange |
90105-08120-00 |
from US $7.51 |
||
| replacement | |||||
|
2
|
2
95817-08105-00 Bolt, Flange |
95817-08105-00 |
from US $7.79 |
||
|
3
|
3
90105-08099-00 Bolt, Flange |
90105-08099-00 |
from US $5.81 |
||
|
4
|
4
90105-10037-00 Bolt, Flange |
90105-10037-00 |
from US $6.52 |
||
|
5
|
5
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
6
|
6
901-79088-59-09 Nut |
901-79088-59-09 |
US $6.35 |
||
| replacement | |||||
|
6
|
6
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
7
|
7
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
8
|
8
5L9-F1471-00-00 Protector, Engine |
5L9-F1471-00-00 |
US $23.31 |
||
|
9
|
9
975-02062-12-09 Bolt |
975-02062-12-09 |
US $3.08 |
||
| replacement | |||||
|
9
|
9
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
10
|
10
5L9-F1170-00-00 Box Comp |
5L9-F1170-00-00 |
US $26.23 |
||
|
11
|
11
975-02062-10-09 Bolt, With Washer (97502-06210-97502-06210- |
975-02062-10-09 |
US $5.47 |
||
|
12
|
12
3VC-2179X-00-00
Plate, Epa U50
U50 |
3VC-2179X-00-00 |
— | ||
|
13
|
13
5L9-F8100-10-00
Tool Kit
|
5L9-F8100-10-00 |
— | ||
| replacement | |||||
|
13
|
13
4VW-F8100-01-00
Tool Kit
|
4VW-F8100-01-00 |
— | ||
