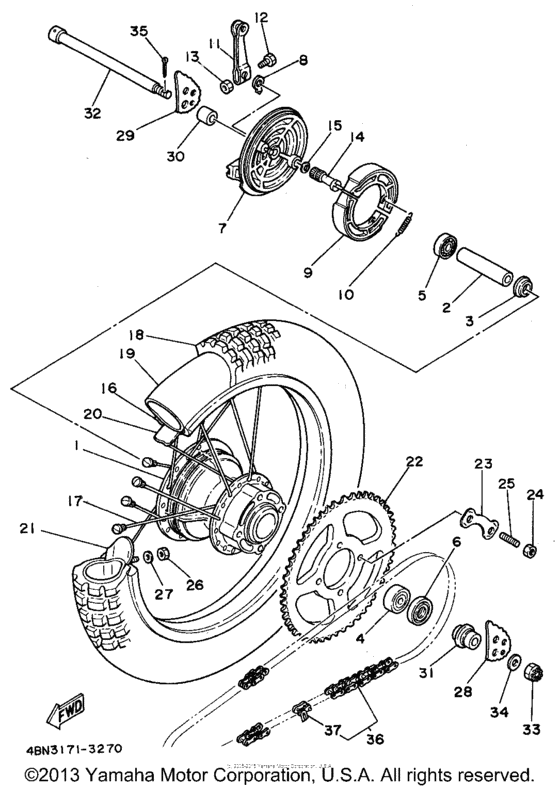

Rear wheel Diagram Yamaha RT180
- Year
- 1993
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
10V-25311-00-98 Hub, Rear |
10V-25311-00-98 |
from US $315.68 |
||
|
2
|
2
90560-15313-00 Spacer |
90560-15313-00 |
from US $25.93 |
||
|
3
|
3
146-25115-00-00 Flange, Spacer |
146-25115-00-00 |
from US $6.23 |
||
|
4
|
4
933-06302-02-00 Bearing (1H7) |
933-06302-02-00 |
from US $20.54 |
||
| replacement | |||||
|
4
|
4
93306-30212-00 Bearing |
93306-30212-00 |
from US $16.84 |
||
|
5
|
5
933-06202-09-00
Bearing
|
933-06202-09-00 |
— | ||
| replacement | |||||
|
5
|
5
93306-20205-00 Bearing |
93306-20205-00 |
from US $8.05 |
||
|
6
|
6
93106-26005-00 Oil Seal |
93106-26005-00 |
from US $7.08 |
||
|
7
|
7
10V-25321-00-98 Plate, Brake Shoe |
10V-25321-00-98 |
from US $161.65 |
||
|
8
|
8
3Y6-2533A-01-00 Plate, Indicator |
3Y6-2533A-01-00 |
from US $2.55 |
||
| replacement | |||||
|
8
|
8
5AD-F533A-00-00
Plate, Indicator
|
5AD-F533A-00-00 |
— | ||
|
9
|
9
3KG-W2536-00-00 Brake Shoe Kit |
3KG-W2536-00-00 |
from US $25.94 |
||
| replacement | |||||
|
9
|
9
3KG-W253E-00-00 Brake Shoe Kit |
3KG-W253E-00-00 |
from US $30.49 |
||
|
10
|
10
90506-16447-00 Spring, Tension(3Ls) |
90506-16447-00 |
from US $1.35 |
||
| replacement | |||||
|
10
|
10
90506-15260-00 Spring, Tension |
90506-15260-00 |
from US $1.35 |
||
|
11
|
11
1E2-25155-00-00 Lever, Camshaft 1 |
1E2-25155-00-00 |
from US $20.40 |
||
|
12
|
12
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
13
|
13
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
14
|
14
2RH-25351-00-00 Camshaft |
2RH-25351-00-00 |
from US $33.29 |
||
|
15
|
15
148-25359-00-00 Seal, Camshaft |
148-25359-00-00 |
from US $2.69 |
||
|
16
|
16
944-21181-83-00 Rim (2.15-18)2.15-18 |
944-21181-83-00 |
US $247.70 |
||
| replacement | |||||
|
16
|
16
944-21188-54-00 Rim (2.15-18)2.15-18 |
944-21188-54-00 |
US $206.30 |
||
|
17
|
17
10V-25304-01-00 Spoke Set, Rear |
10V-25304-01-00 |
from US $65.63 |
||
|
18
|
18
941-10188-F3-00 Tire (100/100-18 59P Mt21 Tt)100/100-18 59P MT21 TT PIRELLI YMDB |
941-10188-F3-00 |
US $236.59 |
||
|
19
|
19
942-10188-83-00 Tube (100/100-18 Mt21)100/100-18 MT21 PIRELLI YMDB |
942-10188-83-00 |
US $88.81 |
||
| replacement | |||||
|
19
|
19
94241-18153-00 Tube (4.10-18)100/100-18 MT21 PIRELLI YMDB |
94241-18153-00 |
US $114.34 |
||
|
20
|
20
94345-18081-00 Band, Rim (2.50-18) |
94345-18081-00 |
from US $4.39 |
||
| replacement | |||||
|
20
|
20
94340-18086-00 Band, Rim (2.50-18) |
94340-18086-00 |
from US $4.72 |
||
|
21
|
21
58W-F5394-00-00 Spacer, Bead |
58W-F5394-00-00 |
US $22.72 |
||
|
22
|
22
53V-25451-50-00 Sprocket, Driven (51T)51T |
53V-25451-50-00 |
US $50.24 |
||
|
23
|
23
10V-25412-00-00 Washer |
10V-25412-00-00 |
from US $6.38 |
||
|
24
|
24
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
24
|
24
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
24
|
24
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
25
|
25
90116-10390-00 Bolt, Stud |
90116-10390-00 |
from US $4.01 |
||
|
26
|
26
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
26
|
26
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
27
|
27
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
28
|
28
5L9-F5388-00-00 Puller, Chain 1 |
5L9-F5388-00-00 |
US $9.34 |
||
| replacement | |||||
|
28
|
28
1W2-25388-01-00 Puller, Chain 1 |
1W2-25388-01-00 |
from US $10.48 |
||
|
29
|
29
5L9-F5389-00-00 Puller, Chain 2 |
5L9-F5389-00-00 |
US $9.20 |
||
| replacement | |||||
|
29
|
29
1W2-25389-01-00 Puller, Chain 2 |
1W2-25389-01-00 |
from US $9.61 |
||
|
30
|
30
90387-15115-00
Collar
|
90387-15115-00 |
— | ||
|
31
|
31
23K-F5383-00-00
Collar, Wheel
|
23K-F5383-00-00 |
— | ||
|
32
|
32
5L9-F5381-01-00 Axle, Wheel |
5L9-F5381-01-00 |
US $8.17 |
||
| replacement | |||||
|
32
|
32
5X3-25381-00-00
Axle, Wheel (2A6-25381-00-00)
|
5X3-25381-00-00 |
— | ||
|
33
|
33
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
33
|
33
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $7.42 |
||
|
34
|
34
90201-15238-00 Washer, Plate |
90201-15238-00 |
from US $4.11 |
||
|
35
|
35
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
35
|
35
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
36
|
36
94580-33126-00 Did Chain Did428S-126L |
94580-33126-00 |
from US $47.18 |
||
| replacement | |||||
|
36
|
36
94580-24126-00 Chain(53V) |
94580-24126-00 |
from US $52.50 |
||
|
37
|
37
94580-33126-00 Did Chain Did428S-126L |
94580-33126-00 |
from US $47.18 |
||
| replacement | |||||
|
37
|
37
94580-24126-00 Chain(53V) |
94580-24126-00 |
from US $52.50 |
||
