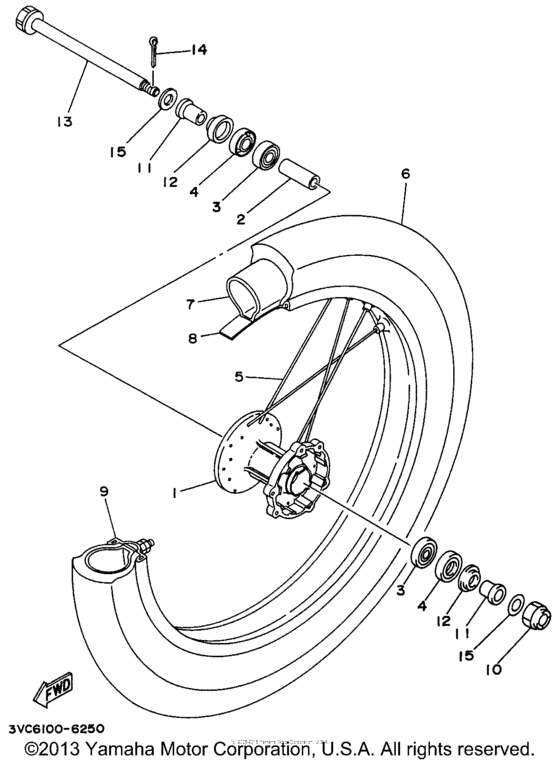

Front wheel Diagram Yamaha RT180
- Year
- 1996
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4AN-F5111-00-98
Hub, Front
098 |
4AN-F5111-00-98 |
— | ||
|
2
|
2
90560-15290-00 Spacer |
90560-15290-00 |
from US $7.37 |
||
|
3
|
3
933-06202-09-00
Bearing
|
933-06202-09-00 |
— | ||
| replacement | |||||
|
3
|
3
93306-20205-00 Bearing |
93306-20205-00 |
from US $8.05 |
||
|
4
|
4
931-02208-27-09 Oil Seal |
931-02208-27-09 |
US $9.16 |
||
| replacement | |||||
|
4
|
4
93102-20281-00 Oil Seal |
93102-20281-00 |
from US $3.89 |
||
|
5
|
5
4LR-25104-00-00 Spoke Set, Front |
4LR-25104-00-00 |
from US $132.91 |
||
|
6
|
6
941-08218-F5-00
Tire (80/100-21 51P Mt21 Tt)
80/100-21 51P MT21 TT |
941-08218-F5-00 |
— | ||
|
7
|
7
942-27218-48-09
Tube (80/100-21 Tr4)
80/100-21 TR4 |
942-27218-48-09 |
— | ||
| replacements | |||||
|
7
|
7
942-27218-48-00
Tube (80/100-21 Tr4)
80/100-21 TR4 |
942-27218-48-00 |
— | ||
|
7
|
7
942-2721W-51-00 Tube (80/100-21)80/100-21 TR4 |
942-2721W-51-00 |
US $64.64 |
||
|
8
|
8
94330-21084-00 Band, Rim (1.60-21)1.60-21 |
94330-21084-00 |
from US $4.39 |
||
|
9
|
9
944-1821W-02-09 Rim (1.85-21)1.85-21 |
944-1821W-02-09 |
US $203.54 |
||
| replacements | |||||
|
9
|
9
944-18218-53-00 Rim (1.85-21)1.85-21 |
944-18218-53-00 |
US $229.61 |
||
|
9
|
9
944-18218-84-00 Rim (1.85-21)1.85-21 |
944-18218-84-00 |
US $193.07 |
||
|
10
|
10
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $7.42 |
||
|
11
|
11
903-87158-C9-00 Collar |
903-87158-C9-00 |
US $11.57 |
||
| replacement | |||||
|
11
|
11
90387-15600-00 Collar |
90387-15600-00 |
from US $10.06 |
||
|
12
|
12
2TY-F5118-00-00 Cover, Hub Dust |
2TY-F5118-00-00 |
from US $10.63 |
||
| replacement | |||||
|
12
|
12
322-25118-00-00 Cover, Hub Dust |
322-25118-00-00 |
from US $10.63 |
||
|
13
|
13
34X-25181-00-00 Axle, Wheel |
34X-25181-00-00 |
from US $46.84 |
||
|
14
|
14
914-01300-28-09 Pin, Cotter |
914-01300-28-09 |
US $0.11 |
||
|
15
|
15
90201-15238-00 Washer, Plate |
90201-15238-00 |
from US $4.11 |
||
