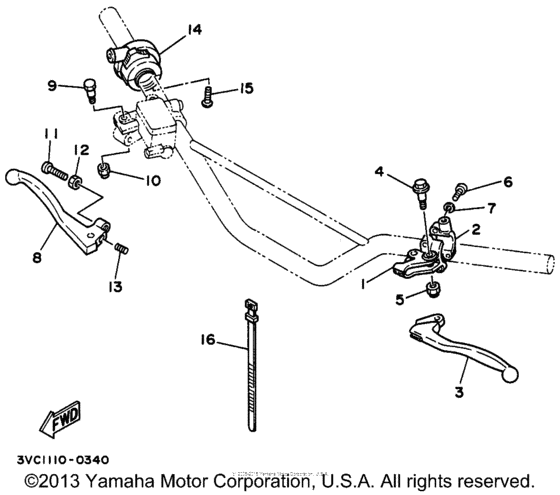

Handle switch & lever Diagram Yamaha RT180
- Year
- 1996
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2TY-H2911-00-00 Holder, Lever 1 |
2TY-H2911-00-00 |
from US $22.39 |
||
|
2
|
2
2TY-H2915-01-00 Holder, Lever Under |
2TY-H2915-01-00 |
from US $20.81 |
||
| replacement | |||||
|
2
|
2
2TY-H2915-02-00 Holder, Lever 1 |
2TY-H2915-02-00 |
US $10.87 |
||
|
3
|
3
4AN-H3912-00-00 Lever 1 |
4AN-H3912-00-00 |
from US $23.04 |
||
|
4
|
4
90109-06798-00 Bolt |
90109-06798-00 |
from US $2.36 |
||
| replacement | |||||
|
4
|
4
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.60 |
||
|
5
|
5
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
6
|
6
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
6
|
6
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
7
|
7
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
8
|
8
4AN-H3922-00-00
Lever 2
|
4AN-H3922-00-00 |
— | ||
|
9
|
9
90109-06774-00 Bolt |
90109-06774-00 |
from US $4.91 |
||
| replacement | |||||
|
9
|
9
90109-062A8-00 Bolt |
90109-062A8-00 |
from US $6.66 |
||
|
10
|
10
901-8506W-00-09 Nut, Self-Locking |
901-8506W-00-09 |
US $3.02 |
||
| replacement | |||||
|
10
|
10
901-85068-02-00 Nut, Self-Locking |
901-85068-02-00 |
from US $1.25 |
||
|
11
|
11
901-54068-02-09 Screw, Binding |
901-54068-02-09 |
US $3.22 |
||
| replacement | |||||
|
11
|
11
901-54068-02-00 Screw, Binding |
901-54068-02-00 |
US $3.10 |
||
|
12
|
12
971-70060-10-09 Nut |
971-70060-10-09 |
US $5.29 |
||
| replacement | |||||
|
12
|
12
90170-06010-00 Nut |
90170-06010-00 |
from US $2.08 |
||
|
13
|
13
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
|
14
|
14
1R6-83976-01-00 Switch, Handle 1 |
1R6-83976-01-00 |
from US $28.62 |
||
|
15
|
15
985-02080-22-09 Bolt, Flange |
985-02080-22-09 |
US $2.52 |
||
| replacement | |||||
|
15
|
15
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
|
16
|
16
5L9-H3936-00-00
Band, Switch Cord
|
5L9-H3936-00-00 |
— | ||
