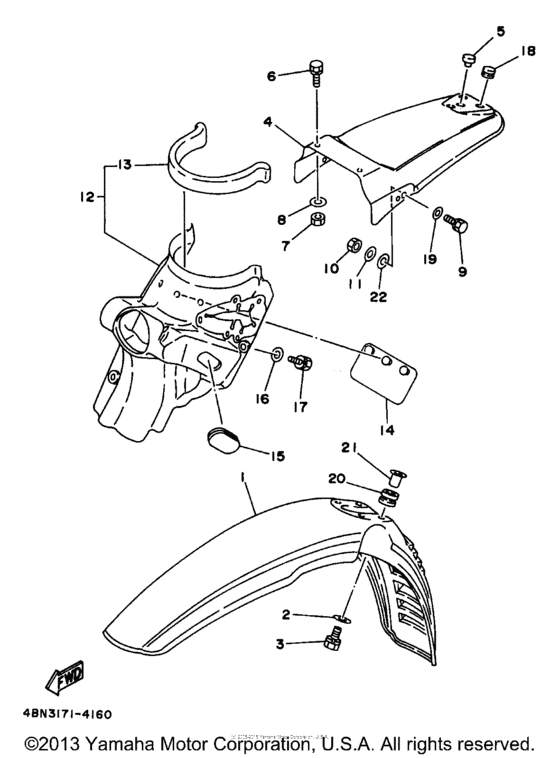

Fender Diagram Yamaha RT180
- Year
- 1997
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BN-F1511-10-00 Fender, Front |
4BN-F1511-10-00 |
US $82.46 |
||
|
2
|
2
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
2
|
2
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
3
|
3
975-02064-25-00
Bolt, With Washer
|
975-02064-25-00 |
— | ||
|
4
|
4
58W-F1611-30-00
Fender, Rear
|
58W-F1611-30-00 |
— | ||
|
5
|
5
904-80168-00-00
Grommet
|
904-80168-00-00 |
— | ||
|
6
|
6
975-02064-14-00
Bolt, With Washer
|
975-02064-14-00 |
— | ||
|
7
|
7
95302-06600-00 Nut, Hexagon |
95302-06600-00 |
US $1.07 |
||
| replacement | |||||
|
7
|
7
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
8
|
8
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
8
|
8
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
9
|
9
975-02086-16-00 Bolt, With Washer |
975-02086-16-00 |
US $2.72 |
||
| replacement | |||||
|
9
|
9
975-02086-16-09 Bolt, With Washer |
975-02086-16-09 |
US $2.72 |
||
|
10
|
10
988-02082-00-00 Nut |
988-02082-00-00 |
US $2.13 |
||
| replacement | |||||
|
10
|
10
812-14594-00-00 Nut |
812-14594-00-00 |
from US $2.13 |
||
|
11
|
11
92907-08200-00 Washer |
92907-08200-00 |
from US $1.66 |
||
|
12
|
12
2TW-F1620-00-00
Mud Guard Comp
|
2TW-F1620-00-00 |
— | ||
|
13
|
13
2A6-21639-00-00 Damper 2 |
2A6-21639-00-00 |
from US $16.58 |
||
|
14
|
14
1M1-21621-00-00 Flap |
1M1-21621-00-00 |
from US $8.82 |
||
|
15
|
15
90480-01254-00
Grommet
|
90480-01254-00 |
— | ||
|
16
|
16
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
16
|
16
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
17
|
17
975-02064-16-00
Bolt, With Washer
|
975-02064-16-00 |
— | ||
|
18
|
18
904-80168-00-00
Grommet
|
904-80168-00-00 |
— | ||
|
19
|
19
92902-08600-00 Washer, Plate |
92902-08600-00 |
US $1.66 |
||
| replacement | |||||
|
19
|
19
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
20
|
20
90480-14198-00 Grommet |
90480-14198-00 |
from US $4.39 |
||
|
21
|
21
903-87063-88-00
Collar
|
903-87063-88-00 |
— | ||
| replacement | |||||
|
21
|
21
90387-06158-00 Collar |
90387-06158-00 |
from US $1.66 |
||
|
22
|
22
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
