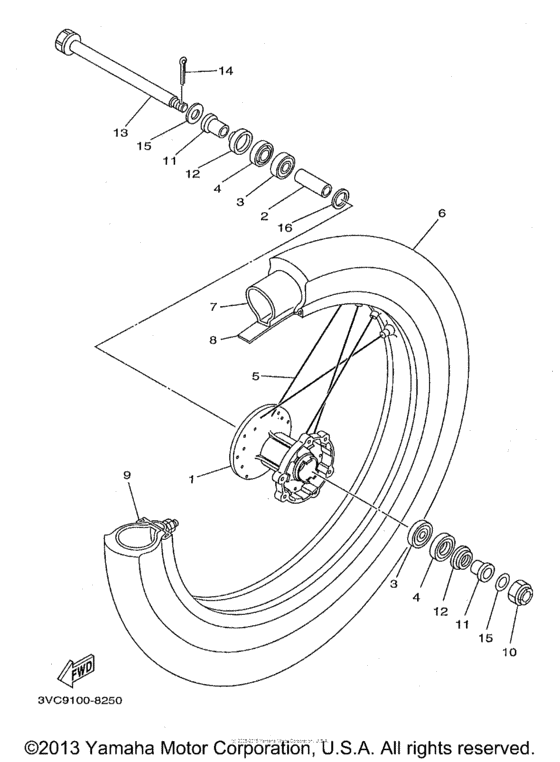

Front wheel Diagram Yamaha RT180
- Year
- 1998
- Sales region
- USA
- Engine Capacity
- 180
- Model
- RT180
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4AN-F5111-00-98
Hub, Front
|
4AN-F5111-00-98 |
— | ||
|
2
|
2
90560-15293-00 Spacer(1Ee) |
90560-15293-00 |
from US $7.65 |
||
|
3
|
3
933-06202-09-00
Bearing
|
933-06202-09-00 |
— | ||
| replacement | |||||
|
3
|
3
93306-20205-00 Bearing |
93306-20205-00 |
from US $8.05 |
||
|
4
|
4
931-02208-27-09 Oil Seal |
931-02208-27-09 |
US $9.16 |
||
| replacement | |||||
|
4
|
4
93102-20281-00 Oil Seal |
93102-20281-00 |
from US $3.89 |
||
|
5
|
5
4LR-25104-00-00 Spoke Set, Front |
4LR-25104-00-00 |
from US $132.91 |
||
|
6
|
6
941-08218-F5-00
Tire (80/100-21 51P Mt21 Tt)
80/100-21 51P MT21 TT |
941-08218-F5-00 |
— | ||
|
7
|
7
942-27218-48-09
Tube (80/100-21 Tr4)
80/100-21 TR4 |
942-27218-48-09 |
— | ||
| replacements | |||||
|
7
|
7
942-27218-48-00
Tube (80/100-21 Tr4)
80/100-21 TR4 |
942-27218-48-00 |
— | ||
|
7
|
7
942-2721W-51-00 Tube (80/100-21)80/100-21 TR4 |
942-2721W-51-00 |
US $64.64 |
||
|
8
|
8
94325-21117-00 Band, Rim (1.85-21)1.85-21 |
94325-21117-00 |
from US $4.39 |
||
| replacement | |||||
|
8
|
8
94330-21084-00 Band, Rim (1.60-21)1.85-21 |
94330-21084-00 |
from US $4.39 |
||
|
9
|
9
944-1821W-02-00 Rim (1.85-21)1.85-21 |
944-1821W-02-00 |
US $203.54 |
||
| replacement | |||||
|
9
|
9
944-18218-84-00 Rim (1.85-21)1.85-21 |
944-18218-84-00 |
US $193.07 |
||
|
10
|
10
901-71140-06-09 Nut, Castle |
901-71140-06-09 |
US $8.66 |
||
| replacement | |||||
|
10
|
10
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $7.42 |
||
|
11
|
11
903-87158-C9-09 Collar |
903-87158-C9-09 |
US $11.57 |
||
| replacement | |||||
|
11
|
11
90387-15600-00 Collar |
90387-15600-00 |
from US $10.06 |
||
|
12
|
12
2TY-F5118-00-00 Cover, Hub Dust |
2TY-F5118-00-00 |
from US $10.63 |
||
| replacement | |||||
|
12
|
12
322-25118-00-00 Cover, Hub Dust |
322-25118-00-00 |
from US $10.63 |
||
|
13
|
13
34X-25181-00-00 Axle, Wheel |
34X-25181-00-00 |
from US $46.84 |
||
|
14
|
14
91401-30028-00 Pin, Cotter |
91401-30028-00 |
from US $1.13 |
||
| replacement | |||||
|
14
|
14
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
15
|
15
902-01152-38-09 Washer, Plate |
902-01152-38-09 |
US $5.90 |
||
| replacement | |||||
|
15
|
15
90201-15238-00 Washer, Plate |
90201-15238-00 |
from US $4.11 |
||
|
16
|
16
504-29531-00-00
Flange, Spacer
|
504-29531-00-00 |
— | ||
