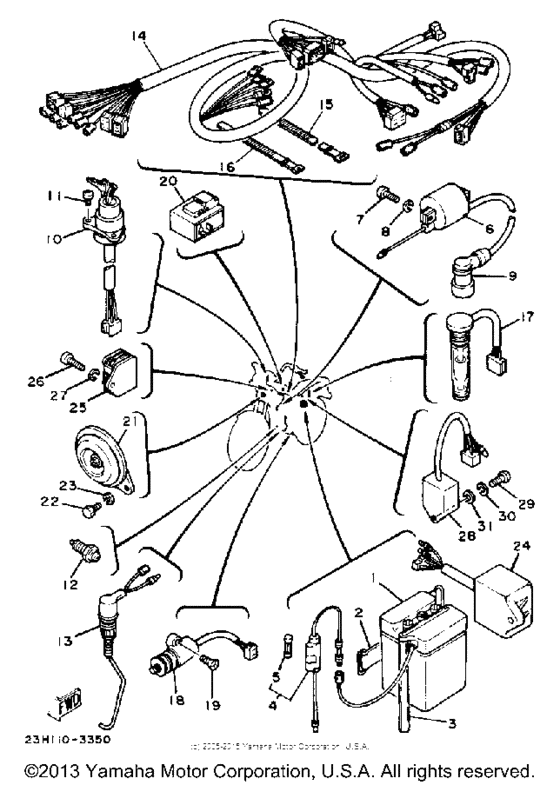

Electrical (1) Diagram Yamaha RX50
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 500
- Model
- RX50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BTG-6N42A-20-00
6N4-2A-2 Gs Battery
GS BATTERY |
BTG-6N42A-20-00 |
— | ||
| replacement | |||||
|
1
|
1
6N4-2A200-00-00
Bat 6N4-2A-2 Gs
GS BATTERY |
6N4-2A200-00-00 |
— | ||
|
2
|
2
2T4-82131-00-00 Band, Battery |
2T4-82131-00-00 |
from US $9.78 |
||
|
3
|
3
904-45084-E3-00
Hose (L1500)
|
904-45084-E3-00 |
— | ||
| replacement | |||||
|
3
|
3
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
4
|
4
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.33 |
||
| replacement | |||||
|
4
|
4
55K-82150-02-00 FUSE HOLDER ASSY |
55K-82150-02-00 |
from US $11.55 |
||
|
5
|
5
116-82151-00-00
Fuse (12V-10A)
12V-10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
5
|
5
1A0-82151-00-00 Fuse (12V-10A)12V-10A |
1A0-82151-00-00 |
from US $4.96 |
||
|
6
|
6
5M0-82310-M0-00
Ignition Coil Assemb
|
5M0-82310-M0-00 |
— | ||
| replacements | |||||
|
6
|
6
4RP-82310-29-00 Ignition Coil Assembly |
4RP-82310-29-00 |
from US $89.39 |
||
|
6
|
6
4RP-82310-28-00 Ignition Coil Assy |
4RP-82310-28-00 |
from US $91.57 |
||
|
6
|
6
4RP-82310-27-00
Ignition Coil Assy
|
4RP-82310-27-00 |
— | ||
|
6
|
6
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
7
|
7
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
56J-82370-00-00 Plug Cap AssyUR |
56J-82370-00-00 |
from US $16.43 |
||
|
9
|
9
5R2-82370-20-00 Plug Cap AssemblyUR W/NOISE SUPPRESSOR |
5R2-82370-20-00 |
from US $18.99 |
||
| replacements | |||||
|
9
|
9
166-82370-20-00 Plug Cap AssyUR W/NOISE SUPPRESSOR |
166-82370-20-00 |
from US $11.80 |
||
|
9
|
9
56J-82370-00-00 Plug Cap AssyUR W/NOISE SUPPRESSOR |
56J-82370-00-00 |
from US $16.43 |
||
|
10
|
10
5A1-82508-20-00
Main Switch Assembly (4U5-82508
4U5-82508 |
5A1-82508-20-00 |
— | ||
|
11
|
11
98901-04010-00 Screw, Bind (33V) |
98901-04010-00 |
from US $1.28 |
||
| replacement | |||||
|
11
|
11
98980-04010-00 Screw, Bind |
98980-04010-00 |
from US $1.39 |
||
|
12
|
12
2H7-82540-00-00
Neutral Switch Assy
|
2H7-82540-00-00 |
— | ||
| replacements | |||||
|
12
|
12
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
12
|
12
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $26.22 |
||
|
13
|
13
4U5-82530-10-00
New Genuine Part
IN PRICE BOOK 4U5- |
4U5-82530-10-00 |
— | ||
|
14
|
14
22W-W1442-00-00
Element, Air Clnr
IN PRICE BOOK |
22W-W1442-00-00 |
— | ||
|
15
|
15
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
16
|
16
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
17
|
17
2E7-85720-02-00
Oil Lvl Gauge Assembly
|
2E7-85720-02-00 |
— | ||
|
18
|
18
5V0-82566-00-00 Switch, Side Stand |
5V0-82566-00-00 |
from US $107.77 |
||
| replacement | |||||
|
18
|
18
33E-82566-00-00 Switch, Side Stand |
33E-82566-00-00 |
from US $118.82 |
||
|
19
|
19
987-06050-16-00
Screw, Flat Head
|
987-06050-16-00 |
— | ||
| replacement | |||||
|
19
|
19
98707-05016-00 Screw, Flat Head |
98707-05016-00 |
from US $1.35 |
||
|
20
|
20
20G-83350-60-00
Flasher Relay Assembly
|
20G-83350-60-00 |
— | ||
|
21
|
21
5U7-83371-00-00 Horn |
5U7-83371-00-00 |
US $94.78 |
||
| replacement | |||||
|
21
|
21
1M8-83371-40-00 Horn |
1M8-83371-40-00 |
from US $80.98 |
||
|
22
|
22
97026-06012-00 Bolt(85G) |
97026-06012-00 |
from US $1.21 |
||
| replacement | |||||
|
22
|
22
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.39 |
||
|
23
|
23
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
24
|
24
3M5-85540-M1-00 Cdi Unit Assembly |
3M5-85540-M1-00 |
from US $59.72 |
||
|
25
|
25
4F4-81910-60-00 Voltage Reg Assembly |
4F4-81910-60-00 |
from US $133.05 |
||
|
26
|
26
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
28
|
28
4Y3-85590-M0-00
Control Unit Assembly
|
4Y3-85590-M0-00 |
— | ||
|
29
|
29
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
29
|
29
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
30
|
30
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
31
|
31
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
31
|
31
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
31
|
31
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
31
|
31
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
