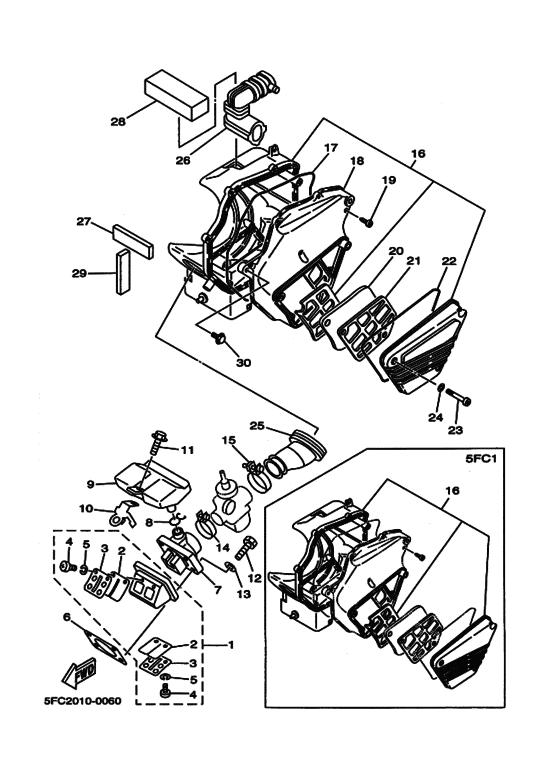

Intake Diagram Yamaha RZ50
- Year
- 2000
- Colour
- Radical White (RW; 00UJ)
- Model code
- 5FC2
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- RZ50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4EU-13610-00-00 Reed Valve Assyリードバルブアセンブリ; |
4EU-13610-00-00 |
US $150.59 |
||
|
2
|
2
3TU-13613-00-00 Reed, Valve．リード，バルブ; |
3TU-13613-00-00 |
US $31.88 |
||
|
3
|
3
4EU-13616-00-00 Stopper, Reed Valve．ストツパ，リードバルブ; |
4EU-13616-00-00 |
US $10.13 |
||
|
4
|
4
98507-03006-00 Screw, Pan Head．スクリユ，パンヘツド; |
98507-03006-00 |
from US $1.56 |
||
|
5
|
5
929-07031-00-00
Washer, Spring
．ワツシヤ; |
929-07031-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92990-03100-00 Washer, Spring．ワツシヤ; |
92990-03100-00 |
from US $1.21 |
||
|
6
|
6
87A-13621-00-00 Gasket, Valve Seatガスケツト，バルブシート; |
87A-13621-00-00 |
from US $4.11 |
||
|
7
|
7
4EU-13565-00-00 Joint, Carburetor |
4EU-13565-00-00 |
US $52.64 |
||
|
8
|
8
90467-15012-00 Clip |
90467-15012-00 |
from US $1.56 |
||
|
9
|
9
4KJ-13581-01-00 Chamber, Airチヤンバー，エア; |
4KJ-13581-01-00 |
US $29.53 |
||
|
10
|
10
4KJ-14291-10-00 Bracket 1 |
4KJ-14291-10-00 |
US $4.84 |
||
|
11
|
11
90159-06078-00 Screw, With Washer |
90159-06078-00 |
from US $1.77 |
||
|
12
|
12
970-07060-20-00
Bolt
ボルト; |
970-07060-20-00 |
— | ||
| replacement | |||||
|
12
|
12
970-17060-20-00 Boltボルト; |
970-17060-20-00 |
from US $1.16 |
||
|
13
|
13
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
14
|
14
90460-36174-00
Clamp, Hose
クランプ，ホース; |
90460-36174-00 |
— | ||
|
15
|
15
90460-41191-00 Clamp, Hose (5R2)クランプ，ホース; |
90460-41191-00 |
from US $7.79 |
||
|
16
|
16
5FC-W1441-10-00
Air Cleaner Case Comp
エアクリーナーケースコンプリート; |
5FC-W1441-10-00 |
— | ||
|
17
|
17
17W-14452-00-00 Sealシール; |
17W-14452-00-00 |
from US $9.49 |
||
| replacement | |||||
|
17
|
17
1VJ-14462-00-00 Sealシール; |
1VJ-14462-00-00 |
from US $11.12 |
||
|
18
|
18
17W-14421-00-00 Case, Air Cleaner 2ケース，エアクリーナー ２; |
17W-14421-00-00 |
from US $26.08 |
||
|
19
|
19
97707-40514-00 Screw, Tapping |
97707-40514-00 |
from US $1.21 |
||
| replacement | |||||
|
19
|
19
97707-40614-00 Screw, Pan Tap.2 Slit |
97707-40614-00 |
from US $1.21 |
||
|
20
|
20
17W-14451-00-00 Element, Air Clnrエレメント，エアクリーナ; |
17W-14451-00-00 |
from US $10.27 |
||
|
21
|
21
17W-14472-00-00
Plate, Element
プレート，エレメント; |
17W-14472-00-00 |
— | ||
|
22
|
22
17W-14462-00-00 Sealシール; |
17W-14462-00-00 |
from US $9.49 |
||
| replacement | |||||
|
22
|
22
1VJ-14462-00-00 Sealシール; |
1VJ-14462-00-00 |
from US $11.12 |
||
|
23
|
23
98507-06045-00 Screw, Pan Headスクリユ，パンヘツド; |
98507-06045-00 |
from US $1.66 |
||
|
24
|
24
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
25
|
25
5FC-14453-00-00 Joint, Air Cleaner 1ジヨイント，エアクリーナ １; |
5FC-14453-00-00 |
US $28.76 |
||
|
26
|
26
5FC-14437-00-00 Duct |
5FC-14437-00-00 |
US $26.59 |
||
|
27
|
27
41R-21717-00-00 Damper, Plateダンパ; |
41R-21717-00-00 |
from US $2.27 |
||
| replacement | |||||
|
27
|
27
905-20100-21-00 Damper, Plateダンパ; |
905-20100-21-00 |
from US $2.13 |
||
|
28
|
28
5FC-14467-00-00 Sealシール; |
5FC-14467-00-00 |
US $1.90 |
||
|
29
|
29
3KJ-15337-00-00 Damper 4ダンパ ４; |
3KJ-15337-00-00 |
from US $2.41 |
||
|
30
|
30
95807-06016-00 Bolt, Flange |
95807-06016-00 |
US $1.18 |
||
| replacement | |||||
|
30
|
30
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
