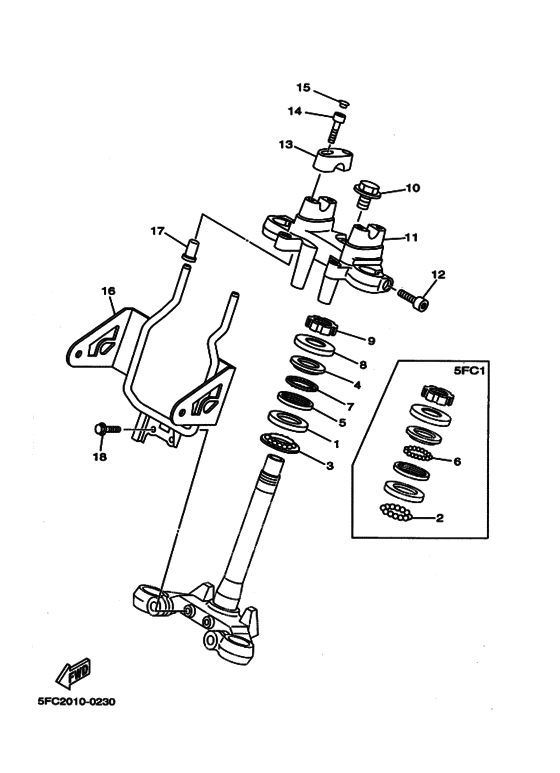

Steering Diagram Yamaha RZ50
- Year
- 2000
- Colour
- Radical White (RW; 00UJ)
- Model code
- 5FC2
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- RZ50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-23412-00-00 Race, Ball 2レース，ボール ２; |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
1
|
1
B6E-23412-00-00 Race, Ball 2レース，ボール ２; |
B6E-23412-00-00 |
from US $11.83 |
||
|
3
|
3
156-2341E-00-00 Retainer, Ball Bearing |
156-2341E-00-00 |
from US $9.38 |
||
| replacement | |||||
|
3
|
3
B6E-2341E-00-00 Retainer, Ball Bearing |
B6E-2341E-00-00 |
from US $8.64 |
||
|
4
|
4
22F-23411-01-00 Race, Ball 1レース，ボール １; |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
4
|
4
BP2-23411-00-00 Race, Ball 1レース，ボール １; |
BP2-23411-00-00 |
from US $9.71 |
||
|
5
|
5
22F-23412-01-00 Race, Ball 2レース，ボール ２; |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
5
|
5
BP2-23412-00-00 Race, Ball 2レース，ボール ２; |
BP2-23412-00-00 |
from US $8.74 |
||
|
7
|
7
22F-2341E-00-00 Retainer, Ball Bearing |
22F-2341E-00-00 |
from US $14.14 |
||
| replacement | |||||
|
7
|
7
BP2-2341E-00-00 Retainer, Ball Bearing |
BP2-2341E-00-00 |
from US $14.14 |
||
|
8
|
8
122-23416-00-00 Cover, Ball Race 2カバー，ボールレース ２; |
122-23416-00-00 |
from US $2.69 |
||
|
9
|
9
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
9
|
9
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
9
|
9
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
10
|
10
90105-14102-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-14102-00 |
from US $7.97 |
||
|
11
|
11
5FC-23435-00-00 Crown, Handle |
5FC-23435-00-00 |
US $186.45 |
||
|
12
|
12
91314-08030-00 Bolt, Hexagon Socket Headボルト; |
91314-08030-00 |
from US $1.18 |
||
|
13
|
13
4H7-23441-00-35 Holder, Handle Upperホルダ，ハンドルアツパ; シルバー |
4H7-23441-00-35 |
from US $26.64 |
||
| replacement | |||||
|
13
|
13
4H7-23441-01-35 Holder, Handle Upperホルダ，ハンドルアツパ; シルバー |
4H7-23441-01-35 |
from US $26.64 |
||
|
14
|
14
91314-08030-00 Bolt, Hexagon Socket Headボルト; |
91314-08030-00 |
from US $1.18 |
||
|
15
|
15
903-38081-63-00 Plug (Chrome) |
903-38081-63-00 |
from US $2.36 |
||
|
16
|
16
5FC-23174-00-00 Stay, Headlightステー，ヘツドライト; |
5FC-23174-00-00 |
US $99.48 |
||
|
17
|
17
3Y6-2317J-00-00 Damper 1 |
3Y6-2317J-00-00 |
from US $3.54 |
||
|
18
|
18
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
18
|
18
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
