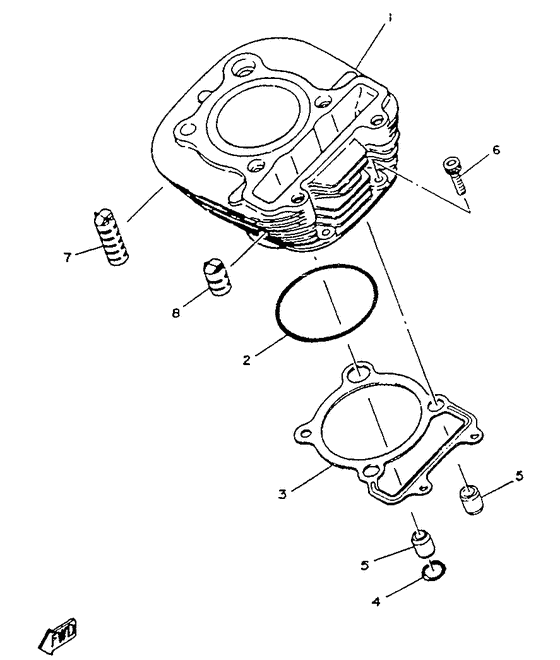

Cilindro Diagram Yamaha SR125
- Year
- 1987
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 2JW
- Sales region
- Spain (999)
- Engine Capacity
- 125
- Model
- SR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
25A-11310-00-00 Cylinder |
25A-11310-00-00 |
US $747.36 |
||
| replacement | |||||
|
01
|
01
25A-11310-01-00 Cylinder (5N0-11310-00) |
25A-11310-01-00 |
US $747.36 |
||
|
02
|
02
93210-63489-00 O-Ring |
93210-63489-00 |
from US $7.81 |
||
|
03
|
03
5N0-11351-00-00 Gasket, Cylinder |
5N0-11351-00-00 |
from US $16.43 |
||
| replacement | |||||
|
03
|
03
4DD-11351-00-00 Gasket, Cylinder (5N0-11351-00) |
4DD-11351-00-00 |
from US $13.70 |
||
|
04
|
04
93210-13361-00 O-Ring |
93210-13361-00 |
from US $1.39 |
||
|
05
|
05
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.66 |
||
|
06
|
06
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
06
|
06
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.39 |
||
|
07
|
07
5H0-11161-00-00 Absorber 1 |
5H0-11161-00-00 |
from US $2.02 |
||
|
08
|
08
5H0-11162-00-00 Absorber 1 |
5H0-11162-00-00 |
from US $6.30 |
||
| replacement | |||||
|
08
|
08
5H0-11161-00-00 Absorber 1 |
5H0-11161-00-00 |
from US $2.02 |
||
