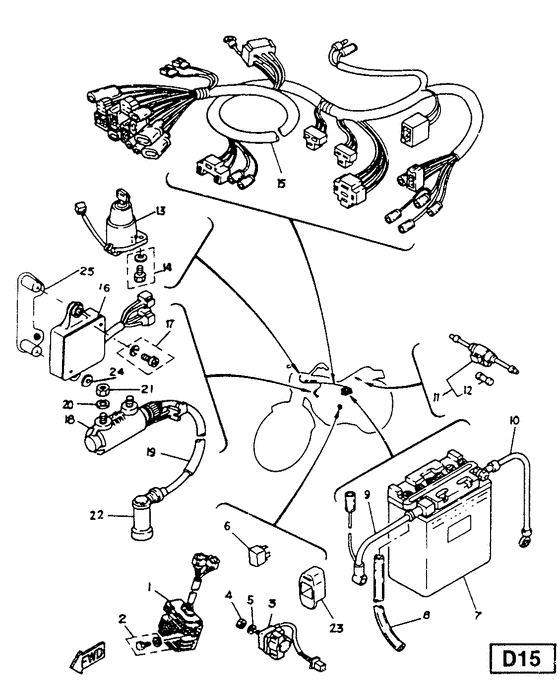

Electrical 1 Diagram Yamaha SR125
- Year
- 1988
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 2JW
- Sales region
- Spain (999)
- Engine Capacity
- 125
- Model
- SR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5H0-81960-A0-00
Rectifier/reg Assembly
|
5H0-81960-A0-00 |
— | ||
|
02
|
02
97501-06216-00
Bolt, With Washer
|
97501-06216-00 |
— | ||
| replacement | |||||
|
02
|
02
97501-06516-00
Bolt, With Washer
|
97501-06516-00 |
— | ||
|
03
|
03
3AY-81940-00-00
Starter Relay Assy (Ms5D-611)
|
3AY-81940-00-00 |
— | ||
| replacement | |||||
|
03
|
03
4KD-81940-00-00 Starter Relay Assy (Ms5D-611) |
4KD-81940-00-00 |
from US $97.54 |
||
|
04
|
04
95302-06700-00 Nut, Hexagon |
95302-06700-00 |
from US $1.42 |
||
| replacements | |||||
|
04
|
04
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
04
|
04
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
|
05
|
05
92902-06100-00 Washer, Spring |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
05
|
05
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
06
|
06
21L-H1950-00-00
Relay Assy
|
21L-H1950-00-00 |
— | ||
|
07
|
07
2JW-H2110-00-00
Battery Assy
|
2JW-H2110-00-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
904-45083-36-00
Hose (L1500)
|
904-45083-36-00 |
— | ||
| replacement | |||||
|
08
|
08
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
09
|
09
21L-H2115-00-00
Wire, Plus Lead
|
21L-H2115-00-00 |
— | ||
|
10
|
10
21L-H2116-00-00
Wire, Minus Lead
|
21L-H2116-00-00 |
— | ||
|
11
|
11
21L-H2150-00-00
Fuse Holder Assy
|
21L-H2150-00-00 |
— | ||
|
12
|
12
21L-H2151-00-00
Fuse
|
21L-H2151-00-00 |
— | ||
| replacement | |||||
|
12
|
12
1A0-82161-00-00 Fuse (12V-20A) |
1A0-82161-00-00 |
from US $11.96 |
||
|
13
|
13
2JW-H2510-00-00
Main Switch Assy
|
2JW-H2510-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
97602-04312-00 Screw, Pan Head |
97602-04312-00 |
from US $1.07 |
||
| replacements | |||||
|
14
|
14
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
14
|
14
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
15
|
15
2JW-H2590-00-00
Wire Harness Assy
|
2JW-H2590-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
5H0-82305-M0-00 Ignitor Unit Assembly 1 |
5H0-82305-M0-00 |
US $722 |
||
|
17
|
17
97602-06120-00
Screw, Pan Head W/washer
|
97602-06120-00 |
— | ||
| replacements | |||||
|
17
|
17
976-02061-20-09
Screw, Pan Head With Washer
|
976-02061-20-09 |
— | ||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
3Y6-82310-60-00
Ignition Coil Assy
|
3Y6-82310-60-00 |
— | ||
| replacement | |||||
|
18
|
18
4GR-81958-00-00
Ignition Coil Assy
|
4GR-81958-00-00 |
— | ||
|
19
|
19
21L-H2341-00-00
Cord, High Tension 1
|
21L-H2341-00-00 |
— | ||
|
20
|
20
92902-06100-00 Washer, Spring |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
21
|
21
95302-06600-00 Nut, Hexagon |
95302-06600-00 |
US $1.07 |
||
| replacement | |||||
|
21
|
21
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
22
|
22
2JW-H2370-00-00
Plug Cap Assy
|
2JW-H2370-00-00 |
— | ||
|
23
|
23
21L-H1952-00-00
Holder, Relay
|
21L-H1952-00-00 |
— | ||
|
24
|
24
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
25
|
25
2JW-H2388-00-00
Plate
|
2JW-H2388-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
