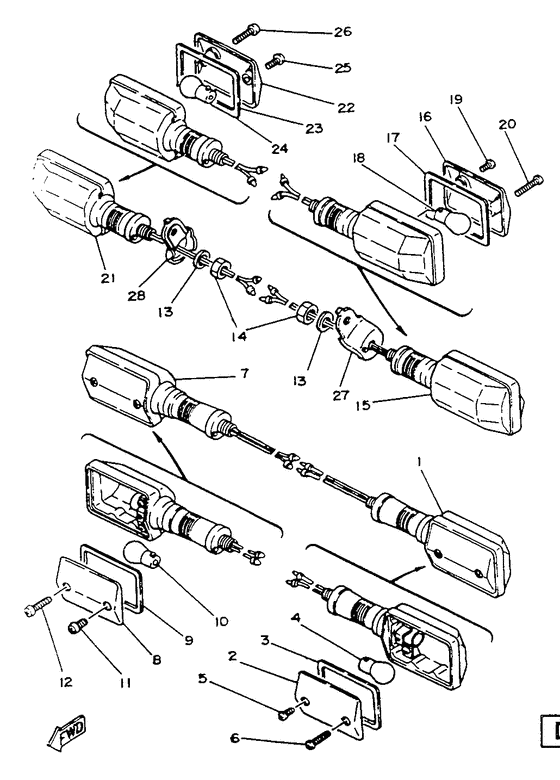

Intermitentes Diagram Yamaha SR125
- Year
- 1988
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 2JW
- Sales region
- Spain (999)
- Engine Capacity
- 125
- Model
- SR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
21L-H3310-00-00
Front Flasher Light Assy 1
|
21L-H3310-00-00 |
— | ||
| replacement | |||||
|
01
|
01
5Y3-83310-21-00 Front Flasher Light Assy 1 |
5Y3-83310-21-00 |
US $90.22 |
||
|
02
|
02
5T8-H3312-V0-00
Lens, Flasher
|
5T8-H3312-V0-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
5T8-H3313-00-00
Gasket, Flasher Lens
|
5T8-H3313-00-00 |
— | ||
|
04
|
04
21L-H3311-00-00
Bulb, Flasher
|
21L-H3311-00-00 |
— | ||
|
05
|
05
98501-04010-00 Screw, Pan Head |
98501-04010-00 |
US $1.07 |
||
| replacement | |||||
|
05
|
05
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
06
|
06
97701-40530-00 Screw, Tapping |
97701-40530-00 |
from US $2.27 |
||
| replacement | |||||
|
06
|
06
97707-40630-00 Screw, Tapping(3Ah) |
97707-40630-00 |
from US $2.50 |
||
|
07
|
07
21L-H3320-00-00
Front Flasher Light Assy 2
|
21L-H3320-00-00 |
— | ||
| replacement | |||||
|
07
|
07
5Y3-83310-21-00 Front Flasher Light Assy 1 |
5Y3-83310-21-00 |
US $90.22 |
||
|
08
|
08
5T8-H3312-V0-00
Lens, Flasher
|
5T8-H3312-V0-00 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
5T8-H3313-V0-00
Gasket, Flasher Lens
|
5T8-H3313-V0-00 |
— | ||
| replacement | |||||
|
09
|
09
5Y1-83313-00-00 Gasket, Flasher Lens |
5Y1-83313-00-00 |
from US $4.53 |
||
|
10
|
10
21L-H3311-00-00
Bulb, Flasher
|
21L-H3311-00-00 |
— | ||
|
11
|
11
98501-04010-00 Screw, Pan Head |
98501-04010-00 |
US $1.07 |
||
| replacement | |||||
|
11
|
11
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
12
|
12
97701-40530-00 Screw, Tapping |
97701-40530-00 |
from US $2.27 |
||
| replacement | |||||
|
12
|
12
97707-40630-00 Screw, Tapping(3Ah) |
97707-40630-00 |
from US $2.50 |
||
|
13
|
13
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
14
|
14
95301-12600-00 Nut |
95301-12600-00 |
from US $2.13 |
||
| replacement | |||||
|
14
|
14
95304-12600-00 Nut |
95304-12600-00 |
from US $2.13 |
||
|
15
|
15
21L-H3330-00-00
Rear Flasher Light Assy 1
|
21L-H3330-00-00 |
— | ||
|
16
|
16
5T8-H3312-V0-00
Lens, Flasher
|
5T8-H3312-V0-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
5T8-H3313-V0-00
Gasket, Flasher Lens
|
5T8-H3313-V0-00 |
— | ||
| replacement | |||||
|
17
|
17
5Y1-83313-00-00 Gasket, Flasher Lens |
5Y1-83313-00-00 |
from US $4.53 |
||
|
18
|
18
21L-H3311-00-00
Bulb, Flasher
|
21L-H3311-00-00 |
— | ||
|
19
|
19
98501-04010-00 Screw, Pan Head |
98501-04010-00 |
US $1.07 |
||
| replacement | |||||
|
19
|
19
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
20
|
20
97701-40530-00 Screw, Tapping |
97701-40530-00 |
from US $2.27 |
||
| replacement | |||||
|
20
|
20
97707-40630-00 Screw, Tapping(3Ah) |
97707-40630-00 |
from US $2.50 |
||
|
21
|
21
21L-H3340-00-00
Rear Flasher Light Assy 2
|
21L-H3340-00-00 |
— | ||
| replacement | |||||
|
21
|
21
37A-83330-21-00 Rear Flasher Light Assembly 1 |
37A-83330-21-00 |
from US $75.99 |
||
|
22
|
22
5T8-H3312-V0-00
Lens, Flasher
|
5T8-H3312-V0-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
5T8-H3313-V0-00
Gasket, Flasher Lens
|
5T8-H3313-V0-00 |
— | ||
| replacement | |||||
|
23
|
23
5Y1-83313-00-00 Gasket, Flasher Lens |
5Y1-83313-00-00 |
from US $4.53 |
||
|
24
|
24
21L-H3311-00-00
Bulb, Flasher
|
21L-H3311-00-00 |
— | ||
|
25
|
25
98501-04010-00 Screw, Pan Head |
98501-04010-00 |
US $1.07 |
||
| replacement | |||||
|
25
|
25
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
26
|
26
97701-40530-00 Screw, Tapping |
97701-40530-00 |
from US $2.27 |
||
| replacement | |||||
|
26
|
26
97707-40630-00 Screw, Tapping(3Ah) |
97707-40630-00 |
from US $2.50 |
||
|
27
|
27
21L-H3368-00-00
Stay, Flasher 1
|
21L-H3368-00-00 |
— | ||
|
28
|
28
21L-H3369-00-00
Stay, Flasher 2
|
21L-H3369-00-00 |
— | ||
