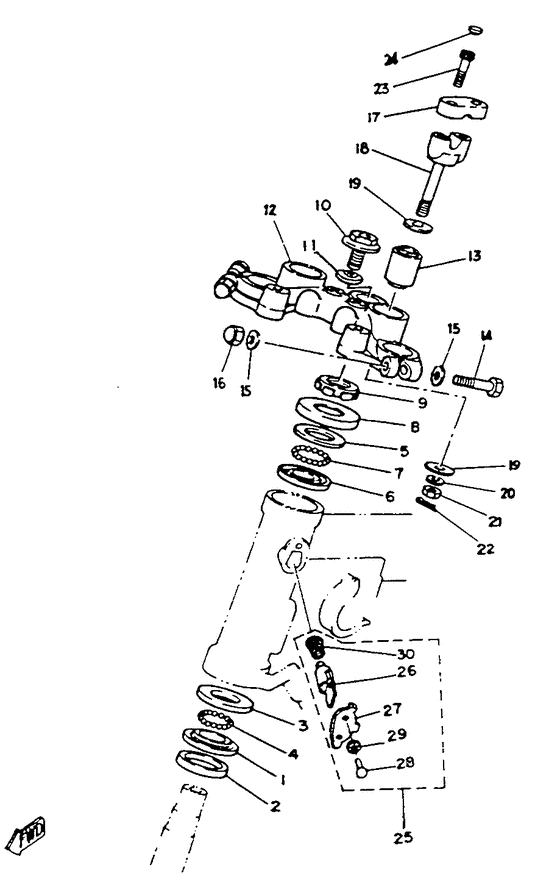

Steering Diagram Yamaha SR125
- Year
- 1988
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 2JW
- Sales region
- Spain (999)
- Engine Capacity
- 125
- Model
- SR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
01
|
01
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
02
|
02
21L-F3462-00-00 Seal, Dust |
21L-F3462-00-00 |
US $4.11 |
||
|
03
|
03
156-23142-00-00
Seat, Spring Upper
|
156-23142-00-00 |
— | ||
|
04
|
04
94501-04011-00
Chain
|
94501-04011-00 |
— | ||
|
05
|
05
183-23411-00-00
Race, Ball 1
|
183-23411-00-00 |
— | ||
| replacement | |||||
|
05
|
05
4FP-F3411-20-00 Race, Ball 1 |
4FP-F3411-20-00 |
from US $6.94 |
||
|
06
|
06
183-23412-00-00
Race, Ball 2
|
183-23412-00-00 |
— | ||
| replacements | |||||
|
06
|
06
4FP-F3412-10-00 Race, Ball 2 |
4FP-F3412-10-00 |
from US $6.19 |
||
|
06
|
06
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
06
|
06
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
07
|
07
94501-04011-00
Chain
|
94501-04011-00 |
— | ||
|
08
|
08
21L-F3415-00-00
Cover, Ball Race 1
|
21L-F3415-00-00 |
— | ||
|
09
|
09
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
09
|
09
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
09
|
09
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
10
|
10
90105-14060-00 Bolt, Washer BasedBolt,hexagon |
90105-14060-00 |
from US $4.11 |
||
| replacement | |||||
|
10
|
10
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
11
|
11
90201-14831-00
Washer, Plate
|
90201-14831-00 |
— | ||
|
12
|
12
21L-F3435-00-98
Crown, Handle
Negra |
21L-F3435-00-98 |
— | ||
|
13
|
13
3Y6-23434-00-00 Holder, Pamper |
3Y6-23434-00-00 |
from US $22.72 |
||
| replacement | |||||
|
13
|
13
3Y6-23434-01-00 Holder, Damper |
3Y6-23434-01-00 |
from US $28.57 |
||
|
14
|
14
97323-08055-00 Bolt |
97323-08055-00 |
US $5.24 |
||
| replacement | |||||
|
14
|
14
97013-08055-00 Bolt |
97013-08055-00 |
from US $3.55 |
||
|
15
|
15
90201-08366-00 Washer, Plate |
90201-08366-00 |
from US $2.13 |
||
| replacement | |||||
|
15
|
15
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
16
|
16
2JW-F3357-00-00
Nut
|
2JW-F3357-00-00 |
— | ||
|
17
|
17
21L-F3441-00-98
Holder, Handle Upper
Negro |
21L-F3441-00-98 |
— | ||
|
18
|
18
21L-F3442-00-98
Holder, Handle Lower
Negro |
21L-F3442-00-98 |
— | ||
|
19
|
19
902-01101-41-00
Washer, Plate
|
902-01101-41-00 |
— | ||
| replacement | |||||
|
19
|
19
90201-100A1-00 Washer, Plate (3J6) |
90201-100A1-00 |
from US $2.70 |
||
|
20
|
20
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
20
|
20
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
21
|
21
95301-10700-00 Nut |
95301-10700-00 |
US $7.37 |
||
| replacements | |||||
|
21
|
21
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
21
|
21
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
|
22
|
22
90468-12006-00 Clip |
90468-12006-00 |
from US $1.84 |
||
|
23
|
23
913-16080-30-00
Bolt
|
913-16080-30-00 |
— | ||
| replacement | |||||
|
23
|
23
913-17080-30-00 Bolt |
913-17080-30-00 |
from US $1.07 |
||
|
24
|
24
21L-F3469-00-00 Cap, Bolt |
21L-F3469-00-00 |
US $1.56 |
||
|
25
|
25
5T8-F3480-00-00
Steering Lock Assy
|
5T8-F3480-00-00 |
— | ||
| replacement | |||||
|
25
|
25
4CT-F3482-00-00
Body & Key, Steering Lock
|
4CT-F3482-00-00 |
— | ||
|
26
|
26
5T8-F3482-00-00
Body & Key, Steering Lock
|
5T8-F3482-00-00 |
— | ||
| replacement | |||||
|
26
|
26
4CT-F3482-00-00
Body & Key, Steering Lock
|
4CT-F3482-00-00 |
— | ||
|
27
|
27
5T8-F3484-00-00
Cap, Handle Lock
|
5T8-F3484-00-00 |
— | ||
|
28
|
28
90269-04800-00
Rivet
|
90269-04800-00 |
— | ||
|
29
|
29
90208-04802-00
Washer, Conical Spring
|
90208-04802-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
5T8-F3485-00-00
Plate, Number
|
5T8-F3485-00-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
