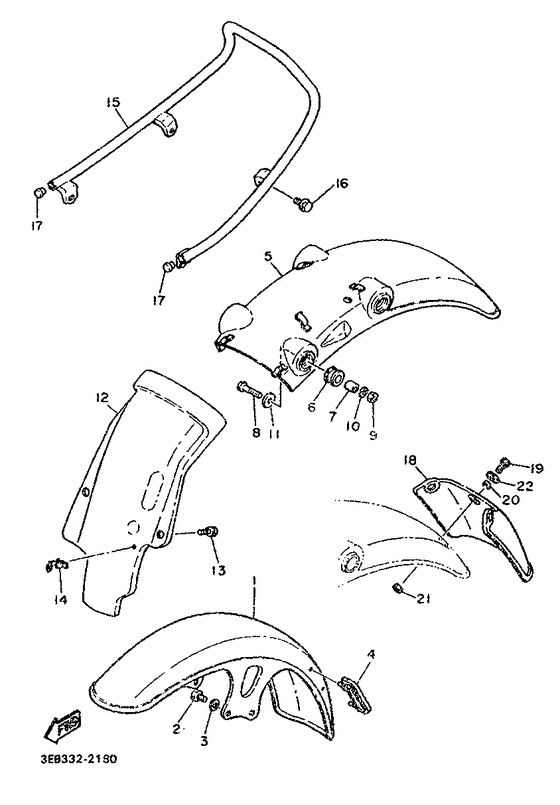

Fender Diagram Yamaha SR500
- Year
- 1992
- Colour
- Bluish Dark Silver (BDS; 00JX)
- Model code
- 3EB4
- Sales region
- Germany (999)
- Engine Capacity
- 500
- Model
- SR500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1JN-21510-00-93
Front Fender
Chrome plated |
1JN-21510-00-93 |
— | ||
| replacement | |||||
|
01
|
01
1JN-21510-20-93 Front FenderChrome plated |
1JN-21510-20-93 |
from US $248.38 |
||
|
02
|
02
97001-08020-00 Bolt |
97001-08020-00 |
from US $2.13 |
||
| replacement | |||||
|
02
|
02
97017-08020-00 Bolt |
97017-08020-00 |
from US $2.13 |
||
|
03
|
03
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
04
|
04
3Y6-21518-00-00 Holder, Cable |
3Y6-21518-00-00 |
from US $7.65 |
||
|
05
|
05
2J4-21610-10-00
Rear Fender Comp
|
2J4-21610-10-00 |
— | ||
|
06
|
06
168-21639-00-00 Damper 2 |
168-21639-00-00 |
from US $9.49 |
||
|
07
|
07
903-87082-58-00 Collar |
903-87082-58-00 |
from US $3.40 |
||
|
08
|
08
97313-08035-00 Bolt |
97313-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
08
|
08
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
09
|
09
95303-08600-00 Nut |
95303-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
09
|
09
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
09
|
09
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
10
|
10
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
11
|
11
90201-085E6-00 Washer Plate |
90201-085E6-00 |
from US $4.39 |
||
|
12
|
12
2J2-21629-01-00 Guard, Mud |
2J2-21629-01-00 |
from US $57.89 |
||
|
13
|
13
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
13
|
13
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.52 |
||
|
13
|
13
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
14
|
14
90464-08020-00 Clamp |
90464-08020-00 |
from US $1.98 |
||
|
15
|
15
48U-21645-00-00
Stay, Rear
|
48U-21645-00-00 |
— | ||
|
16
|
16
95023-08016-00 Bolt, Flange |
95023-08016-00 |
US $1.98 |
||
| replacement | |||||
|
16
|
16
95024-08016-00 Bolt, Flange (Small Head) |
95024-08016-00 |
from US $2.22 |
||
|
17
|
17
1J3-24742-00-00 Grommet |
1J3-24742-00-00 |
from US $4.82 |
||
|
18
|
18
2J4-21621-10-00
Flap
|
2J4-21621-10-00 |
— | ||
|
19
|
19
97003-06016-00 Bolt |
97003-06016-00 |
US $1.28 |
||
| replacements | |||||
|
19
|
19
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
19
|
19
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
20
|
20
903-87060-22-00
Collar
|
903-87060-22-00 |
— | ||
| replacement | |||||
|
20
|
20
903-87061-06-00 Collar |
903-87061-06-00 |
from US $1.81 |
||
|
21
|
21
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
22
|
22
90201-06697-00 Washer, Plate |
90201-06697-00 |
from US $2.08 |
||
