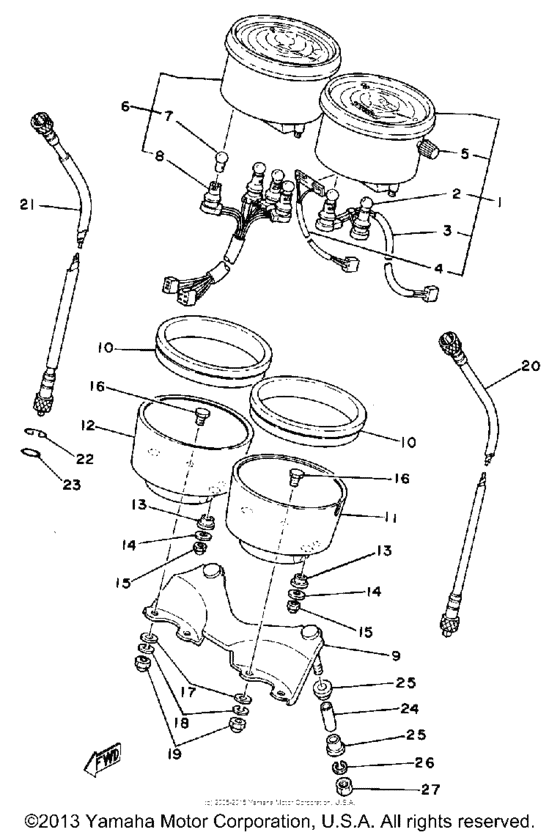

Speedometer & tachometer Diagram Yamaha SR500
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 500
- Model
- SR500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3H1-83570-A1-00
Speedometer Assembly
|
3H1-83570-A1-00 |
— | ||
|
2
|
2
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
2
|
2
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
3
|
3
3H1-83536-00-00
Socket, Meter
|
3H1-83536-00-00 |
— | ||
|
4
|
4
2J2-83556-00-00
Sender
|
2J2-83556-00-00 |
— | ||
|
5
|
5
584-83578-71-00 Knob, Trip Meter |
584-83578-71-00 |
from US $14.17 |
||
| replacement | |||||
|
5
|
5
4SV-83578-00-00 Knob, Trip Meter |
4SV-83578-00-00 |
from US $14.17 |
||
|
6
|
6
3H1-83540-00-00
Tachometer Assembly
|
3H1-83540-00-00 |
— | ||
|
7
|
7
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
7
|
7
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
8
|
8
3H1-83520-00-00
Socket Cord Assembly
|
3H1-83520-00-00 |
— | ||
|
9
|
9
2J2-83519-00-00 Bracket, Meter |
2J2-83519-00-00 |
from US $41.74 |
||
|
10
|
10
3H3-83513-01-00
New Genuine Part
IN PRICE BOOK |
3H3-83513-01-00 |
— | ||
|
11
|
11
2J2-83507-00-00 Cover, Speedometer |
2J2-83507-00-00 |
from US $52.78 |
||
|
12
|
12
2J2-83508-00-00 Cover, Tachometer |
2J2-83508-00-00 |
from US $50.65 |
||
|
13
|
13
584-83523-00-00 Damper |
584-83523-00-00 |
from US $8.36 |
||
| replacement | |||||
|
13
|
13
21L-H3523-10-00
Damper
|
21L-H3523-10-00 |
— | ||
|
14
|
14
90201-05031-00 Washer, Plate |
90201-05031-00 |
from US $1.70 |
||
| replacements | |||||
|
14
|
14
90201-05725-00 Washer, Plate |
90201-05725-00 |
from US $1.70 |
||
|
14
|
14
90201-05043-00 Washer, Plate |
90201-05043-00 |
from US $1.70 |
||
|
15
|
15
95303-05800-00 Nut (Crown) |
95303-05800-00 |
US $1.56 |
||
| replacement | |||||
|
15
|
15
953-04058-00-00 Nut |
953-04058-00-00 |
from US $1.56 |
||
|
16
|
16
584-83546-00-00 Bolt |
584-83546-00-00 |
from US $2.98 |
||
|
17
|
17
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
19
|
19
95303-06800-00 Nut |
95303-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.18 |
||
|
20
|
20
34X-83550-01-00
Spdmtr, Cable
|
34X-83550-01-00 |
— | ||
| replacement | |||||
|
20
|
20
16M-83550-01-00 Speedometer Cable Assy |
16M-83550-01-00 |
from US $48.55 |
||
|
21
|
21
2J2-83560-00-00 Tachometer Cable Assy |
2J2-83560-00-00 |
from US $17.96 |
||
| replacement | |||||
|
21
|
21
2J2-83560-10-00 Tachometer Cable Assy |
2J2-83560-10-00 |
from US $21.60 |
||
|
22
|
22
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
|
23
|
23
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
23
|
23
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
|
24
|
24
90387-06676-00 Collar |
90387-06676-00 |
from US $3.10 |
||
|
25
|
25
1JK-83541-00-00 Damper |
1JK-83541-00-00 |
from US $7.23 |
||
|
26
|
26
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
27
|
27
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
