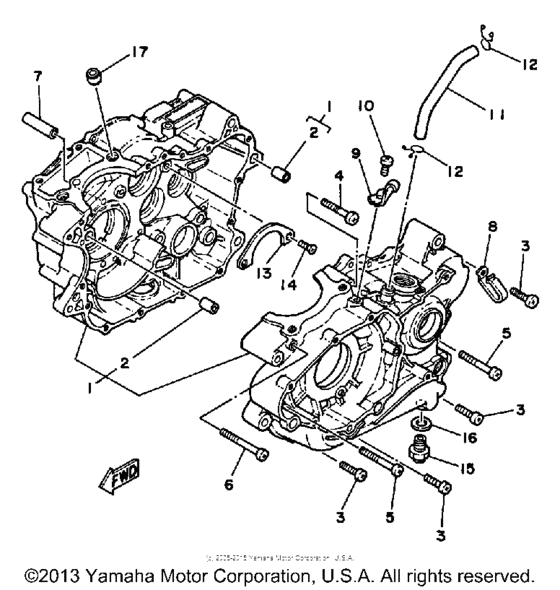

Crankcase Diagram Yamaha SRX250
- Year
- 1987
- Sales region
- USA
- Engine Capacity
- 250
- Model
- SRX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51Y-15100-04-00
Crankcase Assembly
|
51Y-15100-04-00 |
— | ||
|
2
|
2
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
2
|
2
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
3
|
3
98516-06030-00 Screw, Pan Head |
98516-06030-00 |
US $2.13 |
||
| replacement | |||||
|
3
|
3
98517-06030-00 Screw, Pan Head |
98517-06030-00 |
from US $1.70 |
||
|
4
|
4
985-06060-50-00
Screw Pan Head
|
985-06060-50-00 |
— | ||
| replacement | |||||
|
4
|
4
98507-06050-00 Screw, Pan Head |
98507-06050-00 |
from US $1.66 |
||
|
5
|
5
98506-06060-00 Screw Pan Head |
98506-06060-00 |
from US $1.42 |
||
| replacement | |||||
|
5
|
5
98507-06060-00 Screw, Pan Head |
98507-06060-00 |
from US $1.42 |
||
|
6
|
6
98506-06070-00 Screw Pan Head |
98506-06070-00 |
from US $1.21 |
||
| replacement | |||||
|
6
|
6
98507-06070-00 Screw, Pan Head |
98507-06070-00 |
from US $1.21 |
||
|
7
|
7
90441-06004-00 Tube, Piping |
90441-06004-00 |
US $7.88 |
||
|
8
|
8
90465-08277-00 Clamp(51Y) |
90465-08277-00 |
from US $4.11 |
||
|
9
|
9
51Y-15441-00-00 Holder, Clutch Cable |
51Y-15441-00-00 |
US $15.16 |
||
|
10
|
10
985-06060-16-00
Screw Pan Head
|
985-06060-16-00 |
— | ||
| replacement | |||||
|
10
|
10
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
11
|
11
51Y-11166-00-00
Pipe, Breather 1
|
51Y-11166-00-00 |
— | ||
|
12
|
12
90467-14015-00 Clip |
90467-14015-00 |
from US $1.81 |
||
|
13
|
13
30X-15383-00-00
Plate, Bearing Cover
|
30X-15383-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
98701-06014-00 Screw Flat Head |
98701-06014-00 |
from US $2.27 |
||
| replacements | |||||
|
14
|
14
98707-06014-00 Screw, Flat |
98707-06014-00 |
from US $2.27 |
||
|
14
|
14
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.56 |
||
|
15
|
15
3VD-13455-00-00 Plug, Straight Screw |
3VD-13455-00-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
903-40141-32-00 Plug, Straight Screw |
903-40141-32-00 |
from US $1.66 |
||
|
16
|
16
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $2.02 |
||
|
17
|
17
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.66 |
||
