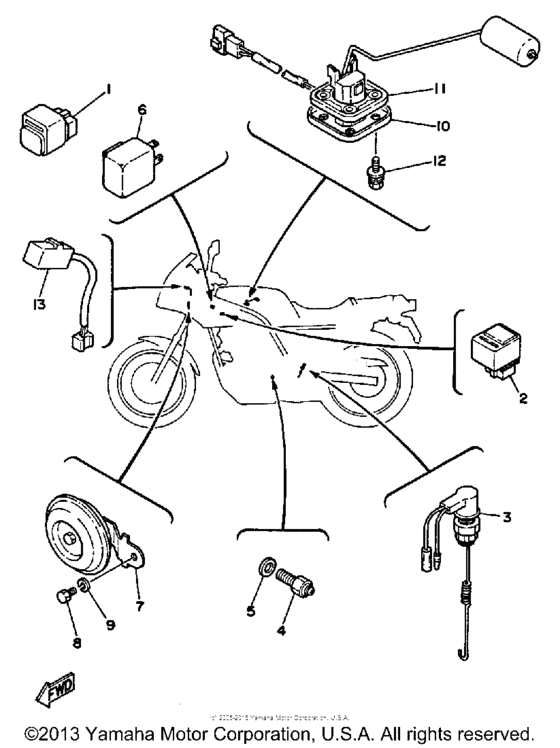

Electrical (2) Diagram Yamaha SRX250
- Year
- 1987
- Sales region
- USA
- Engine Capacity
- 250
- Model
- SRX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12R-81950-01-00 Relay Assy (12R-01)12R-01 |
12R-81950-01-00 |
from US $57.75 |
||
| replacement | |||||
|
1
|
1
12R-81950-02-00 RELAY ASSY12R-01 |
12R-81950-02-00 |
from US $53.20 |
||
|
2
|
2
4U8-81950-02-00 Relay Assy (4U8-02)4U8-02 FOR SIDE STAND |
4U8-81950-02-00 |
from US $83.86 |
||
| replacement | |||||
|
2
|
2
4U8-81950-03-00 Relay Assy4U8-02 FOR SIDE STAND |
4U8-81950-03-00 |
US $97.13 |
||
|
3
|
3
22F-82530-02-00 Stop Switch Assembly |
22F-82530-02-00 |
US $49.77 |
||
|
4
|
4
2H7-82540-00-00
Neutral Switch Assy
|
2H7-82540-00-00 |
— | ||
| replacements | |||||
|
4
|
4
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
4
|
4
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $26.22 |
||
|
5
|
5
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
|
6
|
6
2NV-83350-00-00
Flasher Relay Assy
|
2NV-83350-00-00 |
— | ||
|
7
|
7
51Y-83371-20-00 Horn |
51Y-83371-20-00 |
US $64.93 |
||
| replacement | |||||
|
7
|
7
30X-83371-20-00
Horn
|
30X-83371-20-00 |
— | ||
|
8
|
8
97026-06010-00 Bolt (97006-06010-00) |
97026-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
|
9
|
9
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
10
|
10
51Y-85752-00-00
Sndr Ut Assembly, F/mtrfuel Met
UT ASSEMBLY, F/MTRFUEL MET |
51Y-85752-00-00 |
— | ||
|
11
|
11
5G3-85753-00-00 Gasket, Sender Unit |
5G3-85753-00-00 |
from US $5.58 |
||
|
12
|
12
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
|
13
|
13
1A0-83395-03-00
Flasher Cancel Unit
|
1A0-83395-03-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
