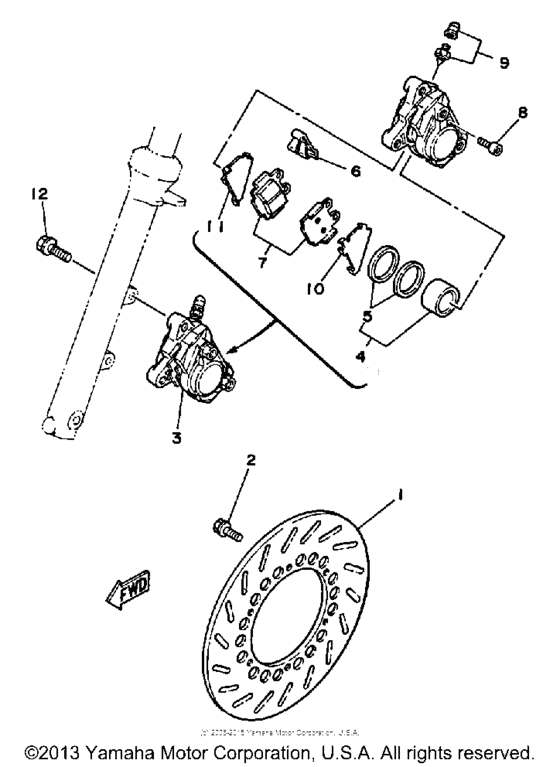

Front brake caliper Diagram Yamaha SRX250
- Year
- 1987
- Sales region
- USA
- Engine Capacity
- 250
- Model
- SRX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51Y-25831-00-00 Disc, Brake (Right) |
51Y-25831-00-00 |
from US $374.74 |
||
| replacement | |||||
|
1
|
1
3JK-25831-00-00 Disc, BrakeDisc, brake (right) |
3JK-25831-00-00 |
from US $388.17 |
||
|
2
|
2
901-09087-18-00
Bolt,hex. Socket But
|
901-09087-18-00 |
— | ||
| replacement | |||||
|
2
|
2
90111-08084-00 Bolt,hex. Socket Button |
90111-08084-00 |
from US $5.81 |
||
|
3
|
3
51Y-25810-01-00 Caliper Assembly |
51Y-25810-01-00 |
US $200.09 |
||
|
4
|
4
51L-W0057-00-00 Piston Assembly, Caliper |
51L-W0057-00-00 |
from US $136.92 |
||
|
5
|
5
51L-W0047-11-00 Caliper Seal Kit |
51L-W0047-11-00 |
from US $55.40 |
||
|
6
|
6
51L-25919-00-00 Support, Pad |
51L-25919-00-00 |
from US $27.34 |
||
|
7
|
7
51L-W0046-02-00 Brake Pad Kit 2 |
51L-W0046-02-00 |
from US $46.71 |
||
| replacement | |||||
|
7
|
7
4AP-W0046-00-00 Brake Pad Kit 2 |
4AP-W0046-00-00 |
from US $53.75 |
||
|
8
|
8
51L-25924-00-00 Pin, Pad |
51L-25924-00-00 |
from US $17.91 |
||
| replacement | |||||
|
8
|
8
4FL-25924-00-00 Pin, Pad |
4FL-25924-00-00 |
from US $22.95 |
||
|
9
|
9
51L-W0048-00-00
Bleed Screw Kit
|
51L-W0048-00-00 |
— | ||
| replacement | |||||
|
9
|
9
15B-W0048-00-00 Bleed Screw Kit |
15B-W0048-00-00 |
from US $9.29 |
||
|
10
|
10
51L-25827-00-00 Shim, Caliper |
51L-25827-00-00 |
from US $17.43 |
||
| replacements | |||||
|
10
|
10
4BP-25827-00-00 Shim, Caliper |
4BP-25827-00-00 |
from US $17.71 |
||
|
10
|
10
47X-25827-00-00 Shim, Caliper |
47X-25827-00-00 |
from US $17.43 |
||
|
11
|
11
51L-25827-10-00 Shim, Caliper |
51L-25827-10-00 |
from US $17.43 |
||
| replacements | |||||
|
11
|
11
4BP-25827-00-00 Shim, Caliper |
4BP-25827-00-00 |
from US $17.71 |
||
|
11
|
11
47X-25827-10-00 Shim, Caliper |
47X-25827-10-00 |
from US $16.33 |
||
|
12
|
12
901-05106-38-00 Bolt, Flange |
901-05106-38-00 |
from US $2.35 |
||
