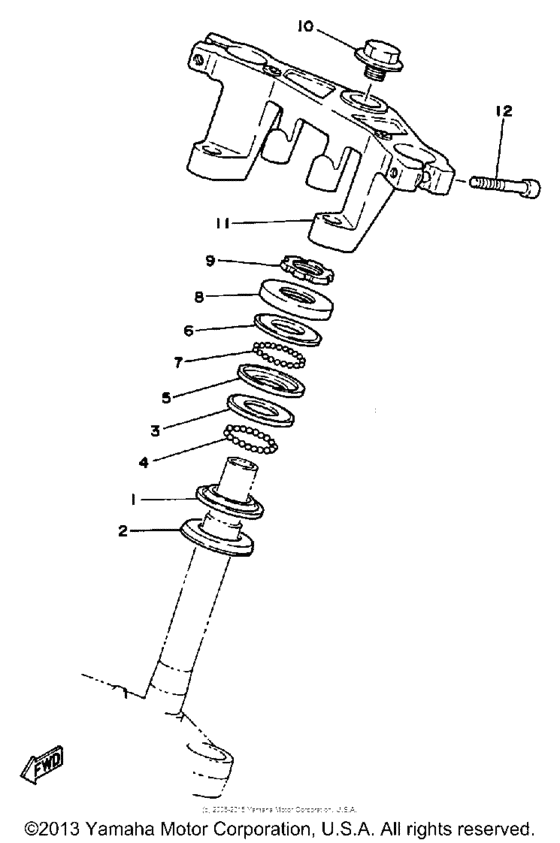

Steering Diagram Yamaha SRX250
- Year
- 1987
- Sales region
- USA
- Engine Capacity
- 250
- Model
- SRX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
1
|
1
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
2
|
2
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.72 |
||
|
3
|
3
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
4
|
4
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
5
|
5
183-23411-00-00
Race, Ball 1
|
183-23411-00-00 |
— | ||
| replacement | |||||
|
5
|
5
4FP-F3411-20-00 Race, Ball 1 |
4FP-F3411-20-00 |
from US $6.94 |
||
|
6
|
6
183-23412-00-00
Race, Ball 2
|
183-23412-00-00 |
— | ||
| replacements | |||||
|
6
|
6
4FP-F3412-10-00 Race, Ball 2 |
4FP-F3412-10-00 |
from US $6.19 |
||
|
6
|
6
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
6
|
6
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
7
|
7
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
8
|
8
136-23415-00-00 Cover, Ball Race 1 |
136-23415-00-00 |
from US $3.26 |
||
|
9
|
9
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
9
|
9
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
9
|
9
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
10
|
10
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
11
|
11
51Y-23435-00-00 Crown, Handle |
51Y-23435-00-00 |
US $125.98 |
||
|
12
|
12
913-11080-40-00
Bolt, Hexagon Socket Head
|
913-11080-40-00 |
— | ||
| replacement | |||||
|
12
|
12
91314-08040-00 Bolt, Hexagon Socket Head |
91314-08040-00 |
from US $3.26 |
||
