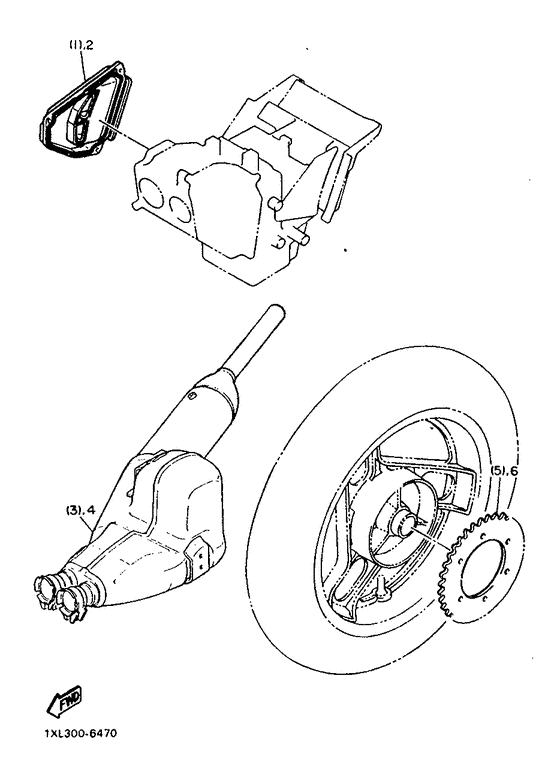

Engine 2 Diagram Yamaha SRX600
- Year
- 1986
- Colour
- Samson Blue (SSB; 00ME)
- Model code
- 1XW
- Sales region
- Switzerland (999)
- Engine Capacity
- 600
- Model
- SRX600
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1JK-14422-00-00
Cap, Cleaner Case 2
|
1JK-14422-00-00 |
— | ||
|
02
|
02
1XN-14422-00-00
Cap, Cleaner Case 2
|
1XN-14422-00-00 |
— | ||
|
03
|
03
1JK-14711-01-00
Muffler 1
|
1JK-14711-01-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
1XN-14711-00-00
Muffler 1
|
1XN-14711-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
1JK-25437-20-33 Sprocket, Driven (37T)Sprocket, driven (37z) |
1JK-25437-20-33 |
US $49.28 |
||
| replacement | |||||
|
05
|
05
1JK-25437-20-00 Sprocket, Drvn37T (1Jk-25437-20 |
1JK-25437-20-00 |
US $49.28 |
||
|
06
|
06
1XN-25436-20-33
Sprocket, Driven
|
1XN-25436-20-33 |
— | ||
| replacement | |||||
|
06
|
06
1XN-25436-20-00
Gear, Sprocket Wheel
|
1XN-25436-20-00 |
— | ||
